HUBER+SUHNER Optipack Universal OS2 or OM4 Multi-Fibre Breakout Cable are designed for internal or external use. Consisting of tubes containing 12 or 24 fibres, they are available for Singlemode OS2 or Multi Mode OM4 applications with fibre counts of 48, 72, 96, 144 or 288 fibres.

Add to quote
SKU: N/ACategories: , ,

HUBER+SUHNER Optipack Universal Breakout Cables

OS2 or OM4 Universal Breakout Cable for internal / external applications

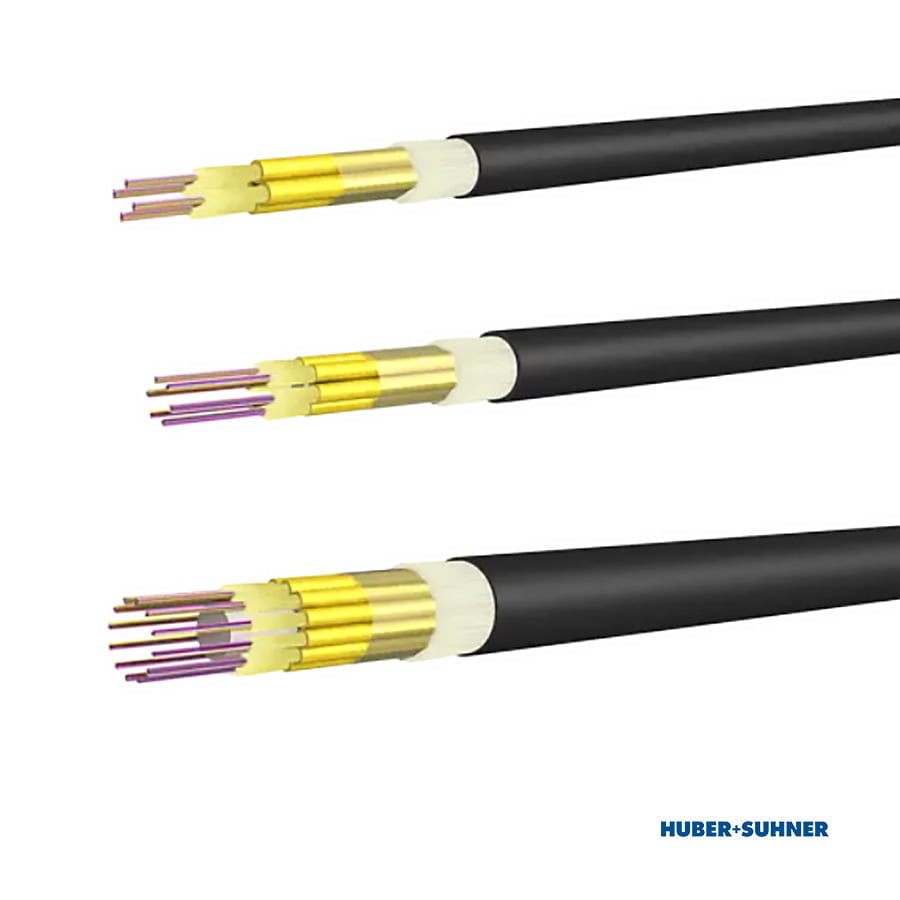

HUBER+SUHNER Optipack Universal breakout cables are multi-fibre cables for internal or external applications. Suitable for Singlemode OS2 or Multi Mode OM4 applications they are available with fibre counts of 48, 72, 96, 144 or 288 fibres. Fibres are either in tubes of 12 or 24; tubes with 12 fibres are 2mm whilst tubes with 24 fibres are 3mm.

These metal free indoor and outdoor cables have strain relief with glass rowing. Tubes can be stripped up to 1m in one piece. Their Black jacket colour is UV-protected for outdoor use, whilst they are also Low smoke, halogen free and self-extinguishing with a CPR rating of Cca, enabling them to also be used internally.  This makes them an ideal solution for applications transitioning from outside to inside.

They can be used in conjunction with HUBER+SUHNER’s MMR connectivity solutions as well as their advanced IANOS fibre optic management system, and is one of several fibre optic installation cables with HUBER+SUHNER’s range.

Features & Benefits

Features & Benefits

  • Multi-fibre breakout cable with tubes of 12 or 24 fibres.
  • Singlemode and Multi Mode versions with cable counts of 48, 72, 96, 144 or 288 fibres.
  • Metal free indoor and outdoor cable.
  • Strain relieved with glass rowing.
  • Tube can be stripped up to 1m in one piece.
  • UV-protected, suitable for outdoor use.
  • CPR rated, low smoke, halogen free and self-extinguishing

Specifications

Specifications

Construction

FibreQuantity48, 72, 96, 144 or 288
Strength MemberQuantity1 pcs
TypeCentral
Strain ReliefTypeAramide yarn
Inner JacketQuantity4, 6, 8 or 12 pcs
TypeFibre bundle
Diameter2mm (3mm on 288)
Strain ReliefTypeGlass-roving
Outer JacketMaterialLSFH
Diameter9.8mm, 10.8mm, 11.8mm, 12.4mm or 16mm



Environmental Data

CPR ClassStandardEN 50575:2014+A1:2016
ClassCca-s1a,d0,a1 (B2ca-s1a,d0,a1 on 288)
TemperatureStandardIEC 60794-1-22 F12
During Installation-10 °C … 50°C
In Service-40 °C … 70°C
In Storage-40 °C … 70°C
Flame PropagationStandardIEC 60332-1-2
ConditionOn a vertical single cable
Fire CharacteristicsStandardIEC 61034-2
ConditionJacket material
CharacteristicsDegree of acidity
StandardIEC 60754-1
ConditionJacket material
CharacteristicsHalogen acid gas
StandardIEC 60754-2
ConditionJacket material
Characteristics
Water PenetrationStandardIEC 60794-1-22 F5C
Conditionh_1m, 24h, p<3m



Mechanical Data*

* Data wil vary depending on exact cable. These figures are for guidance only accross the range of 48 to 288 fibres. For exact details please contact us.

Weightapprox. 130g/m to 244g/m
Tensile StrengthStandardIEC 60794-1-21 E1
During Installation9000 N
In Service400 N to 1200 N
Min. Bending RadiusStandardIEC 60794-1-21 E11
During Installation130mm to 240mm
In Service130mm to 240mm
Crush ResistanceStandardIEC 60794-1-21 E3
During Installation3000 N/dm
In Service1500 N/dm
Impact ResistanceStandardIEC 60794-1-21 E4
Energy2.21J
Cycles50

Part Numbers

Part Numbers

Singlemode OS2 Cables

Part No.Cable TypeDescription
8513789148-12E9A2/(ZN)SN(ZNG)H-G20#C48 Fibre, 9.8mm Singlemode Cable, Optipack Breakout, Internal/External, 4x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
8513797772-12E9A2/(ZN)SN(ZNG)H-G20#C72 Fibre, 10.8mm Singlemode Cable, Optipack Breakout, Internal/External, 6x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
8513797896-12E9A2/(ZN)SN(ZNG)H-G20#C96 Fibre, 11.8mm Singlemode Cable, Optipack Breakout, Internal/External, 8x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
85117733144-12E9A2/(ZN)SN(ZNG)H-G20#C144 Fibre, 12.4mm Singlemode Cable, Optipack Breakout, Internal/External, 12x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
85151966288-24E9A2/(ZN)SN(ZNG)H-G30#B288 Fibre, 16mm Singlemode Cable, Optipack Breakout, Internal/External, 12x Tubes, 24 Fibres Per Tube, Tube Diameter 3mm, CPR B2ca Rated, Black



Multi Mode OM4 Cables

Part No.Cable TypeDescription
8514633048-12G50/(ZN)SN(ZNG)H-G20-G#C48 Fibre, 9.8mm OM4 Multimode Cable, Optipack Breakout, Internal/External, 4x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
8514633172-12G50/(ZN)SN(ZNG)H-G20-G#C72 Fibre, 10.8mm OM4 Multimode Cable, Optipack Breakout, Internal/External, 6x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
8514633296-12G50/(ZN)SN(ZNG)H-G20-G#C96 Fibre, 11.8mm OM4 Multimode Cable, Optipack Breakout, Internal/External, 8x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
85146333144-12G50/(ZN)SN(ZNG)H-G20-G#C144 Fibre, 12.4mm OM4 Multimode Cable, Optipack Breakout, Internal/External, 12x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR Cca Rated, Black
On Request288-24G50/(ZN)SN(ZNG)H-G30-G#B288 Fibre, 16mm OM4 Multimode Cable, Optipack Breakout, Internal/External, 12x Tubes, 24 Fibres Per Tube, Tube Diameter 3mm, CPR B2ca Rated, Black
