HUBER+SUHNER OptiRibbon Cable is a 2×12 fibre ribbon cable providing 24 fibres in a B2ca CPR rated fibre cable.
HUBER+SUHNER OptiRibbon Fibre Cable
2x 12 Fibre LSFH – Ribbon Fibre Cable
HUBER+SUHNER OptiRibbon Fibre Cable enables a quicker way to install fibres as splicing can be preformed in a fraction of the time that it takes to splice single fibres.
The process of splicing fibre cables is a time consuming process, the introduction of HUBER+SUHNER OptiRibbon Fibre Cables enables faster mass fusion splicing, reducing downtime and maintenance in Data Centres. OptiRibbon can also be spliced using single fusion splicing as well.
Utilising Mass Fusion splicing times can be greatly reduced. The process of stripping, cleaning, cleaving, fusion, protection and coiling a 24 fibre cable using single splicing by an experienced technician takes approximately 45 minutes. The same process using mass splicing reduces this time to approximately 15 minutes.
The cable construction a fibre is compatible with the LiSA and IANOS fibre management system.

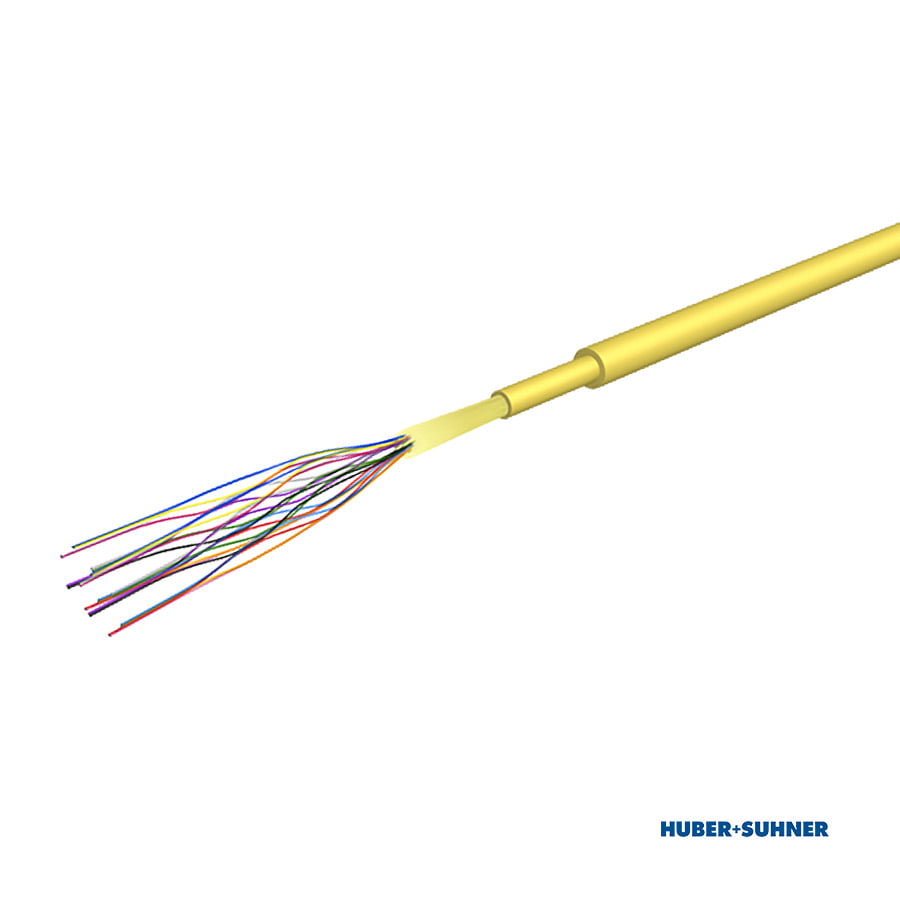

HUBER+SUHNER 24-2x12E9A2R/(ZN)HH-E30#B is a OptiRibbon Double Jacket fibre cable with 24 fibres. It has an inner jacket diameter of 3mm and an outer jacket diameter of 4.9mm. With 2 x 12 x 9/125µm G.657.A2 fibre it is LSFH and has a CPR rating of B2ca-s1a,do,a1. The cable jacket colour is yellow.
The round cable shape contains ribbon fibres that are periodically bonded forming a mesh style, and works as a standard ribbon.
OptiRibbon cables can be used in the Data Centre white space for inter-connect scenarios between equipment and switches or for cross-connects from the Optical Distribution Frame to the tenant’s edge equipment.
Features & Benefits
Features & Benefits
- Metal free indoor cable with OptiRibbon Fibres
- Strain relieved with aramide yarn
- Tube can be stripped up to 1m in one piece
- Fast splicing due to ribbon fibre technology
- Low smoke, halogen free and self-extinguishing
Specifications
Specifications
Construction
| Description / Material | Size | Options / Notice |
|---|---|---|
| 24 Optical fibre | 250 μm | Fibre type, colour |
| Reinforcement / aramide yarn | ||
| 1 Fibre bundle cable | 3.0 mm | Colour, inscription |
| 2 Reinforcement / aramide yarn | ||
| Outer jacket LSFH | 4.9 mm | Colour, inscription |
Mechanical Data
| Tested acc. to | Values | ||
|---|---|---|---|
| Weight | 32kg/km | ||
| Tensile Strength | During Installation | IEC 60794-1-21 E1 | 500N |
| In Service | 200N | ||
| Minimal Bending Radius | During Installation | IEC 60794-1-21 E11 | 20mm |
| In Service | 20mm | ||
| Crush Resistance | Short-therm | IEC 60794-1-21 E3 | 2000 N/dm |
| Long-therm | 100 N/dm | ||
| Impact Resistance | Wp = 0.5J | IEC 60794-1-21 E4 | 50 Impacts |
| Kink Resistance | Radius 10mm | IEC 60794-1-21 E10 | Passed |
Environmental Data
| Tested acc. to | Values | ||
|---|---|---|---|
| Temperature Range | During Installation | IEC 60794-1-22 F1 | -5 °C up to +50°C |
| In Service | -5 °C up to +50°C | ||
| In Storage | -25 °C up to +50°C | ||
| Fire Load | 0.7 MJ/m | ||
| Fire Propagation | On A Vertical Single Cable | IEC 60332-1-2 | Passed |
| Fire Test: Smoke Density | Jacket Material | IEC 61034-2 | Passed |
| Fire Test: Halogen Acid Gas | IEC 60754-1 | Halogen Free | |
| Fire Test: Degree of Acidity | IEC 60754-2 | Passed | |
| 2011/65/EC (RoHS – including 2015/863 and 2017/2102) | Compliant | ||
| EU No 305/2011 (CPR) | EN50575 | B2ca-s1a,d0,a1 | |
Specification for singlemode at 1550nm, for multimode at 1300nm
Part Numbers
Part Numbers
| Part Number | Cable Type | Description |
|---|---|---|
| 85226047 | 24-2x12E9A2R/(ZN)HH-E30#B | OptiRibbon-DJ double jacket cable Ø 3.0 / 4.9mm, 2 x 12 x 9/125µm G.657.A2, LSFH yellow |
