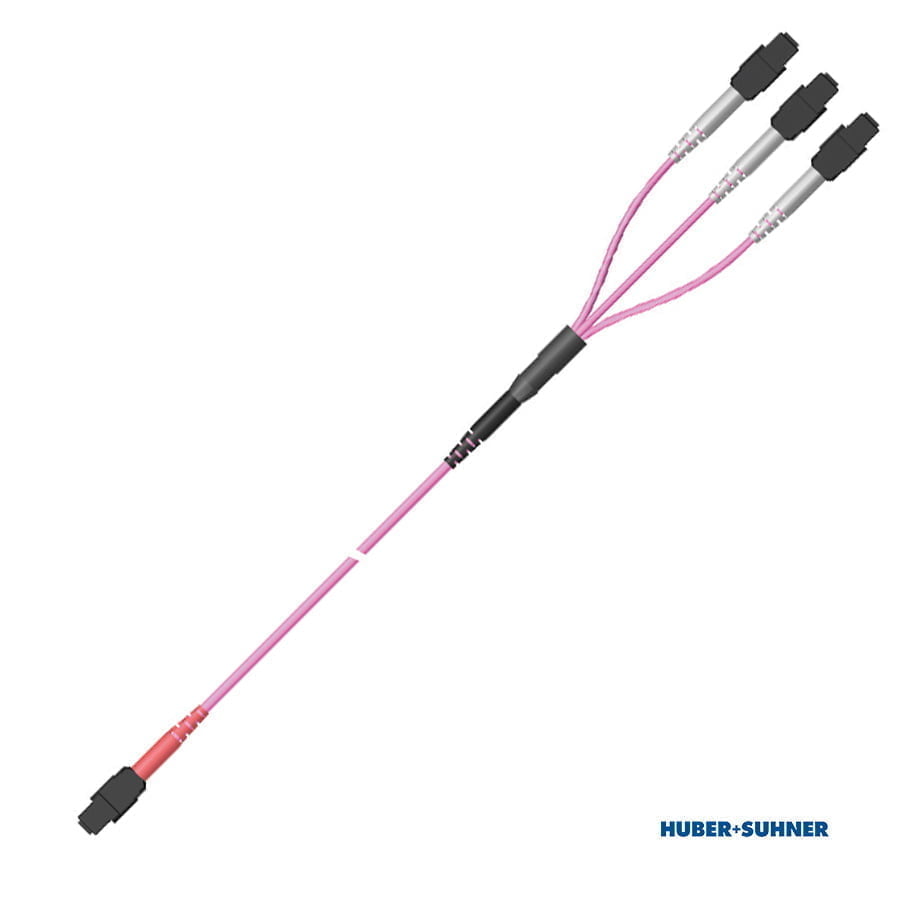

This HUBER+SUHNER Optipack MTP conversion harness enables the conversion of a single Base-24 MTP connection to 3 x Base-8 MTP connections.
Base-24 MTP to Base-8 MTP Conversion Harness
Optipack conversion harness for Base-24 to Base-8 network infrastructure
Conversion harnesses enable users to convert their existing MTP backbone infrastructure to an MTP type that matches their active equipment.
The Base-24 MTP to Base-8 MTP Conversion Harness converts a single Base-24 MTP connection to become three Base-8 connections. Using a conversion harness is a low-loss alternative to using conversion modules because they eliminate one mated MTP pair across the link. Every connection in a link adds a degree of unwanted loss, but with HUBER+SUHNER’s ultra-low-loss modules and harness assemblies, this loss is kept to an absolute minimum. This delivers flexibility but keeps the higher data rates required for today’s businesses.
A Base-24 fibre conversion harness allows users to convert their 24 fibre backbone trunk cables into Base-8 connections so that 40G data rates can achieved. The single Base-24 connection is split to provide three Base-8 connections giving the user three 40G ports.
To help identify the MTP connector’s base rate, HUBER+SUHNER uses colour-coding on their IANOS modules that is continued through to the strain-relief boots of their MTP cables enabling easier identification and helping to reduce or spot incorrectly mated connectors. Base-24 uses a red connector, Base-12 black and Base-8 grey connectors.
Features & Benefits
Features & Benefits
- Converts Base-12 and Base-8 backbones to 40G or 100G.
- Colour-coded connectors for fast identification.
- Compact divider.
- Small diameter cable.
- Low-loss alternative to conversion modules.
- Bend-optimised fibre
- Polarity managed for easy integration.
Specifications
Specifications
General
| Application | Data centre equipment connections | |
|---|---|---|
| Fibre Type | OS2 | E9/125 low bend (G.657 A2) |
| OM4 | G50/125 – OM4 low bend (IEC 60793-2-10 A1a.3) | |
| Cable Type | Metal free indoor cable – Strain relieved aramid yarn | |
| Cable Jacket Colour | OS2 | Yellow |
| OM4 | Heather Violet |
Construction
| Connectors | Side A | MTP® (female / male) |
|---|---|---|
| Side B | MTP® (female / male) | |
| Furcation / fan-out shortest /longest length | Side A | No furcation |
| Side B | Furcation fan-out MTP® |
Optical Performance
| Application | Tested acc. to | Option | Values |
|---|---|---|---|
| Connector Insertion Loss | IEC 61300-3-4 * | <0.35dB | |
| Return Loss | IEC 61300-3-6 | SM | >60dB |
| OM4 | >30dB |
Mechanical Characteristics
| Application | Tested acc. to | Option | Base 8, 12 | Base 24 |
|---|---|---|---|---|
| Cable Diameter (mm) | 3.0 | 3.6 | ||
| Max. Tensile Strength Divider (N) | IEC 60794-1-2 E1 | During installation | 150 | |
| Max. Tensile Strength Cable (N) | IEC 60794-1-2 E1 | During installation | 500 | |
| In service | 200 | |||
| Crush Resistance (N/dm) | IEC 60794-1-2 E3 | Short-term | 5000 | |
| Long-term | 1000 | |||
| Minimal Bending Radius (mm) | IEC 60794-1-2 E11 | During installation | 20 | |
| In service | 10 | |||
* Multimode MT elite ferrule as tested with proposed encircled flux launch condition on 50μm fibre and 850nm per IEC 61280-4-1Singlemode MT elite ferrule compliant with IEC 61755-3-31/grade B
Environmental Characteristics
| Application | Tested acc. to | Condition | Base 8, 12, 24 |
|---|---|---|---|
| Fire Propagation | IEC 60332-1-2 | On vertical single cable | Passed |
| IEC 60332-3-24 | On vertical cable bundle | Passed | |
| CPR Compliant | Dca-s1,d0,a1 | ||
| 2011/65/EC (RoHS) | Compliant |
