More About This Product

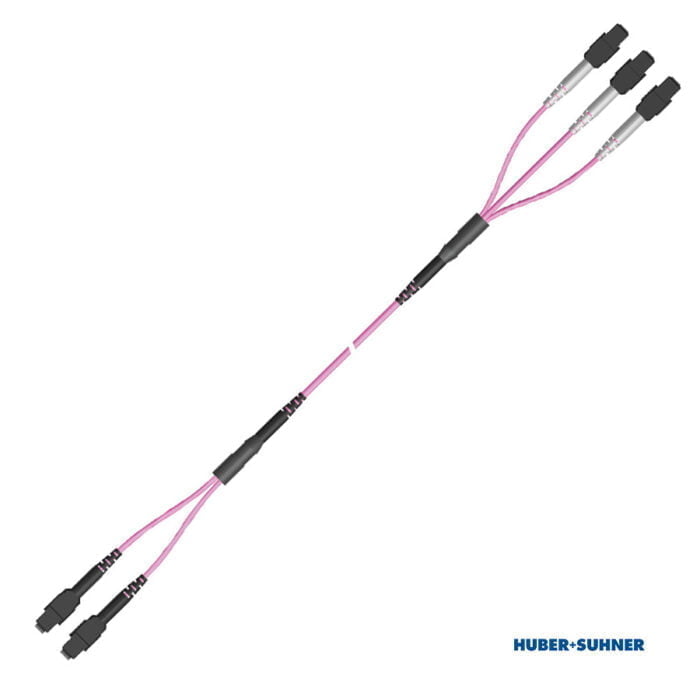

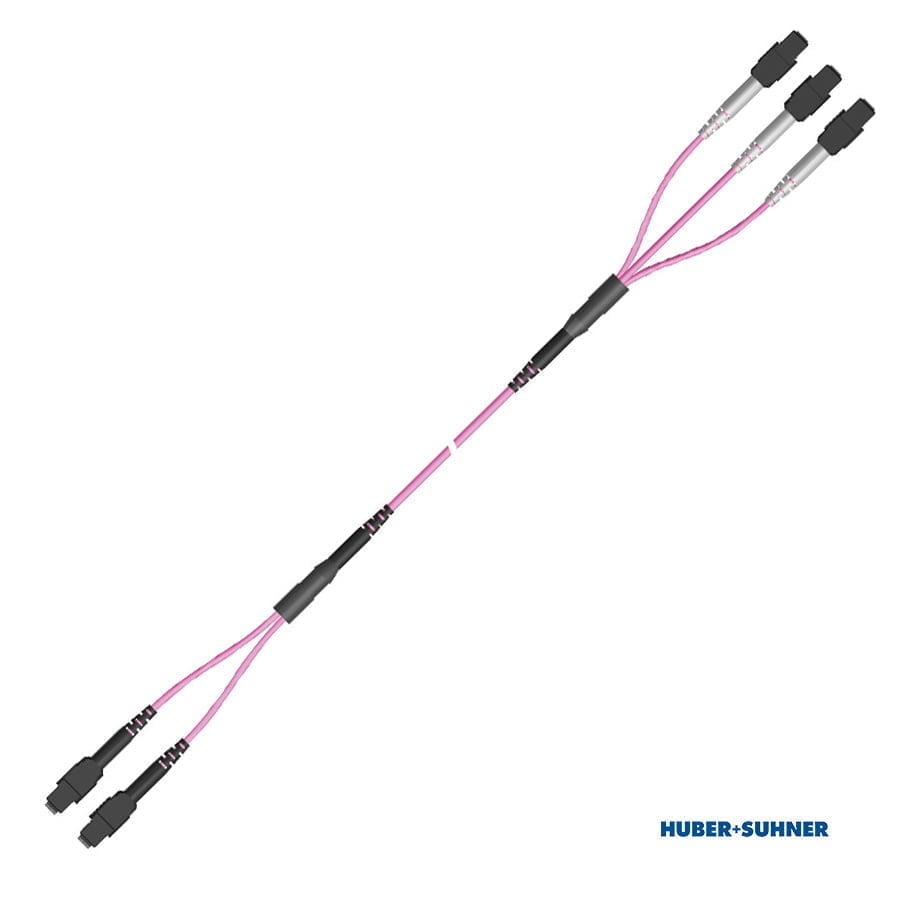

This HUBER+SUHNER Optipack conversion harness enables the conversion of 2 x Base-12 MTP connections to 3 x Base-8 MTP connections.

Base-12 MTP to Base-8 MTP Conversion Harness

Optipack conversion harness for Base-12 to Base-8 network infrastructure

Conversion harnesses enable users to convert their existing MTP backbone infrastructure to an MTP type that matches their active equipment.

In this case the Base-12 MTP to Base-8 MTP Conversion Harness enables two Base-12 MTP connections to become three Base-8 connections. Using a conversion harness is a low-loss alternative to using conversion modules because they eliminate one mated MTP pair across the link. Every connection in a link adds a degree of unwanted loss, but with HUBER+SUHNER’s ultra-low-loss modules and harness assemblies, this loss is kept to an absolute minimum. This delivers flexibility but keeps the higher data rates required for today’s businesses.

Many of today’s legacy infrastructures are built using Base-12 MTP backbone design, however there’s evidence that this connector is rarely used on higher data rate switches or servers. Currently, Base-8 is the preferred connector on 40G transceivers (SR4) and Base-24 is the preferred connector for 100G transceivers (SR10).

To help identify what base rate the MTP connector is HUBER+SUHNER use colour-coding on their IANOS modules which is then carried through to the strain-relief boots of their MTP cables enabling easier identification and helping to reduce or spot incorrectly mated connectors. Base-24 uses a red connector, Base-12 black and Base-8 grey connectors.

Features & Benefits

Features & Benefits

  • Converts Base-12 and Base-8 backbones to 40G or 100G.
  • Colour-coded connectors for fast identification.
  • Compact divider.
  • Small diameter cable.
  • Low-loss alternative to conversion modules.
  • Bend-optimised fibre
  • Polarity managed for easy integration.




ApplicationData centre equipment connections
Fibre TypeOS2E9/125 low bend (G.657 A2)
OM4G50/125 – OM4 low bend (IEC 60793-2-10 A1a.3)
Cable TypeMetal free indoor cable – Strain relieved aramid yarn
Cable Jacket ColourOS2Yellow
OM4Heather Violet



ConnectorsSide AMTP® (female / male)
Side BMTP® (female / male)
Furcation / fan-out shortest /longest lengthSide ANo furcation
Side BFurcation fan-out MTP®


Optical Performance

ApplicationTested acc. toOptionValues
Connector Insertion LossIEC 61300-3-4 *<0.35dB
Return LossIEC 61300-3-6SM>60dB


Mechanical Characteristics

ApplicationTested acc. toOptionBase 8, 12Base 24
Cable Diameter (mm)3.03.6
Max. Tensile Strength Divider (N)IEC 60794-1-2 E1During installation150
Max. Tensile Strength Cable (N)IEC 60794-1-2 E1During installation500
In service200
Crush Resistance (N/dm)IEC 60794-1-2 E3Short-term5000
Minimal Bending Radius (mm)IEC 60794-1-2 E11During installation20
In service10

* Multimode MT elite ferrule as tested with proposed encircled flux launch condition on 50μm fibre and 850nm per IEC 61280-4-1Singlemode MT elite ferrule compliant with IEC 61755-3-31/grade B


Environmental Characteristics

ApplicationTested acc. toConditionBase 8, 12, 24
Fire PropagationIEC 60332-1-2On vertical single cablePassed
IEC 60332-3-24On vertical cable bundlePassed
CPR CompliantDca-s1,d0,a1
2011/65/EC (RoHS)Compliant
