The Fujikura 45S is the latest addition to the Fujikura range of fusion splicers. The 45S is feature-rich, compact V-groove clad alignment fusion splicer that has substantial performance.



Fujikura 45S Active Clad Alignment Fusion Splicer

Small Cladding Alignment V-groove Splicer

The Fujikura 45S is the latest clad alignment fusion splicer that raises the bar for FTTx splicers with its ground-breaking simultaneous fibre preparation features, improved operation, and exceptional reliability.

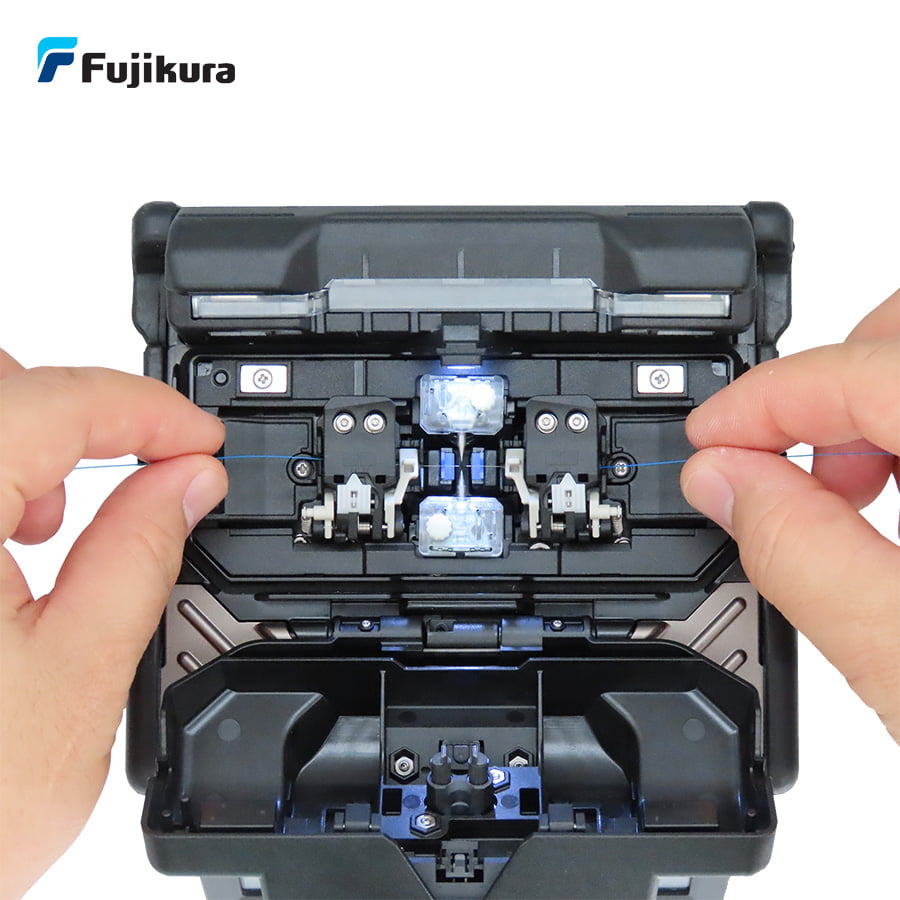

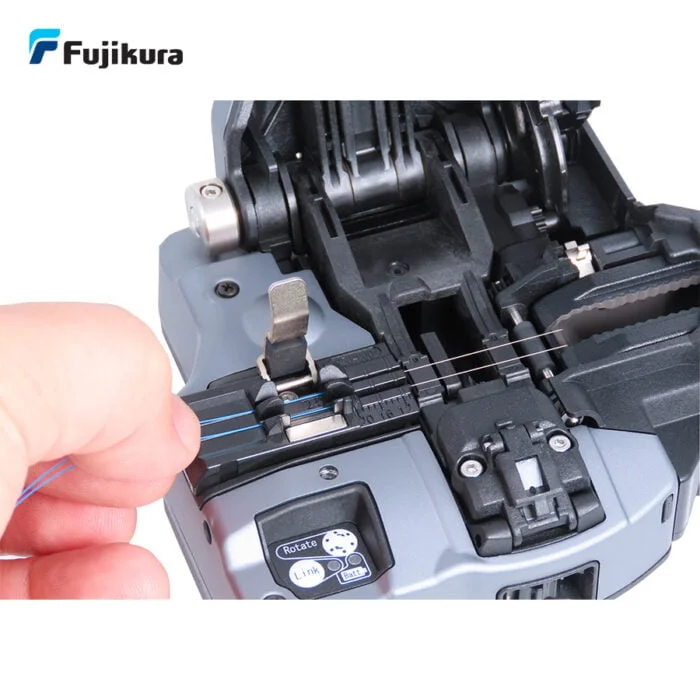

Starting with the SS05 fibre strippers that can simultaneous strip a pair of 250μm fibres, that can then be simultaneously cleaved by the CT50 cleaver fitted with the new AD16 fibre adapter that is equipped with two grooves. These two fibres can then be handled, positioned and simultaneously fibre set thanks to redesigned sheath clamps that close automatically.

This combined with a faster heat time accelerates the performance of the Fujikura 45S over the previous model, the 41S+, making it up to 30% faster without compromising the quality of the splice.

Active Fusion Control and Active Blade Management technology helps maintain stable and consistent low loss splicing, reducing the need for rework and re-splicing.

Using Active Fusion Control the 45S analyses the condition of both left and right cleave end faces and applies the optimal fusion control. It also analyses the fibre brightness intensity during splicing. This contributes to stable, low-loss splice results.

Because the 45S and CT50 fibre-cleaver are equipped with wireless data connectivity it allows the pair to utilise Active Blade Management and allows the automatic rotation of the cleaver blade  when the 45S judges the blade is worn. The 45S displays the remaining blade life and informs the user when a blade height change, blade position change, or new blade is required.

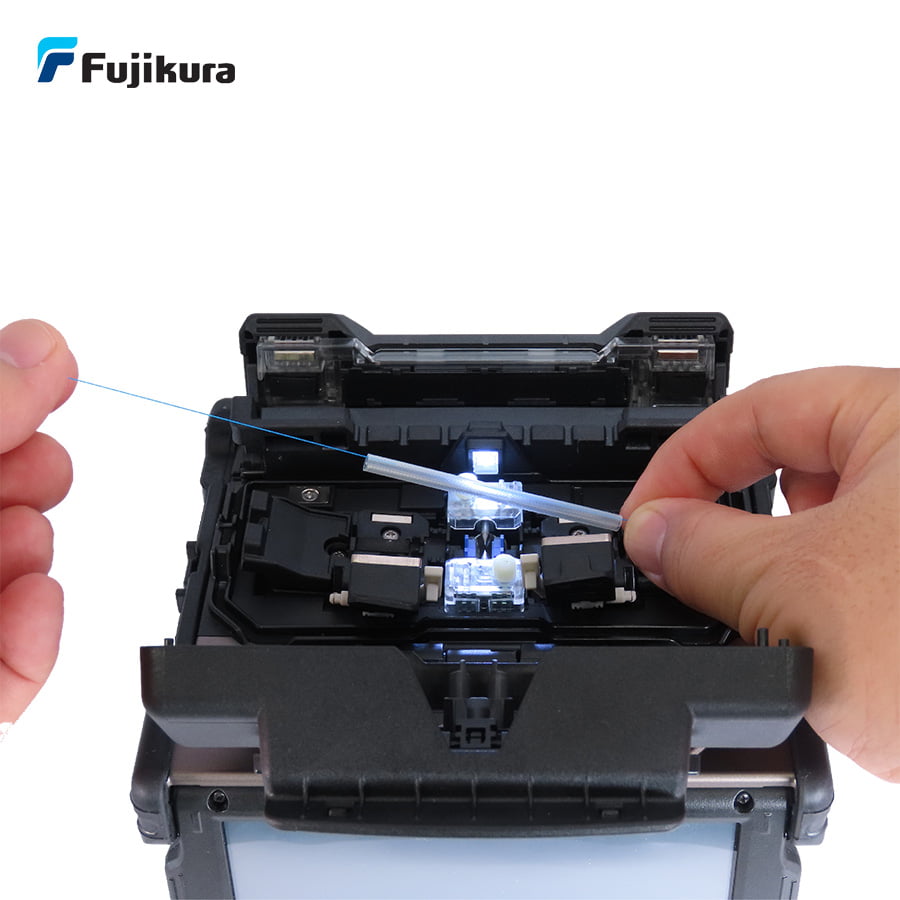

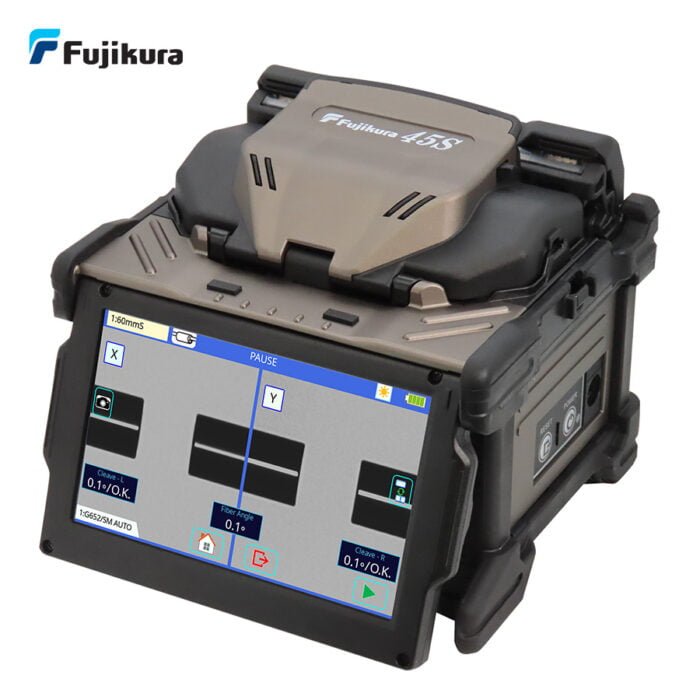

Control of the 45S is through an adjustable colour touchscreen which ensures easy operation and visibility in all environments. Convenience is further bolstered by the improved V-groove illumination and the benefit of easy splice protector positioning. The machine reassures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.

Features & Benefits

Features & Benefits

  • Simultaneous fibre preparation streamlines the splicing process.
  • The 45S also makes it possible to load two fibres into the splicer at the same time.
  • Active fusion control by cleave condition.
  • Active fusion control by fibre brightness.
  • Wireless connectivity between the 45S and CT50 fibre-cleaver enables automatic cleaver blade rotation.
  • The 45S has a new heater that contributes to its accelerated performance.
  • An increased Z-stroke range, allows the 45S to automatically correct the position of the fibre if it is slightly misplaced.
  • Long lasting battery, with uninterrupted operation for up to 230 splice and heat cycles.
