More About This Product
The Fujikura RS02 / RS03 is an ergonomically designed ribbon fibre stripper that provides easier handling with 80% gripping force as compared with the previous model, which makes ribbon fibre stripping easier to do.

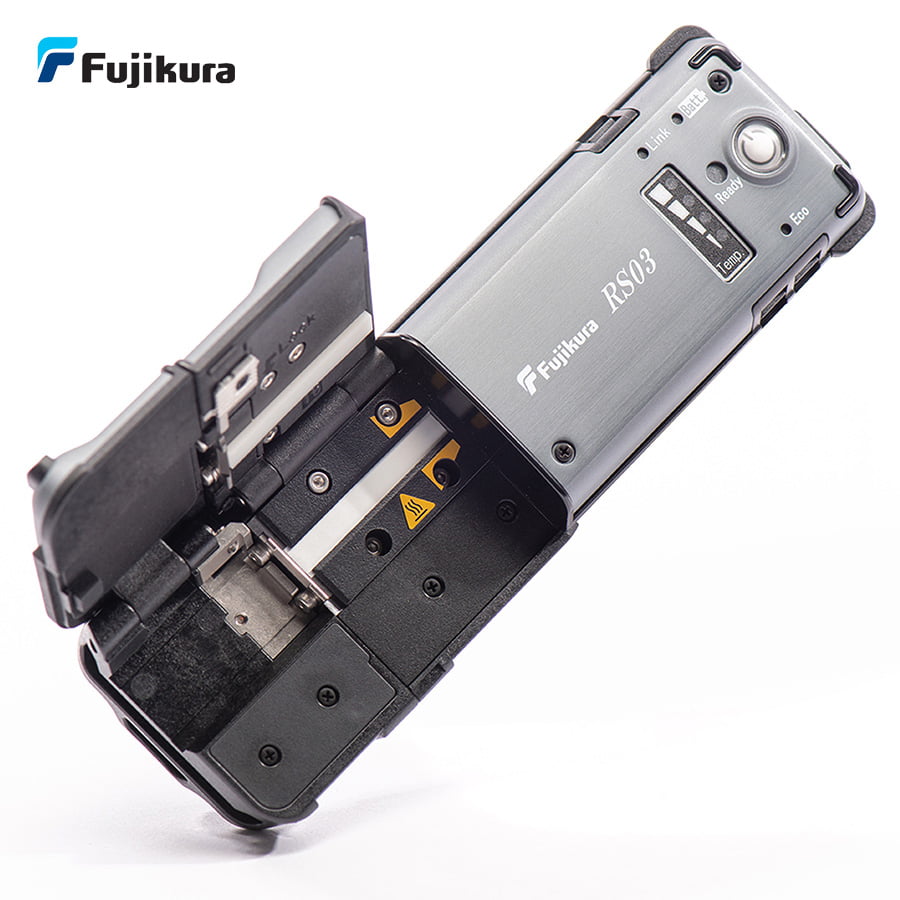

Fujikura RS02 / RS03 Ribbon Fibre Stripper with Bluetooth® Connectivity
The latest ribbon fibre stripper products from Fujikura now offer wireless communication via Bluetooth® connectivity. The Fujikura RS02 / RS03 ribbon fibre strippers have been designed and developed to improve operability and usability thanks to their ergonomic design, that means less force is required in the ribbon fibre stripping process.
Both models feature quicker heating times and Bluetooth® connectivity for communicating information to Smartphones or other Fujikura Bluetooth® enabled equipment such as the Fujikura 90R ribbon fusion splicer. Both of these fibre stripping tools are capable of stripping the latest Fujikura Spider Web Ribbon™, which consists of optical fibres (with a coating of 250µm or 200µm) fixed intermittently.

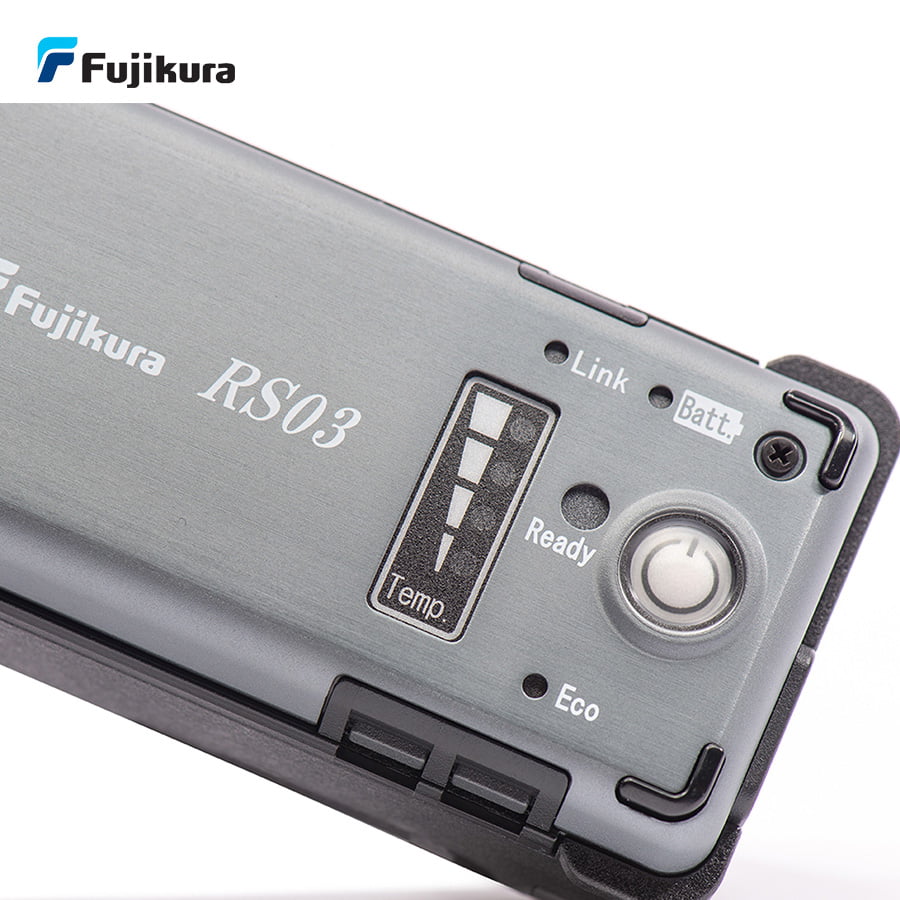

Furthermore, the Fujikura RS03 ribbon fibre stripper is equipped with a large capacity Li-ion battery capable of 600 stripping cycles, 6 times larger than the conventional stripper.
Features & Benefits
Features & Benefits
- Ergonomically designed ribbon fibre stripper providing easy handling.
- 80% gripping force as compared with previous model.
- Fast heating time.
- Bluetooth® capable for wireless connection with smartphones.
- High capacity battery approx. 600 strips (RS03).
Specifications
Specifications
| RS02 | RS03 | RS03-80 | |
|---|---|---|---|
| Applicable optical fibre | Glass optical fibres | ||
| Fibre count | 1 to 12 | Single | |
| Cladding diameter | 125µm | 80µm | |
| Coating diameter | 200 to 40µm | 150 to 250µm | |
| Stripping length | Up to 35mm | ||
| Typical heating time | 3 seconds 5 seconds at Eco mode | ||
| Standard heating temperature | 100°C | ||
| Fibre holder | FH-50 series, FH-60 series, FH-100 series Except for FH-50-250 | ||
| Wireless connectivity | Bluetooth®4.1 LE* OS: Android 5.0 or above, iOS 8.0 or above (iPhone 6 or above) | ||
| Dimensions | 115.5(W) x 48.7(D) x 32.5mm(H)mm | 155.5(W) x 48.7(D) x 36.8(H)mm | |
| Weight | 185g | 265g (with battery) | |
| Power supply | 100 to 240v AC with optional AC adapter, ADC-09A DC10~17V with external DC power supply DC7.4V with battery pack, BTR-12 (rechargeable Lithium-ion battery) | ||
| Battery capacity | – | 1620mAh: Typical 3.5h, 600 times at Eco mode | |
| Operating conditions | Temperature: -10 to 50°C, Humidity: 0 to 95% RH (Non-condensing) | ||
| Storage conditions | Temperature: -40 to 80°C, Humidity: 0 to 95% RH (Non-condensing) | ||
| Resistance feature | Shock resistance: 76cm (30in) all surface drop (Telcordia GR-955-CORE) Rain resistance: H=10mm/hr for 10min (JIS C 0 034) | ||
*: The Bluetooth® wireless connection of this product is not guaranteed to work with all Smartphones or other devices.
