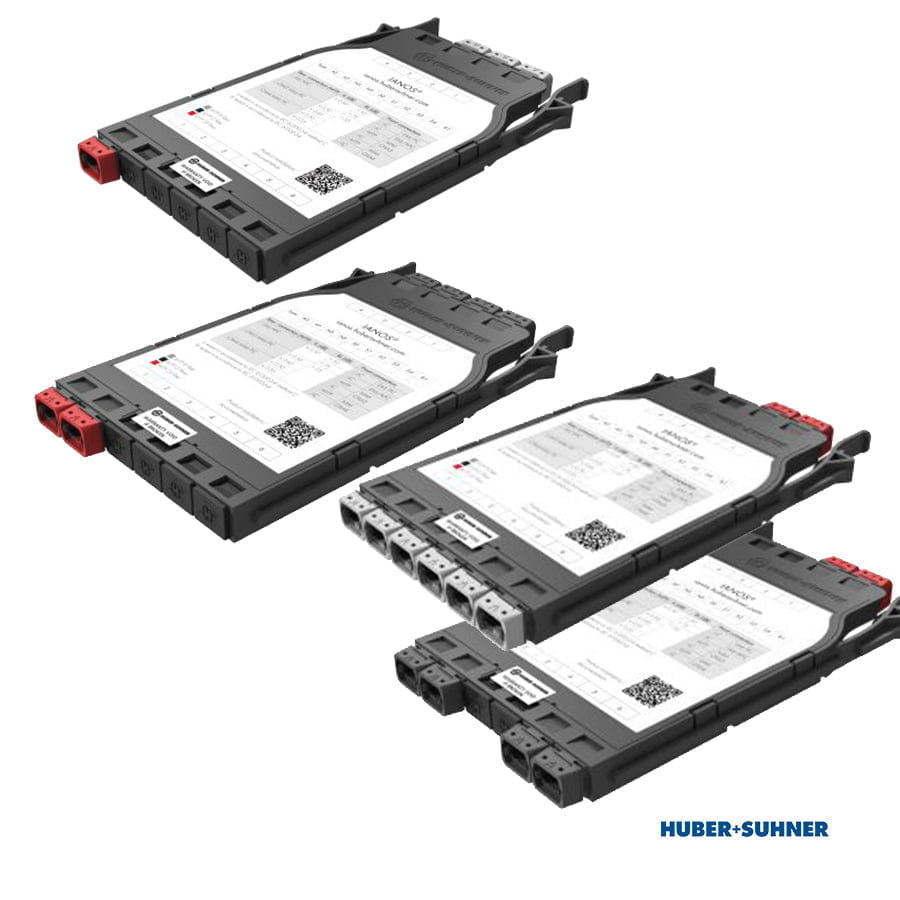

HUBER+SUHNER IANOS MTP-MTP Conversion Module
Upgrade existing MTP based backbones to new protocols
HUBER+SUHNER IANOS MTP-MTP Conversion Module enables existing MTP Base 8, 12 or 24 backbone trunks to be converted into alternative Base 8, 12, or 24 connections facilitating an easy upgrade path to new transceiver requirements. For example, two Base 12 trunks can be converted to three Base 8 MTP connectors (40G SR4) or a single Base 24 connector (100G SR10).
MTP-MTP Conversion Modules are a single-module design and provide a fast and tool-less installation. They are compatible with all IANOS High Density and Medium Density chassis and are available in Multimode OM3 / OM4 performance with a low insertion loss. Colour coded MTP adapters enable easy identification of the MTP connection.
IANOS MTP-MTP Conversion Modules are the preferred conversion method for many operators because MTP jumpers can be used to connect directly from the module to nearby equipment. Generally, the conversion module will have a male connector at the front which allows female to female jumpers to be patched. This makes the management of jumpers easier and prevents any risk of damaging the transceiver with a pinned connector.
Features & Benefits
Features & Benefits
- Converts MTP Base 8, 12 or 24 to MTP Base 8, 12 or 24
- Base 8 – 3x MTP8 to 1x MTP24.
- Base 12 – 4x MTP12 to 2x MTP24 or 2x MTP12 to 3x MTP8.
- Base 24 – 2x MTP24 to 4x MTP12 or 2x MTP24 to 6x MTP8
- Fast and tool-less installation.
- Facilitates patching to transceiver.
- Compact and robust plastic construction.
- Low insertion loss design.
- Available in Multimode OM4 performance.
- Compatible with IANOS EDR 1U/ 4U, EDR zero space chassis and IANOS Lite chassis.
- Colour coded MTP adapters.
Specifications
Specifications
Technical Data
Description | Value | ||
---|---|---|---|
Base 8 | Base 12 | Base 24 | |
Product family | IANOS® | ||
Suitable for | EDR chassis, EDR zero space chassis or IANOS Lite chassis | ||
Dimensions (W x D x H) | 97 x 165 x 12 mm / 3.81 x 6.51 x 0.47 in | ||
Weight | 80g / 2.82Oz (1x MTP24 to 3x MTP8) | 84g / 2.96Oz (4x MTP12 to 2x MTP24) 82g / 2.89Oz (2x MTP12 to 3x MTP8) | 84g / 2.96Oz (2x MTP24 to 4x MTP12) 87g / 3.08Oz (2x MTP24 to 6x MTP8) |
Material | PC/ABS | ||
Colour | Black (RAL 9005) | ||
Number of adapters | Front: 1x MTP24 Rear: 3x MTP8 | Front: 2x MTP24 or 3x MTP8 Rear: 4x MTP12 or 2x MTP12 | Front: 4x MTP12 or 6x MTP8 Rear: 2x MTP24 |
Adapter types | Front: MTP24 KeyUp / KeyDown Rear: MTP8 KeyUp / KeyDown | Front: MTP24 / MTP8 KeyUp / KeyDown Rear: MTP12 KeyUp / KeyDown | Front: MTP12 / MTP8 KeyUp / KeyDown Rear: MTP24 KeyUp / KeyDown |
Adapter colours | Front: Black adapter with red shroud (MTP24) Rear: Black adapter with grey shroud (MTP8) | Front: Black adapter with red shroud (MTP24) or Black adapter with grey shroud (MTP8) Rear: Black adapter with black shroud (MTP12) | Front: Black adapter with black shroud (MTP12) or Black adapter with grey shroud (MTP8) Rear: Black adapter with red shroud (MTP24) |
Ferrule material | MTP: Composite / male gender (front and rear) | MTP: Composite / female gender rear and male gender front |
Environmental Data
Characteristics | Value |
---|---|
Free of halogen | Yes |
2011/65/EC (RoHS) | Fully compliant |
Optical Data
Characteristics | Value | ||
---|---|---|---|
Base 8 | Base 12 | Base 24 | |
Fibre count | 24 | 48 / 24 | 48 |
Fibre type | Multimode 50/125µm OM4 | ||
Module insertion loss | MM OM4: <=0.50 dB | ||
Module return loss | MM OM4: >= 30 dB |
Part Numbers
Part Numbers
Part Number | Description |
---|---|
85073361 | IANOS conversion single module, 3 x MTP-8 female to MTP-24 male OM4, polarity S0 |
85072949 | IANOS conversion single module, 4 x MTP-12 male to 2 x MTP-24 male OM4, polarity S1 |
85072951 | IANOS conversion single module, 4 x MTP-12 male to 6 x MTP-8 male OM4, polarity S2 |
85072953 | IANOS conversion single module, 2 x MTP-24 female to 6 x MTP-8 male OM4, polarity S4 |
85154289 | IANOS conversion single module, 4 x MTP-12 female to 2 x MTP-24 male OM4, polarity S5 |
85154290 | IANOS conversion single module, 4 x MTP-12 female to 6 x MTP-8 male OM4, polarity S6 |
