HUBER+SUHNER IANOS Base 2 Splice Module is available as a single ore double-module splicing module that enables the fusion splicing of 12 or 24 individual heat-shrink splices or sandwich splices. This modules are suitable for OS2, and OM4 fibre applications and for all Optipack 8, 12 and 24-strand cables. It also accommodates bend radius limiting.
Categories: Connectivity, Whitespace Connectivity

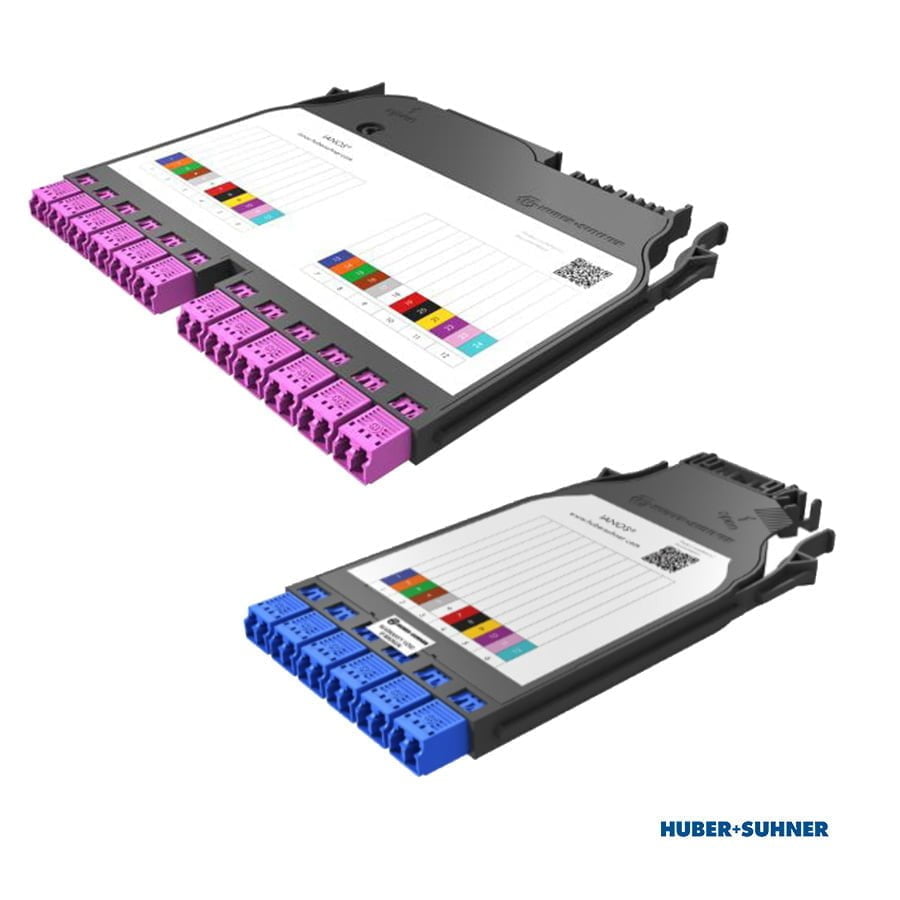

HUBER+SUHNER IANOS Base 2 Splice Module
Enables fusion splicing of OS2 & OM4 fibres in the IANOS system
The HUBER+SUHNER IANOS Base 2 Splice Module is available as single or double-module that enables fusion splicing of 6 or 12 x LC-duplex connectors. The splicing module enables fast splicing with reduced coiling time and quick access to fibres. The lid offers a fibre identification map along with colour coded LC adapters indicating the fibre type. Bend radius is control throughout with a minimum of 30mm. IANOS Base 2 Splice Modules are available for Singlemode OS2 and OM4 fibre performance and are compatible with all IANOS High Density and Medium Density Chassis.
Features & Benefits
Features & Benefits
- 6x or 12x LC-duplex splicing in a single or double module
- Fast splicing and reduced coiling time
- Lid with fibre identification
- Quick access to fibre
- Quick fix cable fixation for incoming cables
- Compact and robust plastic construction
- Bend radius control throughout (min. 30mm)
- Fibre over-length storage with integral heat shrink or optional sandwich splice comb
- Available in Singlemode OS2 and Multimode OM4 performance
- Compatible with IANOS EDR 1U/ 4U and EDR zero space chassis
- Colour coded LC adapters
Specifications
Specifications
Technical Data Double Module
| Description | Value |
|---|---|
| Product family | IANOS ® |
| Suitable for | EDR chassis, EDR zero space chassis, IANOS Lite chassis |
| Dimensions (W x D x H) | 199 x 177 x 12 mm (5.1 x 5.4 x 1.9 in) |
| Weight | 180g / 5.3 Oz |
| Material | PC/ABS |
| Colour | Black (RAL 9005) |
| Number of adapters | Front: 12x LC-duplex Rear: Cable fixation |
| Adapter types | Front: LC-duplex Rear: Cable fixation |
| Adapter colours | Front: Blue (SM/PC) Green (SM/APC) Heather violet (MM/OM4) Rear: N/A |
| Ferrule material | LC: Zirconia ceramic |
Environmental Data
| Characteristics | Value |
|---|---|
| Free of halogen | Yes |
| 2011/65/EC (RoHS) | Fully compliant |
Optical Data Double Module
| Characteristics | Value |
|---|---|
| Fibre count | 24 |
| Fibre type | Singlemode 9/125 μm OS2/ ITU-G.652.D/ IEC 60793-2-50 Type B1.3 Multimode 50/125 μm OM4/ ITU G.651.1/ IEC 60793-2-10 Type A1a.3b |
| Bend radius limitation | Min. 30 mm |
| Module insertion loss | SM OS2: ≤0.50 dB MM OM4: ≤0.15 dB |
| Module return loss | SM OS2 PC: ≥50 dB SM OS2 APC: ≥60 dB MM OM4: ≥30 dB |
Part Numbers
Part Numbers

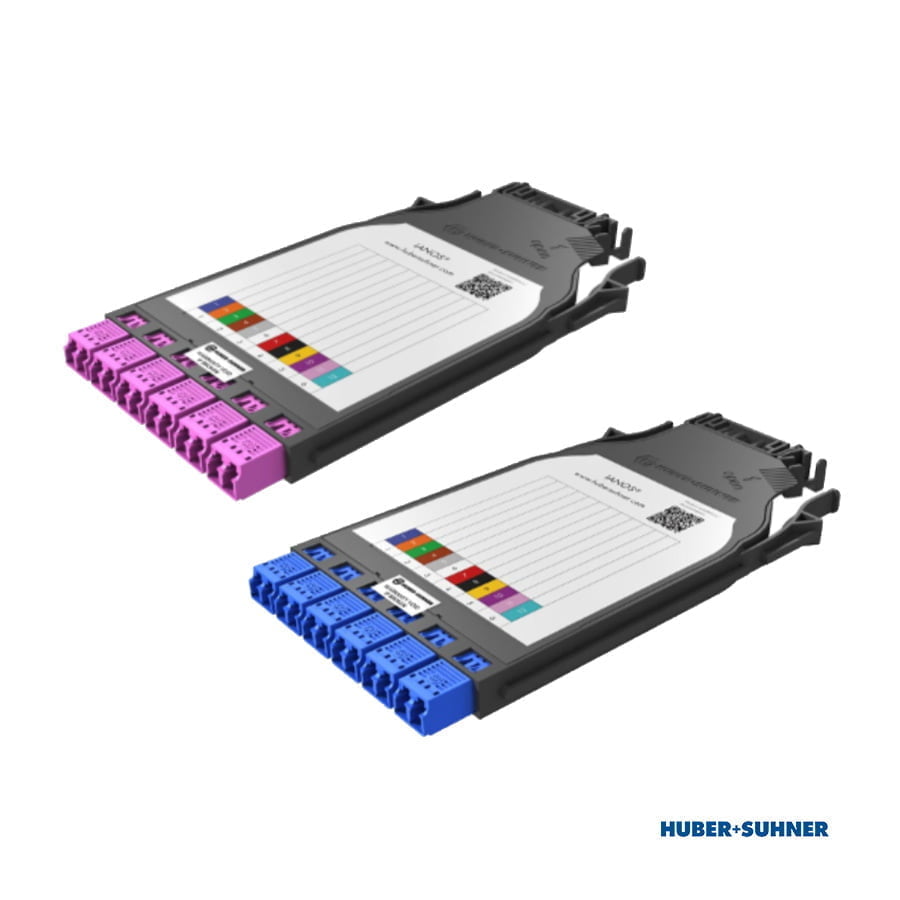

Single Modules
| Part Number | Description |
|---|---|
| 85115852 | IANOS splicing single module, 6 x LCd UPC SM, 12 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85115854 | IANOS splicing single module, 6 x LCd APC SM, 12 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85115850 | IANOS splicing single module, 6 x LCd OM4, 12 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85141996 | IANOS splicing single module, 6 x LCd UPC SM, 12 pigtails, for sandwich splice protectors, protectors not included, DIN colour code |
| 85141995 | IANOS splicing single module, 6 x LCd APC SM, 12 pigtails, for sandwich splice protectors, protectors not included, DIN colour code |
| 85141997 | IANOS splicing single module, 6 x LCd OM4, 12 pigtails, for sandwich splice protectors, protectors not included, DIN colour code |

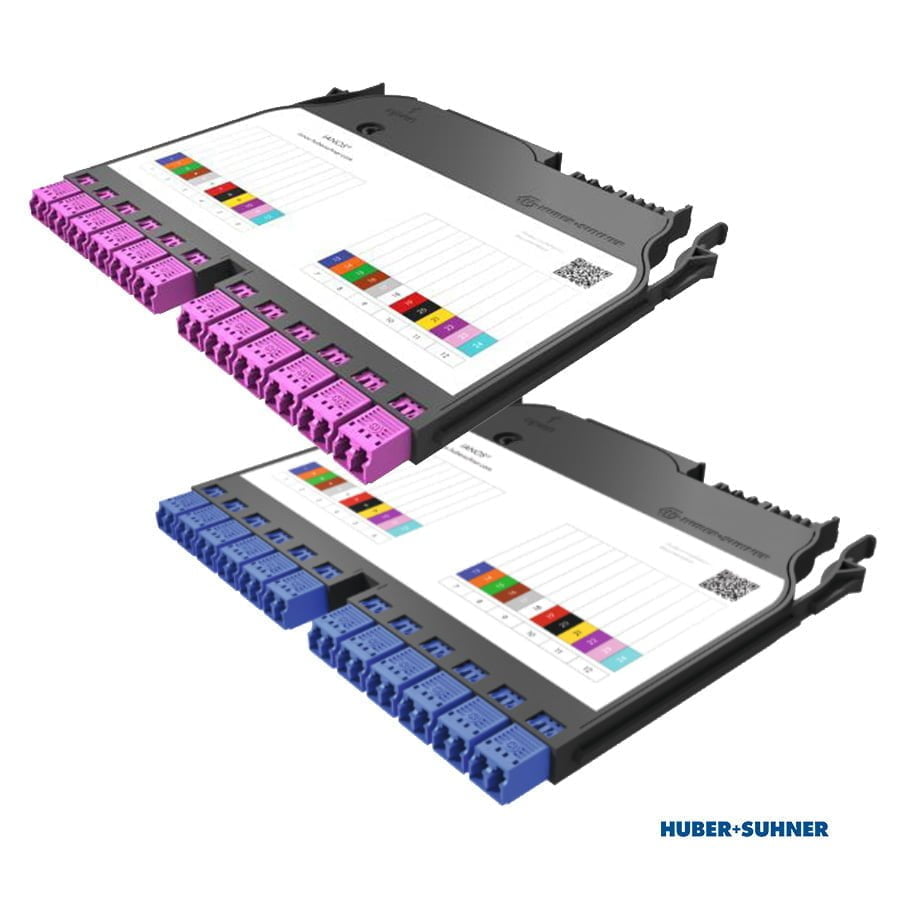

Double Modules
| Part Number | Description |
|---|---|
| 85072934 | IANOS splicing double module, 12 x LCd UPC SM, 24 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85127554 | IANOS splicing double module, 12 x LCd UPC SM, 24f ribbon pigtail, ribbon heatshrink splice protectors, protectors included, TIA colour code |
| 85072935 | IANOS splicing double module, 12 x LCd APC SM, 24 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85127555 | IANOS splicing double module, 12 x LCd APC SM, 24f ribbon pigtail, ribbon heatshrink splice protectors, protectors included, TIA colour code |
| 85072937 | IANOS splicing double module, 12 x LCd OM4, 24 pigtails, heatshrink splice protectors ø1.5 mm, protectors included, TIA colour code |
| 85154283 | IANOS splicing double module, 12 x LCd OM4, 24f ribbon pigtail, ribbon heatshrink splice protectors, protectors included, TIA colour code |
| 85140268 | IANOS splicing double module, 12 x LCd UPC SM, 24 pigtails, sandwich splice protectors, protectors not included, DIN colour code |
| 85140239 | IANOS splicing double module, 12 x LCd APC SM, 24 pigtails, sandwich splice protectors, protectors not included, DIN colour code |
| 85140240 | IANOS splicing double module, 12 x LCd OM4, 24 pigtails, sandwich splice protectors, protectors not included, DIN colour code |
| 85083806 | IANOS splicing double module, 12 x SC UPC SM, 12 pigtails, heatshrink and sandwich protectors included, TIA colour code |
| 85083807 | IANOS splicing double module, 12 x SC APC SM, 12 pigtails, heatshrink and sandwich protectors included, TIA colour code |
| 85083803 | IANOS splicing double module, 12 x SC OM4, 12 pigtails, heatshrink and sandwich protectors included, TIA colour code |
