More About This Product
EziBlank® 19 inch blanking panels are supplied in 6U sheets and provide a cost effective blanking solution that can improve your PUE by preventing unwanted air recirculation within the 19” rack.

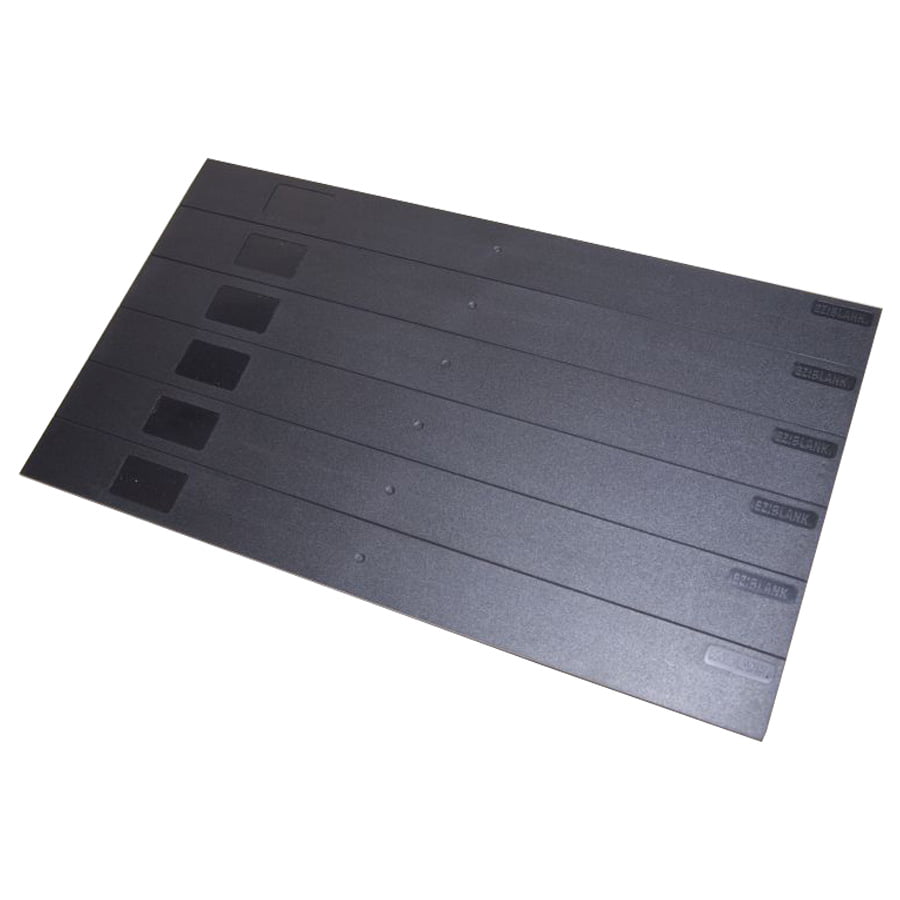

EziBlank® 6U 19″ blanking panel sheets can be snapped at 1U intervals allowing them to blank out the required amount of unused rack space.
EziBlank 6U 19″ Blanking Panel Solution
The easiest 19 inch blanking panel solution to blank unused rack space
EziBlank® 19 inch blanking panels, one of the 19″ blanking panel solutions from EDP Europe, are supplied in boxes of 10 x 6U sheets and provide a cost effective blanking solution that prevents unwanted air recirculation within 19” server racks. Preventing this as part of an overall airflow management strategy can improve your PUE.

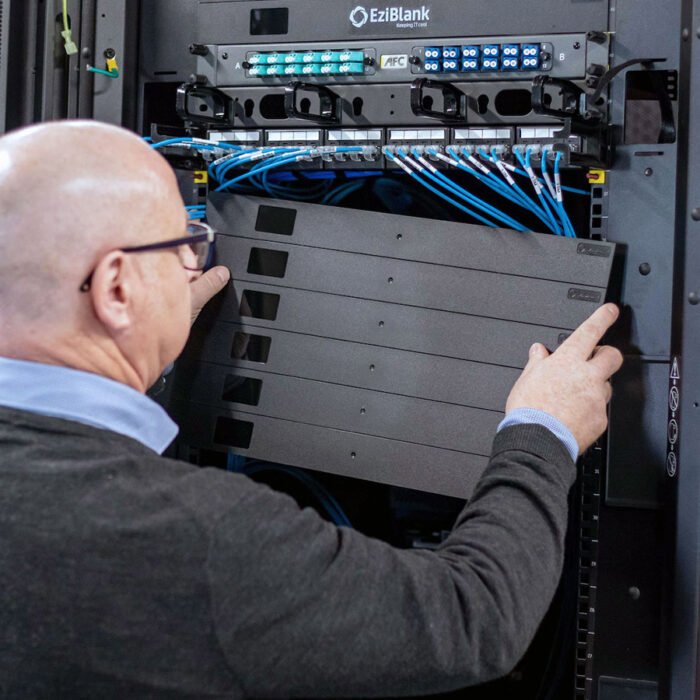

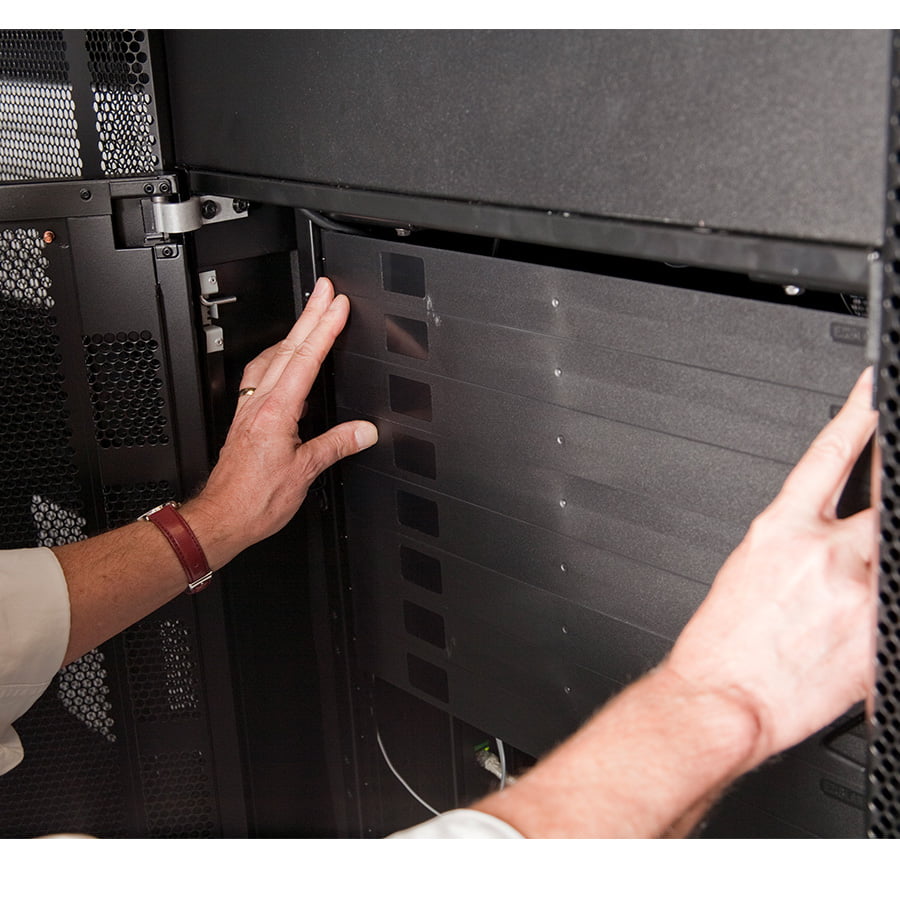

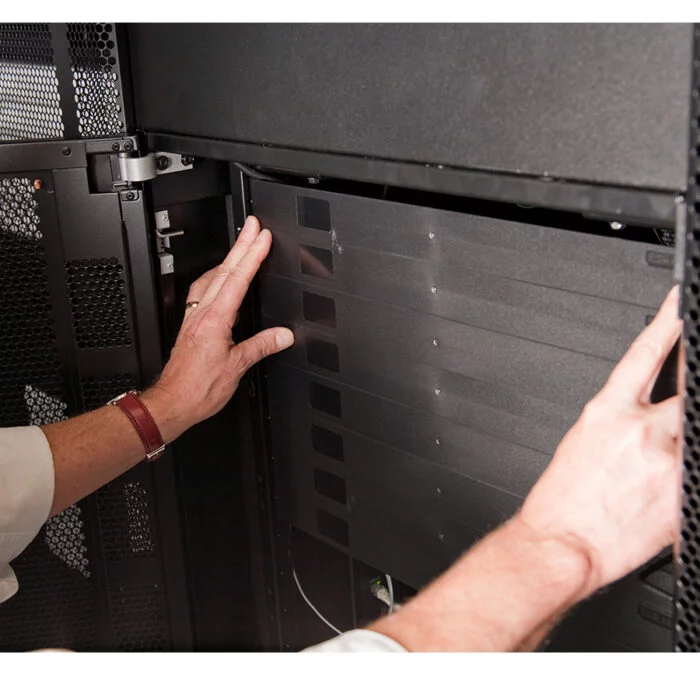

Each EziBlank® 6U blanking panel sheet can be snapped at 1U intervals allowing them to blank out the required amount of unused rack space. This is done by bending the panel along the desired separation line. Their tool-less design makes EziBlank quick and easy to install, thanks to the innovative ‘pop-in clip’ that fits the standard square holes found in most data centre and IT rooms 19″ computer racks. This design enables an entire rack of unused space to be blanked out within a couple of minutes, no cage nuts, clips, screws or tools required.
Using EziBlank® 19 inch blanking panel sheets keeps hot exhaust air from IT equipment from circulating back to the front of the rack where it can mix with the cold air that should be cooling the IT equipment. Preventing this hot air from mixing with cool intake air can help extend the life of IT equipment, as well as saving energy and reducing the carbon footprint of the data centre as part of a Data Centre airflow management strategy.

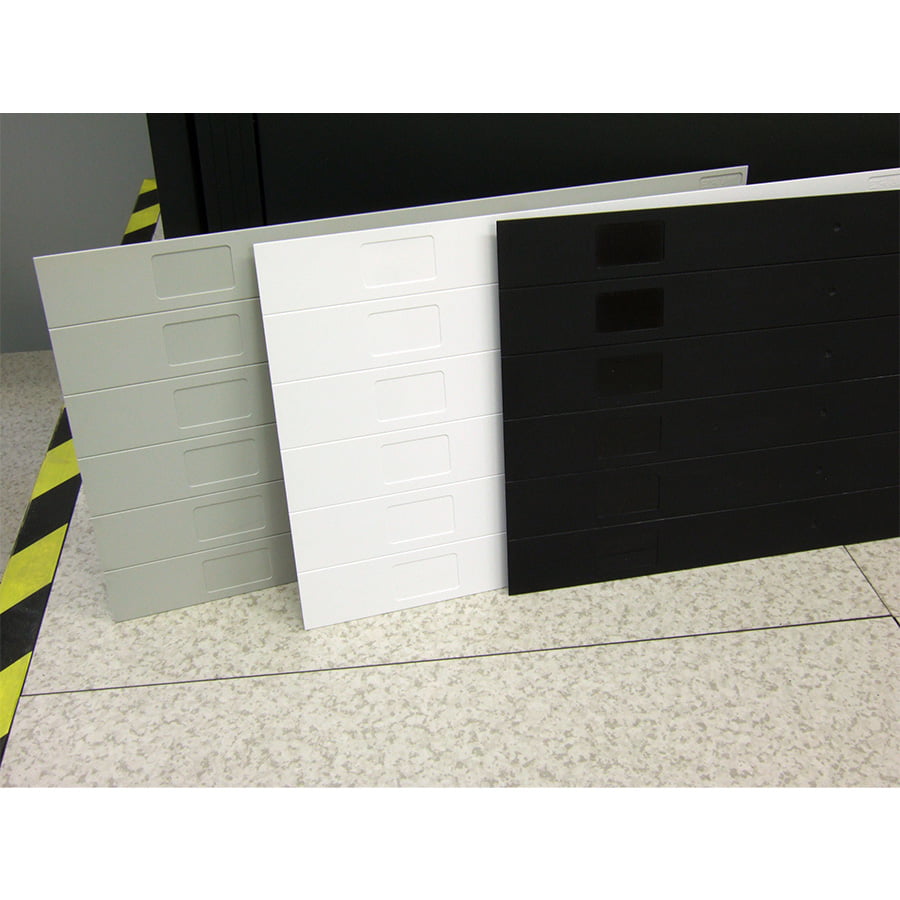

EziBlank 6U 19 inch Blanking Panel Sheets are available from stock in three colours Black, Light Grey or White.
Features & Benefits
EziBlank® Features & Benefits
- EziBlank® 19 inch blanking panel sheets prevent hot air recirculation, which is one measure to improve CRAC unit efficiency.
- 6U EziBlank® 19″ blanking panel sheets can be split at 1U intervals, and can be easily adjusted to the required U size.

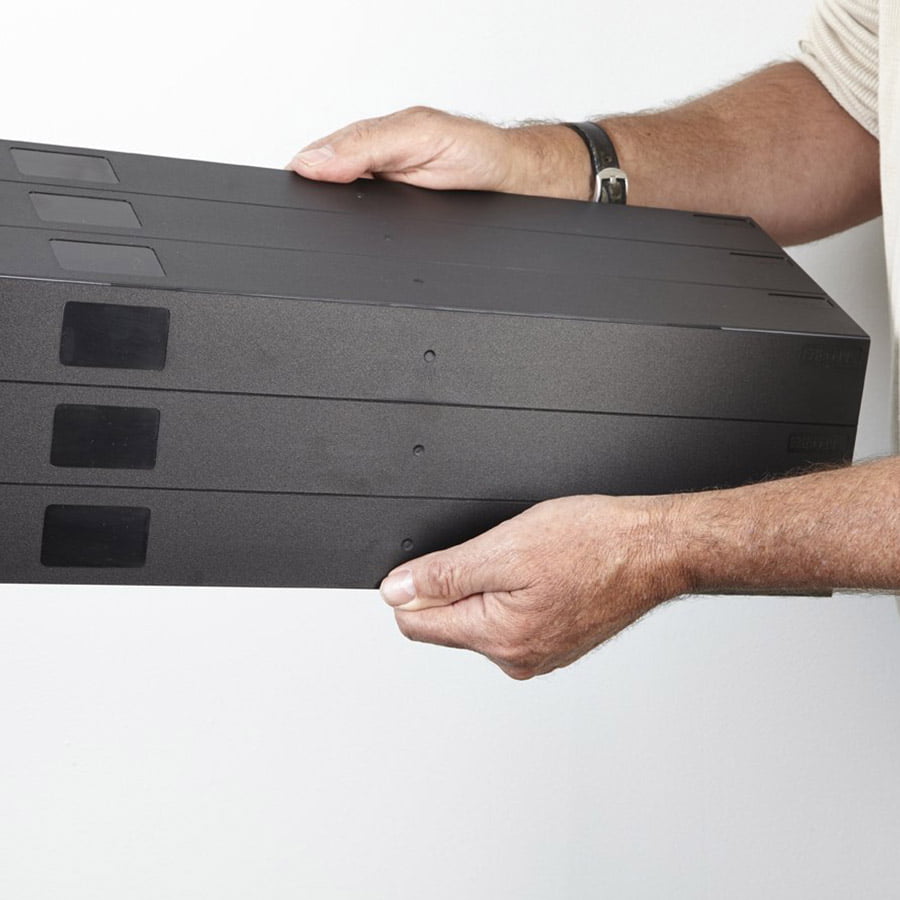

- To resize EziBlank® to the required amount of U, bend firmly along desired position and fold backwards.
- Designed and manufactured to the highest international standards.
- Available in three colours black, light grey and white.
- Great for the environment, EziBlank® 19 inch blanking panel sheets are reusable, recyclable and flame retardant.
- Tool-less installation thanks to innovative ‘pop-in clip’, that allows the blanking panel sheets to be installed or removed in seconds without the need for screws or tools.
Specifications
EziBlank® Specifications
- Size: 19” EIA x 6U. Snaps off to six 19” EIA x 1RU blanking panels.
- Fits: 19” Wide EIA-310D compliant equipment mounting rails, with 44.45RU hole spacing (15.9mm x 15.9mm x 12.7mm)
- Dimensions: 482mm (W) x 266.7mm (H) x 1.8mm (D).
- Shipping Weight: 10 x 6RU blanking panel sheets = 3.5Kgs.
- Certification & Conformity: ANS UL 94 V-0 and UL file number E183535. RoHS 3 compliant with conformity to RoHS Directive 2011/65/EU Annex II (amended by Directive (EU) 2015/863).
- Material: Acrylonitrile Butadiene Styrene (ABS), meets UL 94 V-0 standard.
- Construction: Moulded
- Finish: Textured.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 46-EZIBLANK | EziBlank 6RU 19” Blanking Panel, Black (Box of 10 sheets) |
| 46-EZIBLANK-W | EziBlank 6RU 19” Blanking Panel, White (Box of 10 sheets) |
| 46-EZIBLANK-GREY | EziBlank 6RU 19” Blanking Panel, Grey (Box of 10 sheets) |
