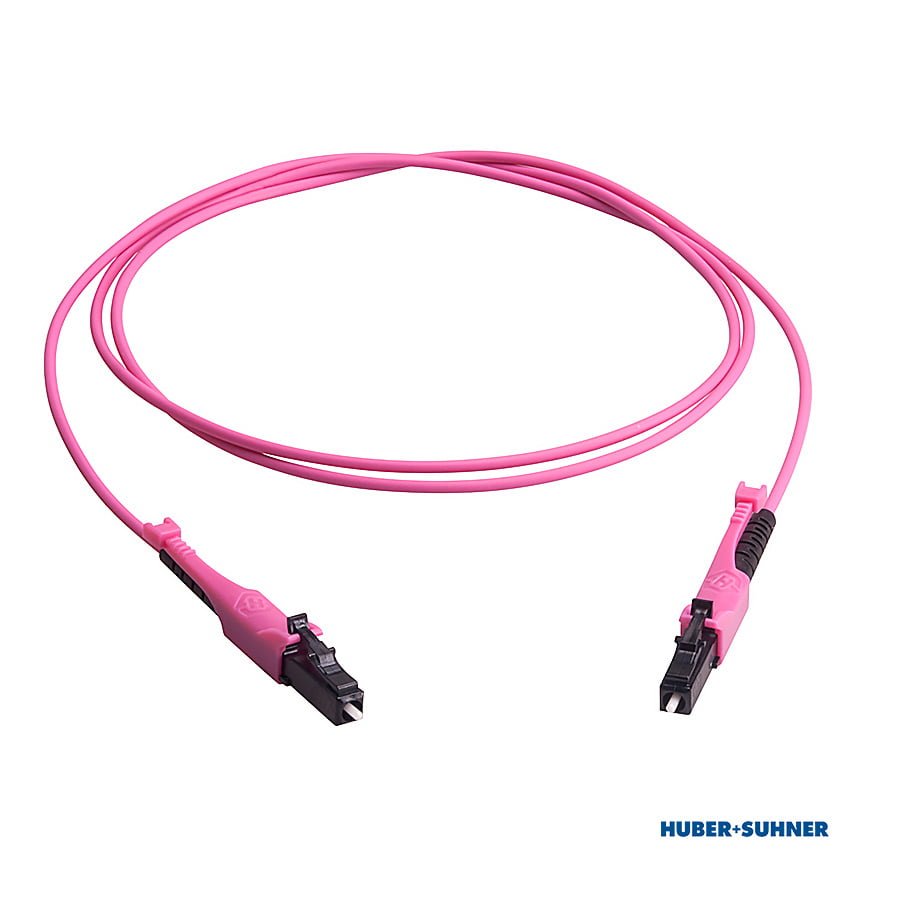

The HUBER+SUHNER Multi-Mode LC HD Simplex fibre patch cable has an extended lever that provides the easiest handling in high-density applications.
HUBER+SUHNER LC HD Simplex Patch Cables
Multi-Mode OM4 Simplex fibre patch cables with extended lever
HUBER+SUHNER’s Multi-Mode LC HD Simplex OM4 fibre patch cables are simplex versions of the Multi-Mode LC-XD Duplex patch cords that feature the same extended lever for easier handling in high density installations. The push-pull mechanism, along with the antigrip design of the stable lever reduces snagging and improves handling. The patented (US 8.221.007) solid unibody design improves mechanical strength while the 2.0mm diameter cable is low smoke and free of halogen (LSFH). Available in five cable lengths: 1, 2, 3, 5 and 10m. Also available in Single Mode UPC APC versions.
Characteristics of HUBER+SUHNER LC HD Simplex Fibre Patch Cables
- Push-pull mechanism for best handling and highest packing density.
- Stable lever with antigrip design.
- Patented (US 8.221.007).
- Solid unibody design to improve mechanical strength.
- Short rigid length.
- Cable low smoke and free of halogen (LSFH).
- Available in five lengths: 1, 2, 3, 5 and 10m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.0mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 100N |
| Operating Temperature | -20 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Multimode OM4, LC -HD Simplex Patch Cord
| Part Number | Description |
|---|---|
| 85030933 | 1m Multimode OM4, LC-HD Simplex, 2.0 mm heather violet MM G50 (OM4) cable, Patch Cord |
| 85030934 | 2m Multimode OM4, LC-HD Simplex, 2.0 mm heather violet MM G50 (OM4) cable, Patch Cord |
| 85015643 | 3m Multimode OM4, LC-HD Simplex, 2.0 mm heather violet MM G50 (OM4) cable, Patch Cord |
| 85015644 | 5m Multimode OM4, LC-HD Simplex, 2.0 mm heather violet MM G50 (OM4) cable, Patch Cord |
| 85015645 | 10m Multimode OM4, LC-HD Simplex, 2.0 mm heather violet MM G50 (OM4) cable, Patch Cord |
