The HUBER+SUHNER Single Mode LC HD Simplex fibre patch cable has an extended lever that provides the easiest handling in high-density applications.
HUBER+SUHNER LC HD Simplex Patch Cables
Single Mode UPC APC Simplex fibre patch cables with extended lever

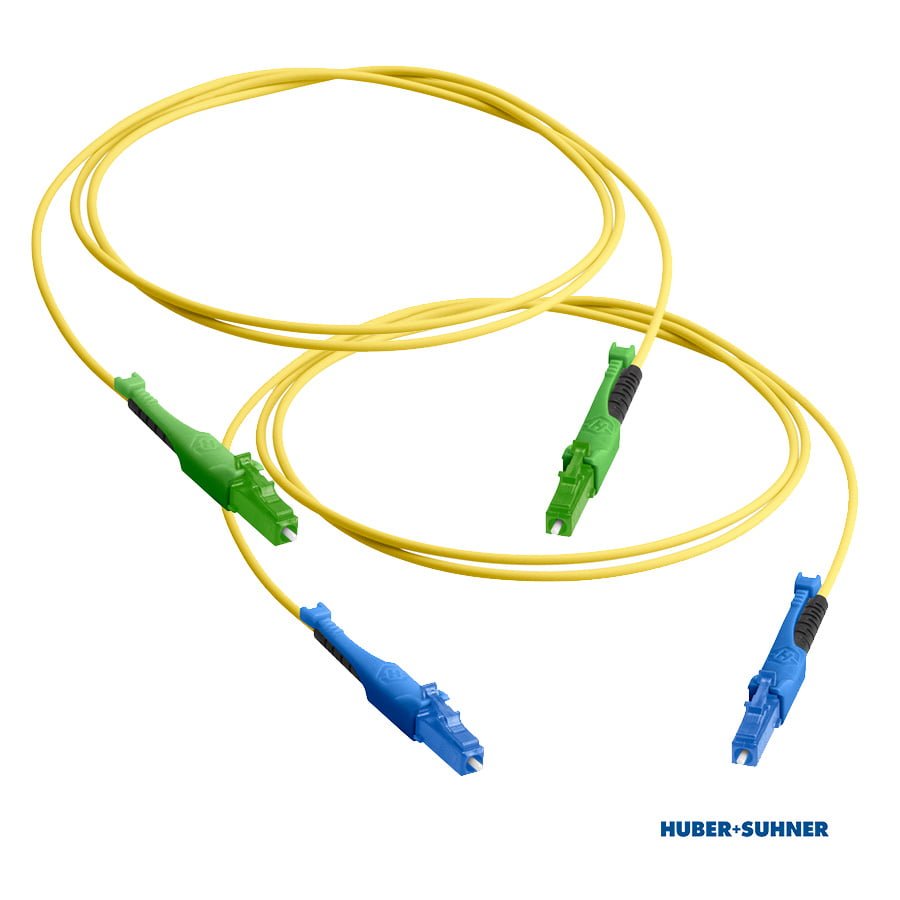

HUBER+SUHNER’s Single Mode LC HD Simplex UPC / APC fibre patch cables are simplex versions of the Single Mode LC-XD Duplex patch cords that feature the same extended lever for easier handling in high density installations. The push-pull mechanism, along with the antigrip design of the stable lever reduces snagging and improves handling. The patented (US 8.221.007) solid unibody design improves mechanical strength while the 2.0mm diameter cable is low smoke and free of halogen (LSFH). Available in five cable lengths: 1, 2, 3, 5 and 10m. Also available in a Multi-Mode OM4 version.
Characteristics of HUBER+SUHNER LC HD Simplex Fibre Patch Cables
- Push-pull mechanism for best handling and highest packing density.
- Stable lever with antigrip design.
- Patented (US 8.221.007).
- Solid unibody design to improve mechanical strength.
- Short rigid length.
- Cable low smoke and free of halogen (LSFH).
- Available in five lengths: 1, 2, 3, 5 and 10m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.0mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 100N |
| Operating Temperature | -20 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, LC -HD Simplex Patch Cord
| Part Number | Description |
|---|---|
| 85030922 | 1m Singlemode UPC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030923 | 2m Singlemode UPC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015636 | 3m Singlemode UPC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015638 | 5m Singlemode UPC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015639 | 10m Singlemode UPC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
Singlemode APC, LC -HD Simplex Patch Cord
| Part Number | Description |
|---|---|
| 85030926 | 1m Singlemode APC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030927 | 2m Singlemode APC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015640 | 3m Singlemode APC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015641 | 5m Singlemode APC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85015642 | 10m Singlemode APC, LC-HD Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cord |
