HUBER+SUHNER OM4 Base-12 MTP Pro fibre trunk cables use the ‘best in class’ US Conec MTP Pro connectors to deliver a flexible MTP fibre solution that supports high bandwidth network requirements driven by parallel optics applications. This next generation fibre connectivity is available from stock.
These cables are available in lengths from 3m to 50m with 5 stock lengths available from EDP Europe, and are Polarity B, MTP12 Pro Male (pinned) elite to MTP12 Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm, CPR B2ca

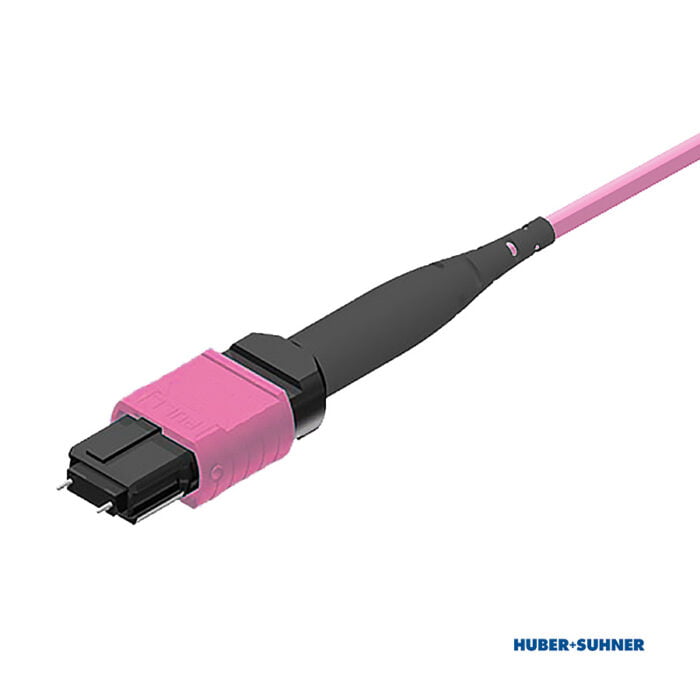

HUBER+SUHNER MTP Pro Trunk Cables
MTP Pro fibre trunk cables provide greater flexibility
MTP Pro fibre trunk cables are the latest addition to HUBER+SUHNER’s fibre connectivity solutions.
MTP fibre connectivity has been helping Data Centres deliver higher bandwidths for a while now. A major benefit of MTP fibre connectivity is its modularity, high-density, and its ability to support high bandwidth network requirements driven by parallel optics applications. This has not only helped Data Centres to deliver the requirements needed today, but helped future-proof their network infrastructure for the demands of tomorrow.
HUBER+SUHNER MTP Pro fibre trunk cables will help increase this flexibility through a next generation MTP Pro connector from US Conec. This next generation connector enhances the standard MTP connector by enabling quick and effective polarity changing as well as gender reconfiguration, in the field; lowering expenditure by reducing the number of cables needed to be kept on hand. The MTP Pro connector has also been designed to reduce the risk of damage to the ferrules by offering a longer insertion and extraction sleeve that relives strain on the cable, making connector mating much easier and safer.
HUBER+SUHNER OM4 Base12 MTP Pro fibre trunk cables are male to male trunks with Polarity B. They utilise HUBER+SUHNER’s CPR B2ca Optipack cable. Cable diameter is 4mm which makes them suitable for use in risers. In-field polarity and pin reconfiguration are made possible through the use of the MTP Pro Tool with polarity change possible without removing the connector’s housing. In-field pin change enables easy configuration, whilst maintaining product integrity with fail safe handling of pins & easy colour identification. These cables are fully compatible with HUBER+SUHNER LiSA and IANOS fibre management systems.
Features & Benefits
Features & Benefits
- OM4 Base12 Male to Male fibre trunk cables with Polarity B.
- Cables use CPR B2ca rated Optipack cable.
- 4mm Cable diameter makes these suitable for use in risers.
- Utilise ‘best in class’ US Conec MTP Pro connectors.

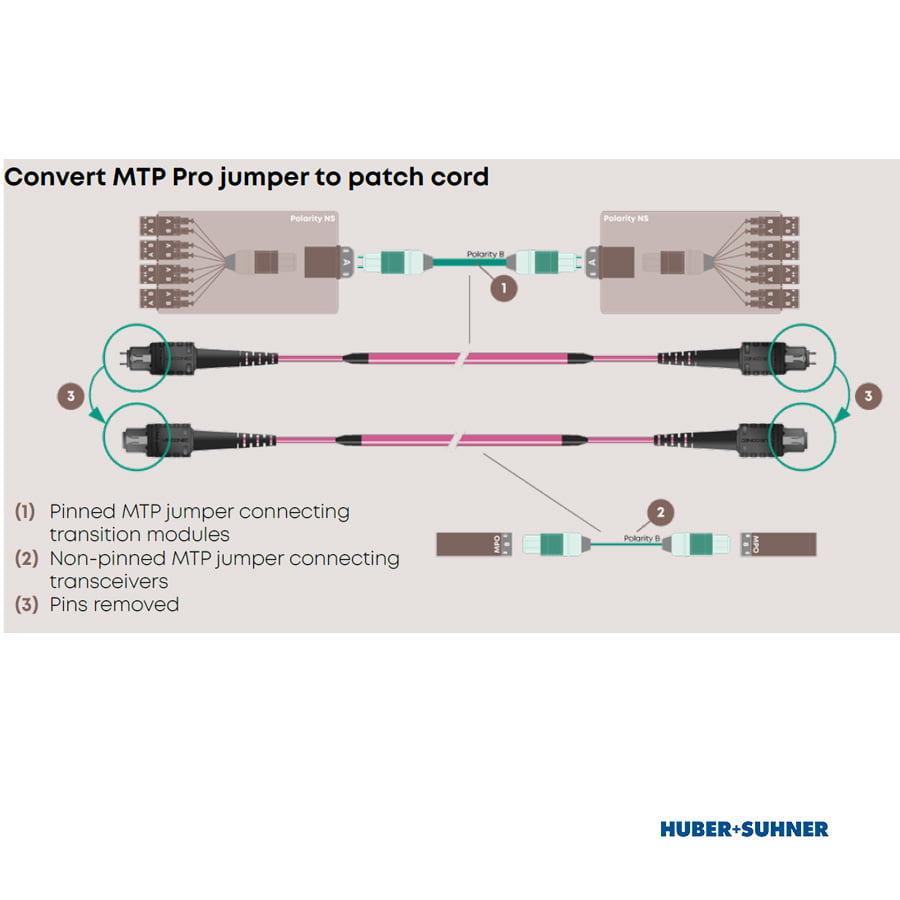

- Connector allows in-field changing of polarity and gender reconfiguration of pins.
- Reduce expenditure as fewer cables need to be kept on hand.
- Design of the connector helps relive cable strain and makes handling easier and mating safer.
- Fully compatible with LiSA and IANOS fibre management systems
- Available from stock in various lengths from 7m to 20m
Specifications
Specifications
General Data | |
---|---|
General Type | Base-12 MTP Pro-MTP Pro jumper cables 4.0mm,OM4 |
Operating Temperature | -25°C up to 70°C |
Polarity | B |
UL Rating | UL94 V-0 |
RoHS Guidelines 2001/65/EU | Yes |
REACH Compliant | Yes |
Cable | |
---|---|
Cable Type | Optipack Double Jacket Cable with 12 Fibres |
Fibre Count | 12 |
Fibre Type | Multimode 50/125 OM4 |
Diameter | Ø4mm outer / Ø2mm inner |
Jacket Type | Flame retardant (LSFH) |
CPR Rating | B2ca-s1a, d0, a1 |
Connectors | Left | Right |
Amount of Fibre | 12 | |
Gender | Male | |
Ferrule Type | PC | |
Connector Interface Standards | IEC 617547-7, TIA 604-5 – Type MPO | |
Insertion loss max (dB) | 0.35 | |
Insertion loss typical (dB) | 0.10 | |
Return loss (dB) | >30 | |
(Min. mating cycles) | 100 | |
Tensile load | 50 N |
Part Numbers
Part Numbers
Part Number | Description |
---|---|
85166274 | 3m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166275 | 5m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166280 | 7m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166281 | 10m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166282 | 12m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166283 | 15m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85179962 | 17m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166284 | 20m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184366 | 22m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166285 | 25m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184367 | 27m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166286 | 30m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184368 | 32m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166287 | 35m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184369 | 37m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166288 | 40m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184370 | 42m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166289 | 45m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85184385 | 47m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
85166290 | 50m Base-12, Polarity B, MTP Pro Male (pinned) elite to MTP Pro Male (pinned) elite, OM4, Heather Violet, Ø4.0mm |
