IANOS MTP-MTP Patch Module, from HUBER+SUHNER, is designed to enable straight-through patching of MTP cables in Base 8, 12 & 24 applications.
Categories: Connectivity, Whitespace Connectivity
HUBER+SUHNER IANOS MTP-MTP Patch Modules
MTP multimode fibre patching modules

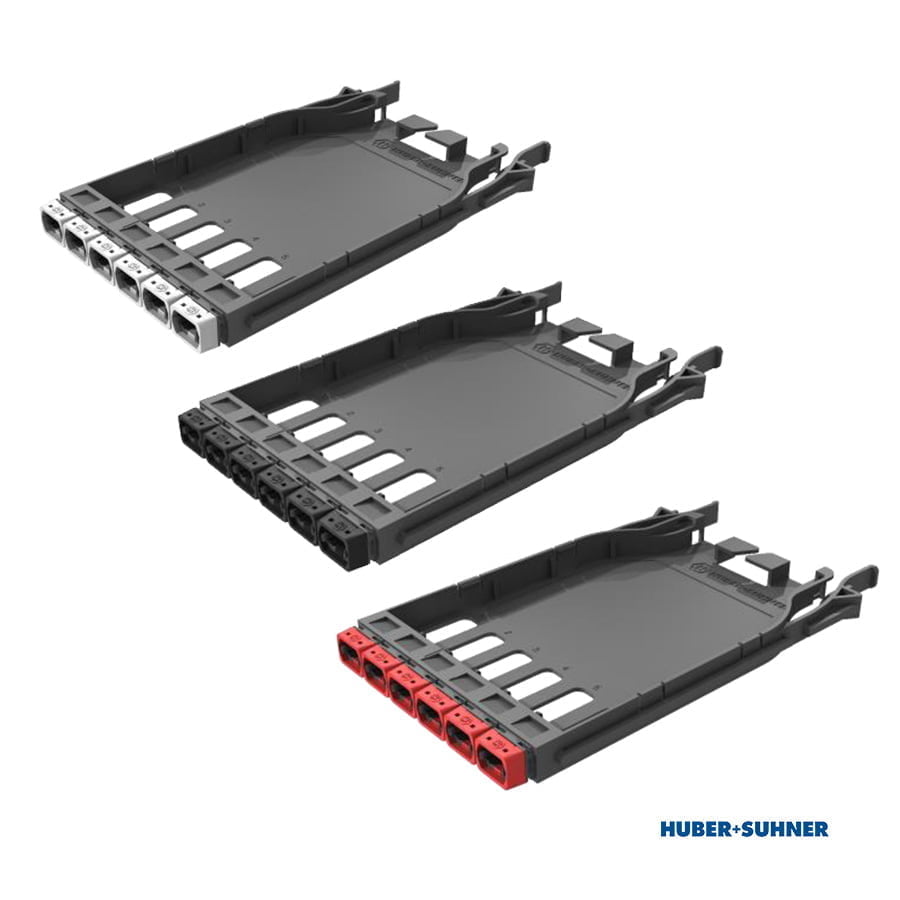

The IANOS MTP-MTP Patch Module is designed to provide MTP patching for the HUBER+SUHNER IANOS fibre management system. Its single-module design is compatible with all High Density and Medium Density chassis and is fast to install without the need for tools. The MTP-MTP Patch Module is designed to facilitate end-to-end parallel optics using Base 8, 12 or 24 connectivity and enables patching to the transceiver. The MTP adapters are colour coded to allow visual confirmation of the connectivity of the MTP adapter: Black with grey shroud MTP8, black with black shroud MTP12 and black with red shroud MTP24.
Features & Benefits
Features & Benefits
- 6x MTP port patching module designed for MTP8, MTP12 or MTP24.
- Fast and tool-less installation.

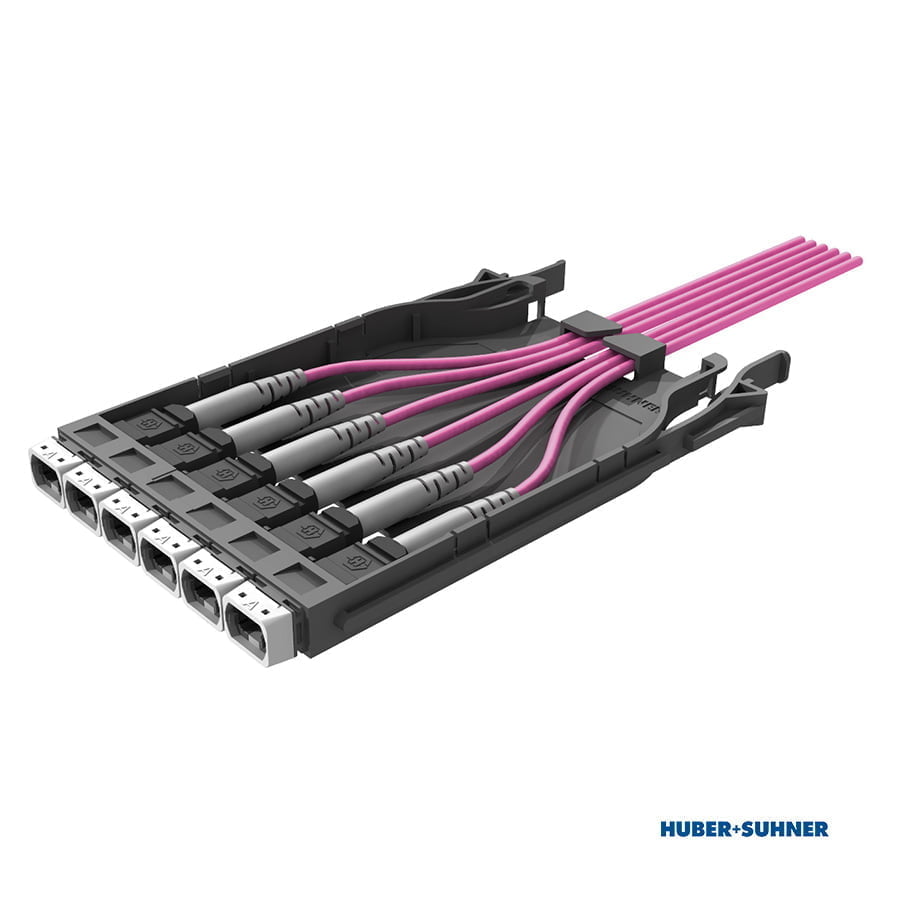

- Facilitates patching to transceiver.
- Compact and robust plastic construction.
- Compatible with IANOS EDR 1U/ 4U, EDR zero space chassis and IANOS Lite chassis.
- Colour coded MTP adapters.
Specifications
Specifications
Technical Data
| Description | Value | ||
|---|---|---|---|
| Base 8 | Base 12 | Base 24 | |
| Product Family | IANOS® | ||
| Suitable for | EDR chassis, EDR zero space chassis and IANOS Lite chassis | ||
| Dimensions (W x D x H) | 97 x 165 x 12 mm / 3.81 x 6.5 x 0.47 in | ||
| Weight | 45 g / 1.59 Oz | ||
| Material | PC/ABS | ||
| Colour | Black (RAL 9005) | ||
| Number of adapters | Front: 6x MTP8 adapter Rear: N/A | Front: 6x MTP12 adapter Rear: N/A | Front: 6x MTP24 adapter Rear: N/A |
| Adapter types | Front: MTP8 adapter KeyUp / KeyDown (reversible to KeyUp / KeyUp if needed) Rear: N/A | Front: MTP12 adapter KeyUp / KeyDown (reversible to KeyUp / KeyUp if needed) Rear: N/A | Front: MTP24 adapter KeyUp / KeyDown (reversible to KeyUp / KeyUp if needed) Rear: N/A |
| Adapter colours | Front: Black adapter with grey shroud (MTP8) Rear: N/A | Front: Black adapter with blank shroud (MTP12) Rear: N/A | Front: Black adapter with red shroud (MTP24) Rear: N/A |
| Ferrule material | MTP: Composite | ||
Environmental Data
| Characteristics | Value |
|---|---|
| Free of halogen | Yes |
| 2011/65/EC (RoHS) | Fully compliant |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85120991 | IANOS patching single module, 6 x MTP type A adapters, grey shroud and black body |
| 85116941 | IANOS patching single module, 6 x MTP type A adapters, black shroud and black body |
| 85072931 | IANOS patching single module, 6 x MTP type A adapters, red shroud and black body |
| 85120992 | IANOS patching single module, 6 x MTP type A adapters, grey shroud and green body |
| 85120993 | IANOS patching single module, 6 x MTP type A adapters, black shroud and green body |
| On Request | IANOS patching single module, 6 x MTP type A adapters, red shroud and green body |
