More About This Product
The IANOS Base 2 LC-LC Patch Module, from HUBER+SUHNER, is a single-module that enables LC-LC patching within the IANOS management system. The LC-LC module provides straight-through LC patching that allows trunk cables to be connected directly to patch cords.

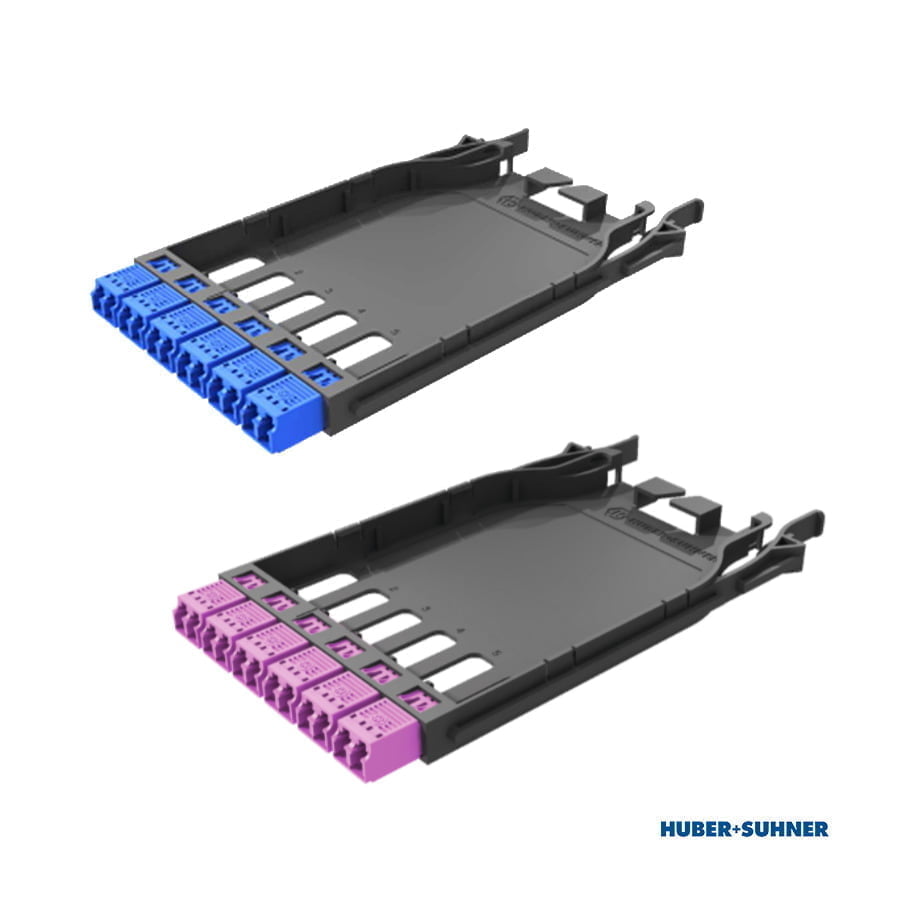

HUBER+SUHNER IANOS Base 2 LC-LC Patch Module
LC-LC Patch Module for OS2 & OM4 fibres
The HUBER+SUHNER IANOS Base 2 LC-LC Patch Module provides a fast plug-and-play alternative to fusion splicing, enabling straight-through patching of LC-LC OS2 and OM4 fibre cables.
This single-module that facilitates patching directly to the transceiver through 6 x LC-duplex patching adapters. These adapters are colour coded to the type of fibre cable being connected, be it for Singlemode OS2, Multimode OM3 or OM4 applications.
This compact module offers fast and tool-less installation and is compatible with IANOS Chassis for High Density or Medium Density applications.
Features & Benefits
Features & Benefits
- 6x LC-duplex patching module.
- Fast and tool-less installation.
- Facilitates patching to transceiver.
- Compact and robust plastic construction.
- Compatible with IANOS EDR 1U/ 4U and EDR zero space chassis.
- Colour coded LC adapters.
Specifications
Specifications
Technical Data
| Description | Value |
|---|---|
| Product family | IANOS ® |
| Suitable for | EDR chassis, EDR zero space chassis and IANOS Lite chassis |
| Dimensions (W x D x H) | 97 x 172 x 12 mm (3.81 x 6.77 x 0.47 in) |
| Weight | 50g / 1.76 Oz |
| Material | PC/ABS |
| Colour | Black (RAL 9005) |
| Number of adapters | Front: 6x LC-duplex adapter Rear: N/A |
| Adapter types | Front: LC-duplex Rear: N/A |
| Adapter colours | Front: Blue (SM/PC) Green (SM/APC) Heather violet (MM/OM4) Rear: N/A |
| Ferrule material | LC: Zirconia ceramic |
Environmental Data
| Characteristics | Value |
|---|---|
| Free of halogen | Yes |
| 2011/65/EC (RoHS) | Fully compliant |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85072924 | IANOS patching single module, 6 x LC UPC duplex, SM |
| 85073353 | IANOS patching single module, 6 x LC APC duplex, SM |
| 85073355 | IANOS patching single module, 6 x LC duplex, OM4 |
| 85103086 | IANOS patching single module, 6 x LC UPC shuttered duplex, SM |
| On Request | IANOS patching single module, 6 x LC APC shuttered duplex, SM |
| On Request | IANOS patching single module, 6 x LC shuttered duplex, OM4 |
| 85083805 | IANOS patching single module, 6 x SC, SM or OM4 |
| 85111145 | IANOS patching single module, 6 x SC APC, SM |
