Vented Server Cabinets with Height Adjustable Exhaust Duct

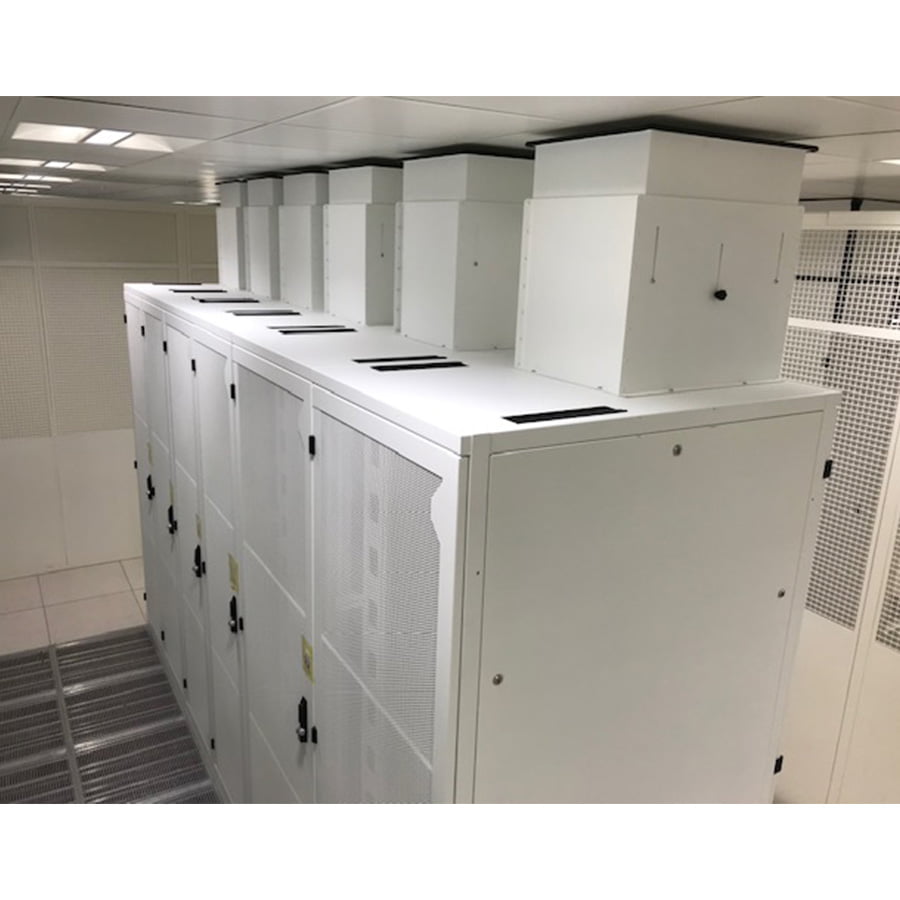

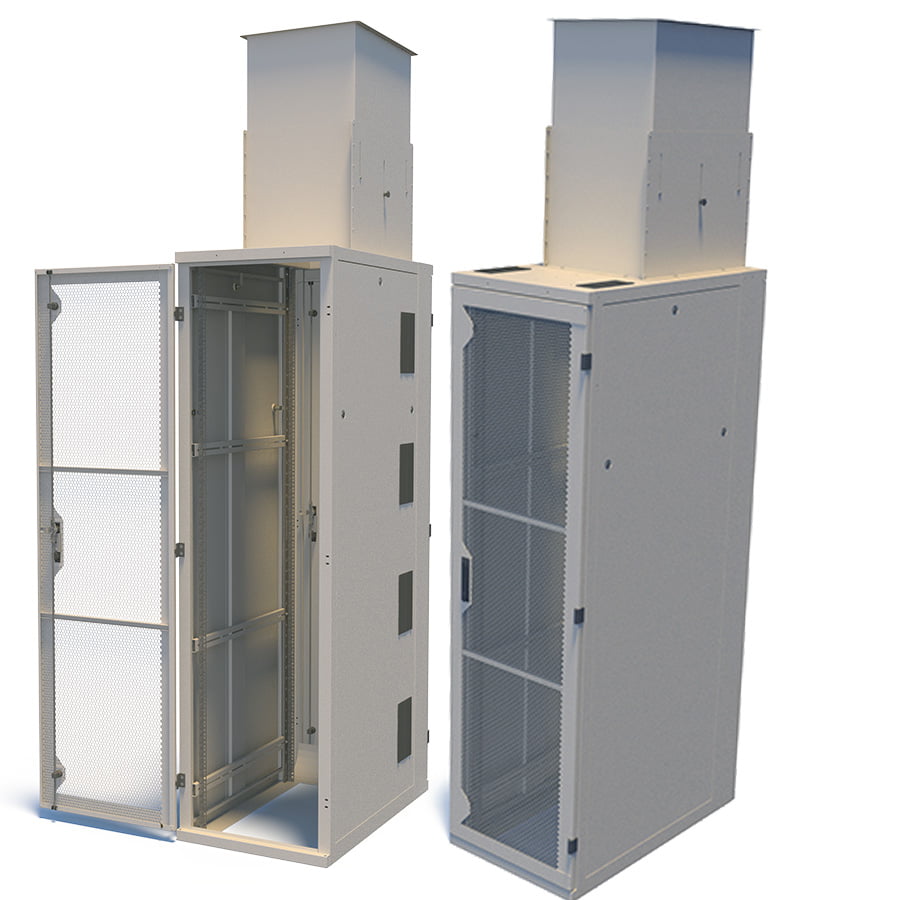

EDP Chimney Server Rack is a range of vented server cabinets that feature a height adjustable exhaust duct fitted to the roof panel and directs hot exhaust air directly into the ceiling duct.

Chimney Server Racks are available in four rack heights (42U, 46U, 47U & 50U), two widths (600mm & 800mm) and three depths (800mm, 1000mm & 1200mm).

Cabinets are delivered fully assembled and fitted with two pairs of fully adjustable 19″ mounting profiles. Doors are supplied with swing handles and 3-point locking, front doors are mesh with an 80% open area while rear doors are solid and sealed to IP54. Locking side panels can be removed for easier access to equipment during the installation process and are also sealed to IP54. There is also the option of having four brushed cable entries on the right hand side panel. All panels and doors are earthed.

There is a large cable aperture in the base allowing easy access for cabling. Infill panels with cable aperture holes are supplied with 800mm wide cabinets. There are 2x PDU cable trays fitted to the rear corner posts (one per side). An air scoop is fitted in the base at the rear that helps direct hot air upwards. Fitted to the roof panel is the height adjustable exhaust duct that comes with a bubble seal gasket. There are also brushed cable entries within the roof panel.

Cabinets are powder coated in white as standard with black available as an option. Other colours are available on request if a custom finish is required.

Racks conform to the following standards: IEC 60297-3, EIA 310-D and BS 3192.
