EDP RSP Wall Boxes are a range of wall mount network cabinets that have removable side panels to aid equipment access and installation. The range is available in a choice of 6 RU heights and four depths.
EDP RSP Wall Boxes
Range of removable side panel wall boxes

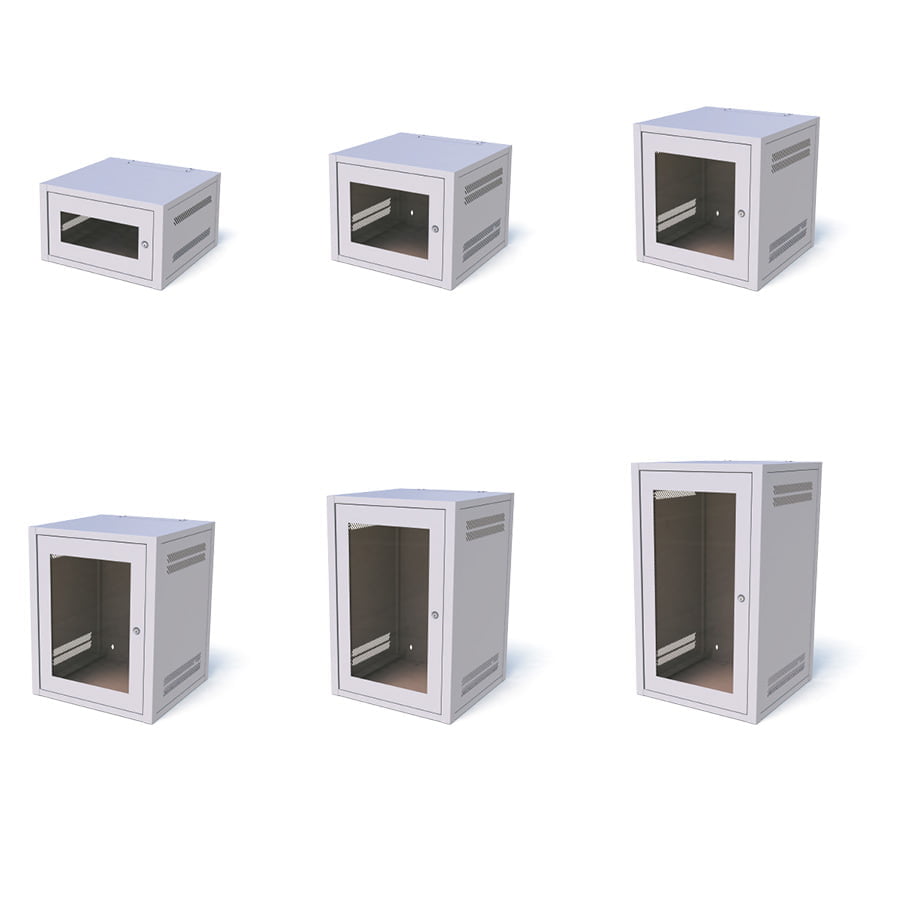

EDP RSP Wall Boxes are a range of wall mount cabinets that have removable side panels. Available in 6 RU heights and four different depths these 600mm wide cabinets can be utilised for a multiple of computing or networking needs.

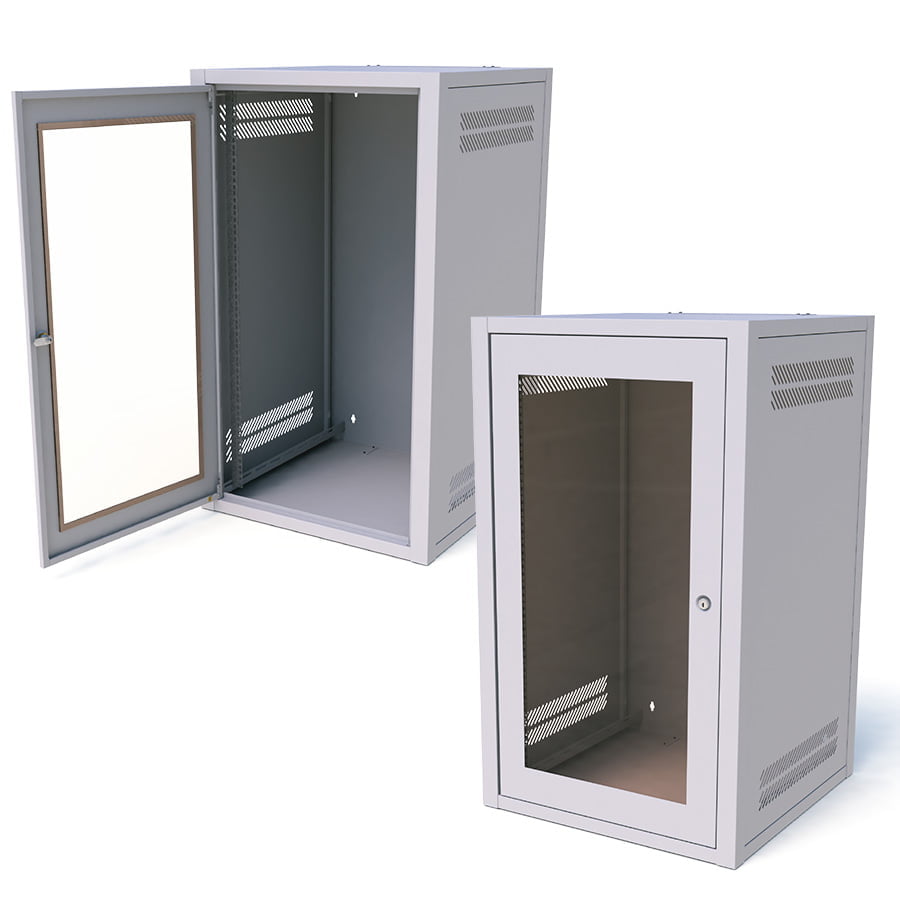

Available in heights from 6U to 21U and depths from 400mm to 700mm deep, the EDP RSP Wall Boxes feature a quick release front door that has an inset acrylic panel and can be hinged to the left or right. Fully removable vented side panels that are fitted with internal latch are easily removed to aid access to mounted equipment. Fitted with one set of fully adjustable 19″ profiles at the front for equipment installation. Removable gland plates located at the top or bottom provide cable access.
Cabinet is supplied in grey powder coat as standard with black optionally available.
There is also a range of accessories that includes:
- 1U Solid modem shelves in two depths (190mm or 300mm)
- 2U Vented modem shelves in two depths (300mm or 400mm)
- Choice of two 19″ fan chassis fitted with either 2 or 3 fans
- Various PDU options
- Earthing kit
- Cage nut kit
Features & Benefits
Feature & Benefits
- Quick release front door with inset acrylic panel can be hinged left or right.
- Fully removable vented side panels fitted with latch located on inside.
- Fitted with 1 set of fully adjustable 19” profiles at front.
- Removable gland plate for cable access in the top & bottom.
- Cabinet supplied powder coated grey as standard or black optional.
- Conforms to the following standards:
- IEC 297-2
- DIN 41494-7
- DIN 41491-1
- BS 5850/3192
Specifications
Specifications
| Width | Depth | U Height | Height |
|---|---|---|---|
| 602mm | 400/500/600/700mm | 6U | 353mm |
| 602mm | 400/500/600/700mm | 9U | 487mm |
| 602mm | 400/500/600/700mm | 12U | 620mm |
| 602mm | 400/500/600/700mm | 15U | 753mm |
| 602mm | 400/500/600/700mm | 18U | 887mm |
| 602mm | 400/500/600/700mm | 21U | 1020mm |
Part Numbers
Part Numbers
400mm Deep
| Part Number | Description |
|---|---|
| TBA | 6U x 400 Deep RSP Wall Box |
| TBA | 9U x 400 Deep RSP Wall Box |
| TBA | 12U x 400 Deep RSP Wall Box |
| TBA | 15U x 400 Deep RSP Wall Box |
| TBA | 18U x 400 Deep RSP Wall Box |
| TBA | 21U x 400 Deep RSP Wall Box |
500mm Deep
| Part Number | Description |
|---|---|
| TBA | 6U x 500 Deep RSP Wall Box |
| TBA | 9U x 500 Deep RSP Wall Box |
| TBA | 12U x 500 Deep RSP Wall Box |
| TBA | 15U x 500 Deep RSP Wall Box |
| TBA | 18U x 500 Deep RSP Wall Box |
| TBA | 21U x 500 Deep RSP Wall Box |
600mm Deep
| Part Number | Description |
|---|---|
| TBA | 6U x 600 Deep RSP Wall Box |
| TBA | 9U x 600 Deep RSP Wall Box |
| TBA | 12U x 600 Deep RSP Wall Box |
| TBA | 15U x 600 Deep RSP Wall Box |
| TBA | 18U x 600 Deep RSP Wall Box |
| TBA | 21U x 600 Deep RSP Wall Box |
700mm Deep
| Part Number | Description |
|---|---|
| TBA | 6U x 700 Deep RSP Wall Box |
| TBA | 9U x 700 Deep RSP Wall Box |
| TBA | 12U x 700 Deep RSP Wall Box |
| TBA | 15U x 700 Deep RSP Wall Box |
| TBA | 18U x 700 Deep RSP Wall Box |
| TBA | 21U x 700 Deep RSP Wall Box |
