More About This Product

EDP 2-Part Wall Box is a flexible, easily installed wall mount cabinet available in 6 RU heights ranging from 6U to 21U.

SKU: N/ACategories: , ,

EDP 2-Part Wall Mount SOHO Rack

Flexible, two section wall box ideal for small office home office (SOHO)

The EDP 2-Part Wall Box is a range of wall mount cabinets which are the ideal solution for housing networking equipment in remote locations or for use in the SOHO market.

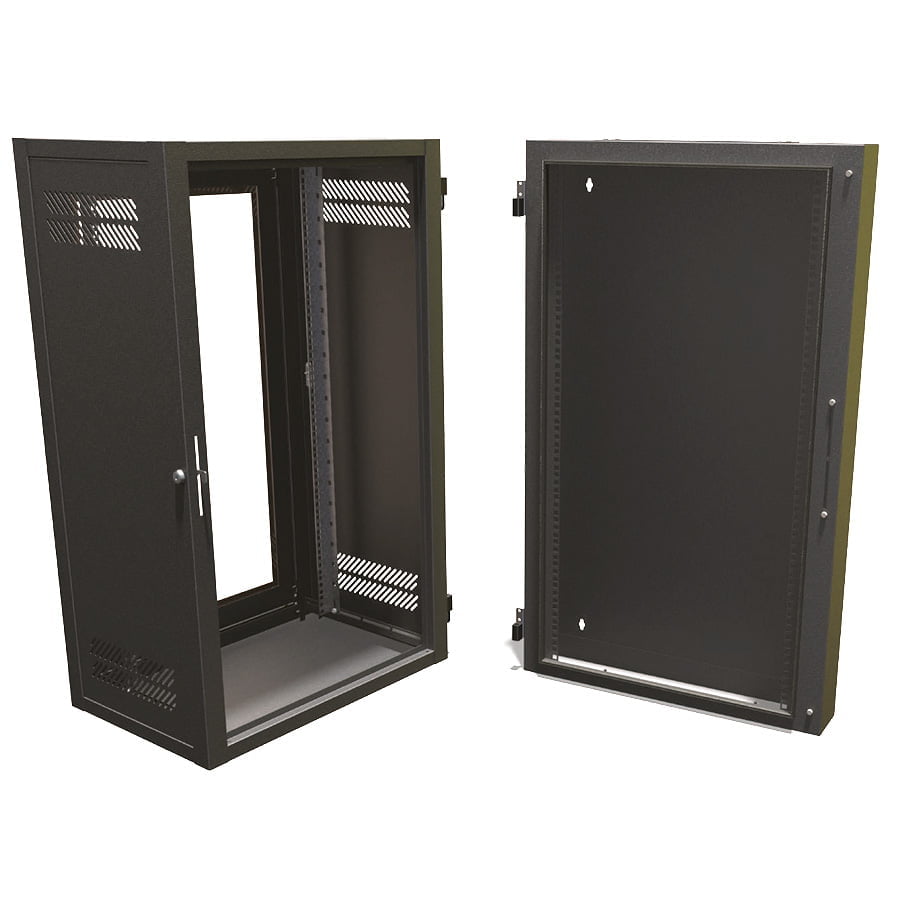

Available in six RU heights (6U, 9U, 12U, 15U, 18U or 21U) these 600mm wide wall boxes are 5oomm deep. Split into two sections, a 400mm deep front section and a 100mm rear section. The front section is fitted with a lift & drop hinge with cam lock that secures to the rear section. This ability to separate the two sections makes the installation of the wall box to the wall far easier, as the rear section can be handled and installed on its own.

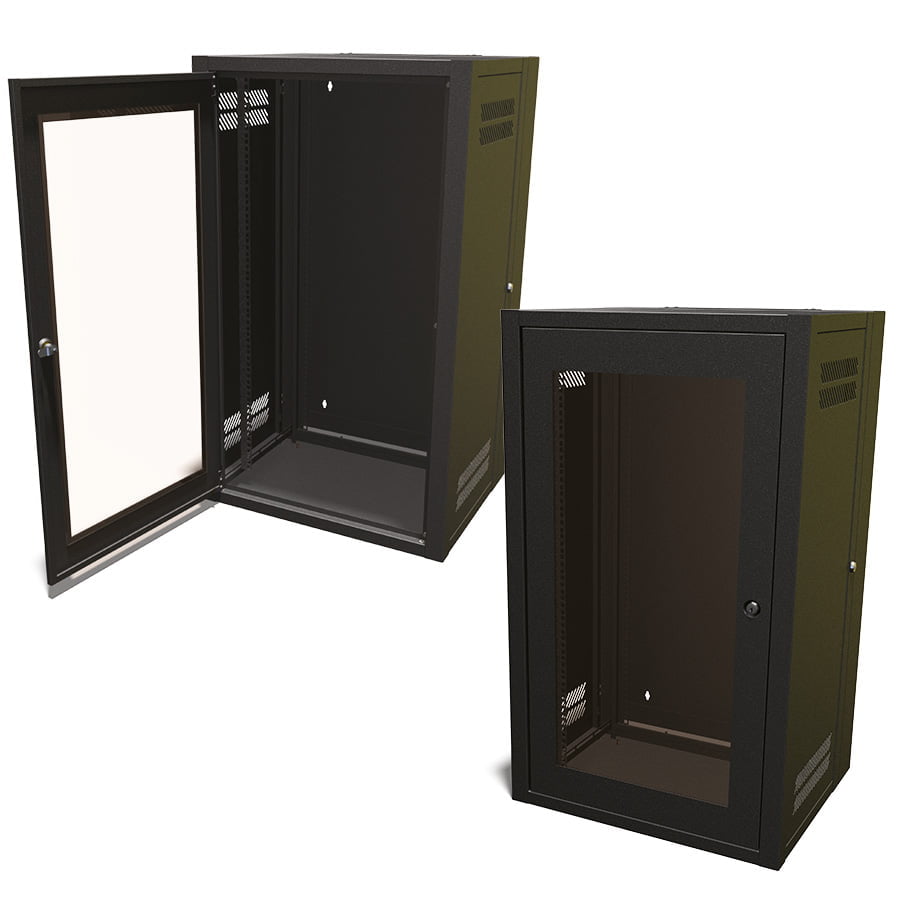

The 2-Part Wall Box also features a quick release front door that has an inset acrylic panel, the door can be hinged left or right. Fully removable vented side panels fitted with internal latch. The front 19″ profiles are fully adjustable while the rear profiles are fixed. Removable gland plates are fitted in the top and bottom of the rear box and can be removed to provide cable access.

Cabinets supplied powder coated in Black texture as standard with the option of Goose Grey.

There is also a range of accessories that includes:

  • 1U Solid modem shelves in two depths (190mm or 300mm)
  • 2U Vented modem shelves in two depths (300mm or 400mm)
  • Choice of two 19″ fan chassis fitted with either 2 or 3 fans
  • Various PDU options
  • Earthing kit
  • Cage nut kit

Features & Benefits

Features & Benefits

  • Available in 6 RU heights: 6U, 9U, 12U, 15U, 18U or 21U.
  • Quick release front door with inset acrylic panel can be hinged left or right.
  • Fully removable vented side panels fitted with latch located on inside.
  • Front box with lift & drop hinge with cam lock to secure to rear box, can be hinged either side.
  • Rear wall box 100mm deep with 4 mounting points, can be mounted on its own before adding front section & door.
  • Fitted with 1 set of fully adjustable 19” profiles at front, 1 fixed set at rear.
  • Removable gland plate for cable access in the top & bottom of rear box.
  • Cabinet supplied powder coated in Black texture or Goose grey.

Specifications

Specifications

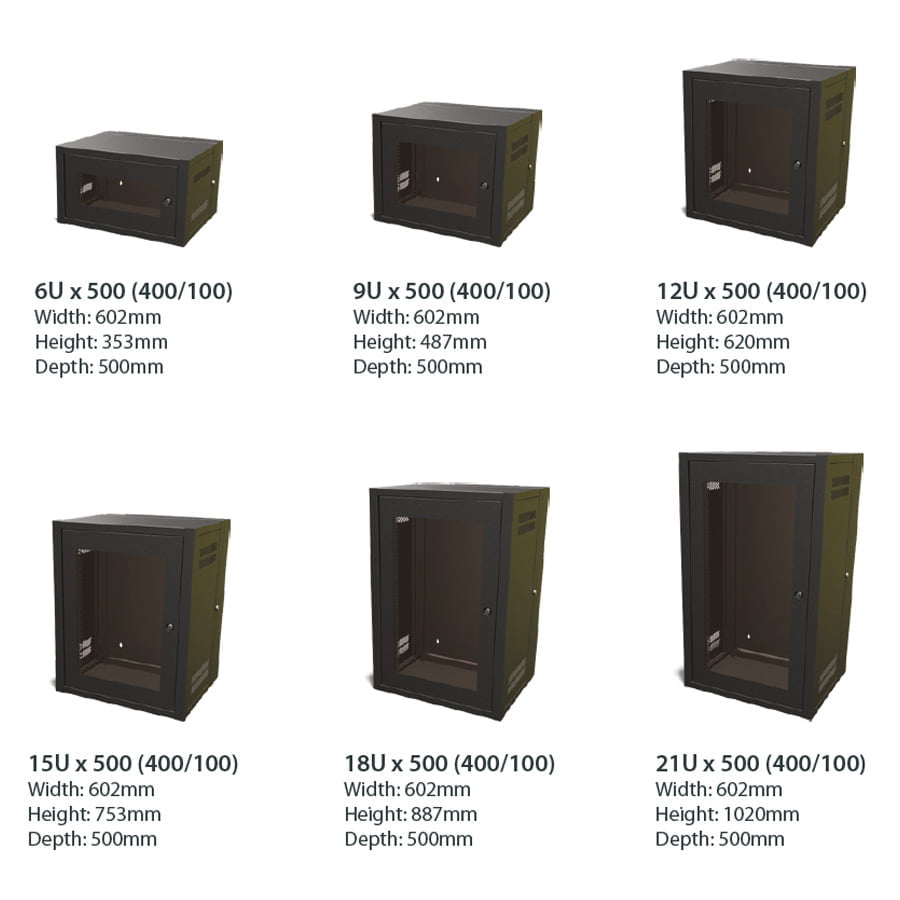

WidthDepthU HeightHeight
602mm500mm6U353mm
602mm500mm9U487mm
602mm500mm12U620mm
602mm500mm15U753mm
602mm500mm18U887mm
602mm500mm21U1020mm

Part Numbers

Part Numbers

Part NumberDescription
TBA6U 2-Part Wall Box
TBA9U 2-Part Wall Box
TBA12U 2-Part Wall Box
TBA15U 2-Part Wall Box
TBA18U 2-Part Wall Box
TBA21U 2-Part Wall Box
