More About This Product

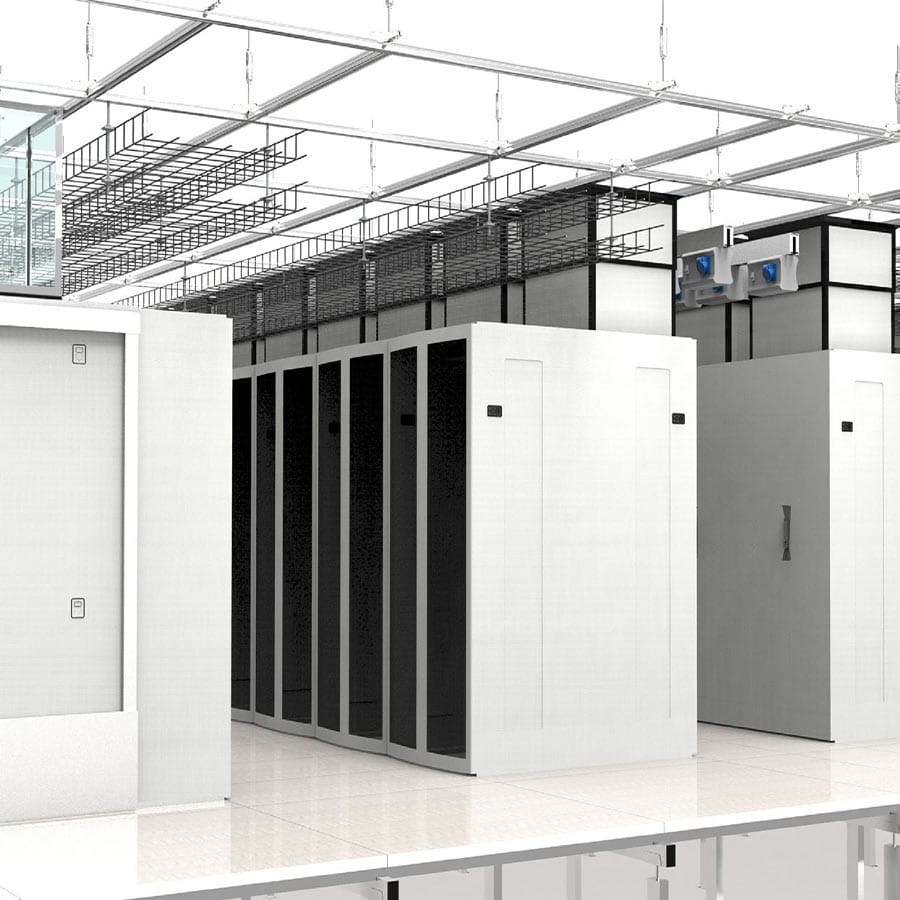

The unique suspended ceiling system, Bergvik Iso Flex-Grid, combines a drop-down ceiling with a structural ceiling grid. This approach creates a return airflow plenum and an infrastructure support grid in one integrated solution.
Dual-purpose Suspend Ceiling System
Drop Ceiling Combined with a Structural Grid

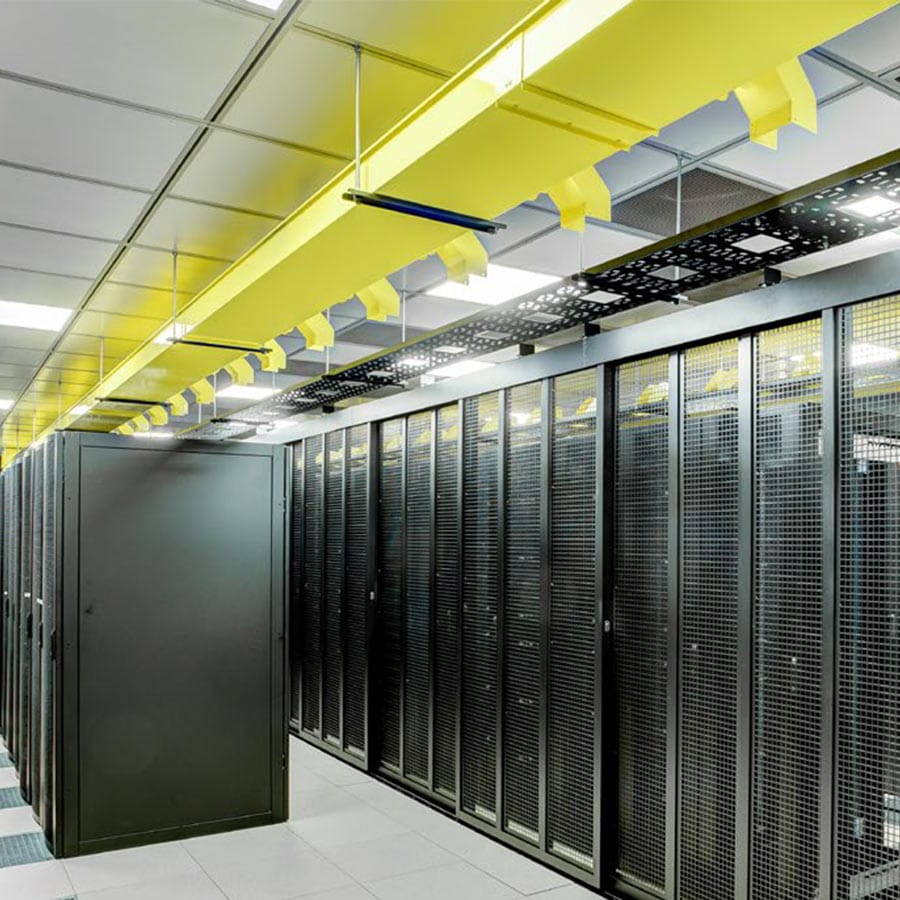

Bergvik’s Iso Flex-Grid is an engineered ceiling system that combines a drop ceiling with a structural grid to deliver a dual-purpose solution. The dropped ceiling creates an air ceiling plenum while enabling you to suspend infrastructure solutions—such as cable management, power busbars, and aisle containment solutions—directly from it, eliminating the need to pass through the inner ceiling to the building ceiling above. This design provides a cost-effective solution for environments like Data Centres, clean rooms, and labs.

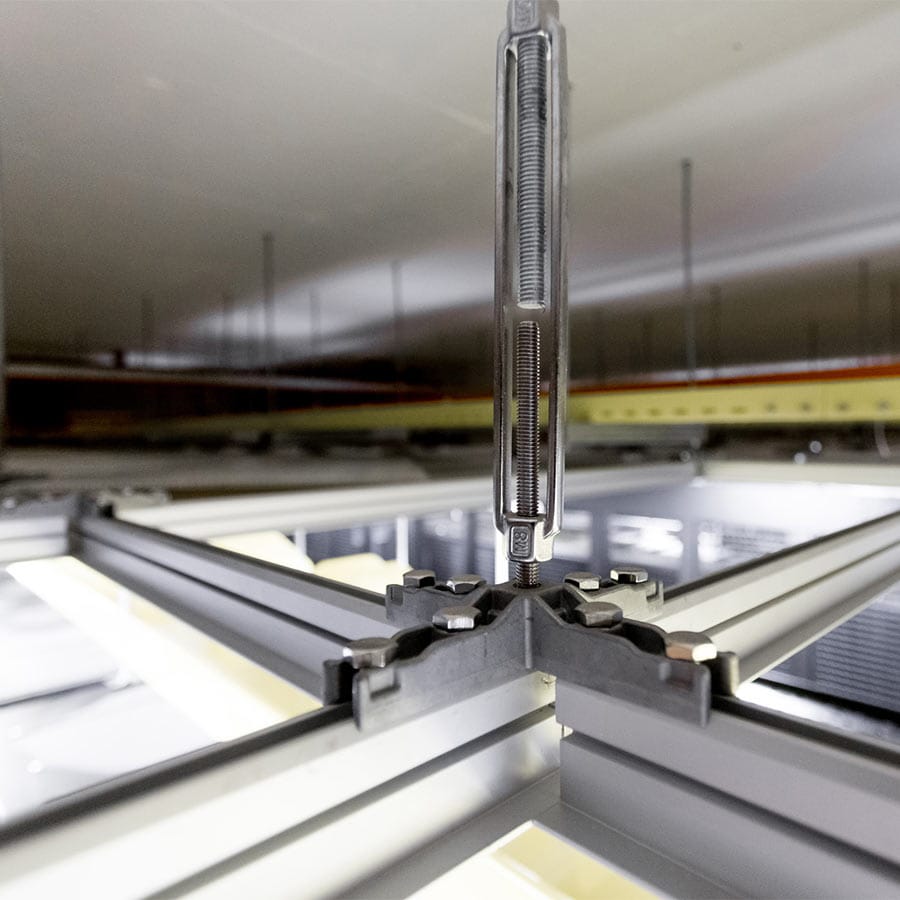

Bergvik constructs the Iso Flex-Grid using high-grade aluminium extrusions, which feature a continuous M10 threaded slot along the entire length of the underside of the grid. You can assemble the system with 2-, 3-, or 4-way die-cast connectors, offering great flexibility. Thanks to Iso Flex-Grid’s high load-bearing capacity, you don’t need additional attachments to the ceiling above. The design allows you to easily adapt the ceiling layout to accommodate row aisles, equipment, or other needs by positioning the profiles where they are most needed, rather than following a predetermined layout.
This flexibility enables you to tailor Iso Flex-Grid to meet specific project demands, including colour and finish, grid size, ceiling plenum height, ceiling material, and load capacities. Additionally, you can easily modify or supplement it later, allowing for adjustments according to future demands.
As a standard, Iso Flex-Grid is designed to handle point loads of up to 300 kg.
Features & Benefits
Features & Benefits
- The infrastructure supports a continuous M10 threaded interface.
- The design maximises optimum stiffness.
- The variable ceiling grid adapts to your needs.
- We offer a natural anodised aluminium finish as standard, with optional powder coat finishes available.
- The dual-purpose system serves both as a load-bearing grid and a drop-down ceiling.
- This solution saves costs by eliminating the need for additional suspension points.
- The design is extremely flexible, allowing countless overhead suspension points in all directions.
- You can position your server rack without worrying about location or dimensions.
- This setup provides a cost-effective platform for future expansions.
Specifications
Ceiling System in General
| Extrusion Material | Extruded Aluminium |
|---|---|
| Extrusion Alloy | 6106 |
| Temper | T1 |
| Profile Weight | 1Kg per lineal metre |
System Weight
| 1200x1200mm Grid Configuration | 2.8Kg /m2 |
|---|---|
| 1200x600mm Grid Configuration | 3.95Kg/m2 |
| 600x600mm Grid Configuration | 5.44Kg/m2 |
Point Load Ratings at L/250 (span/250)
- 63Kg at the centre of a 1200 mm span
- 89Kg at 305 mm from a supported connector
- 300Kg minimum directly under a supported grid connector
Specification Connector
| Material | Die Cast Metal |
|---|---|
| Connector Alloy | Zamak 5 |
| Turn Buckle Material | 304 Stainless Steel |
Specification Ceiling Panel
| Material | 4 mm aluminium alloyed panel with a core of Polyethylene, Type LDPE |
|---|---|
| Weight | 4.8Kg/m2 |
| Format | 1200×1200, 1200×600, 600×600 as standard. Customised sizes are available. |
| Fire Rating | UK, Test according to BS 476, Part 6. Class index 0. |
| Colour | White or black. Larger volumes can be delivered in any RAL colour. |
