More About This Product
EDP DC Server Rack is a range of 19″ server racks designed for use in Data Centres and Enterprise IT environments. Available in a standard range of three heights, two widths and two depths, the EDP DC Server Rack has the benefit of being able to be custom built to meet the exact size requirement and specification required.

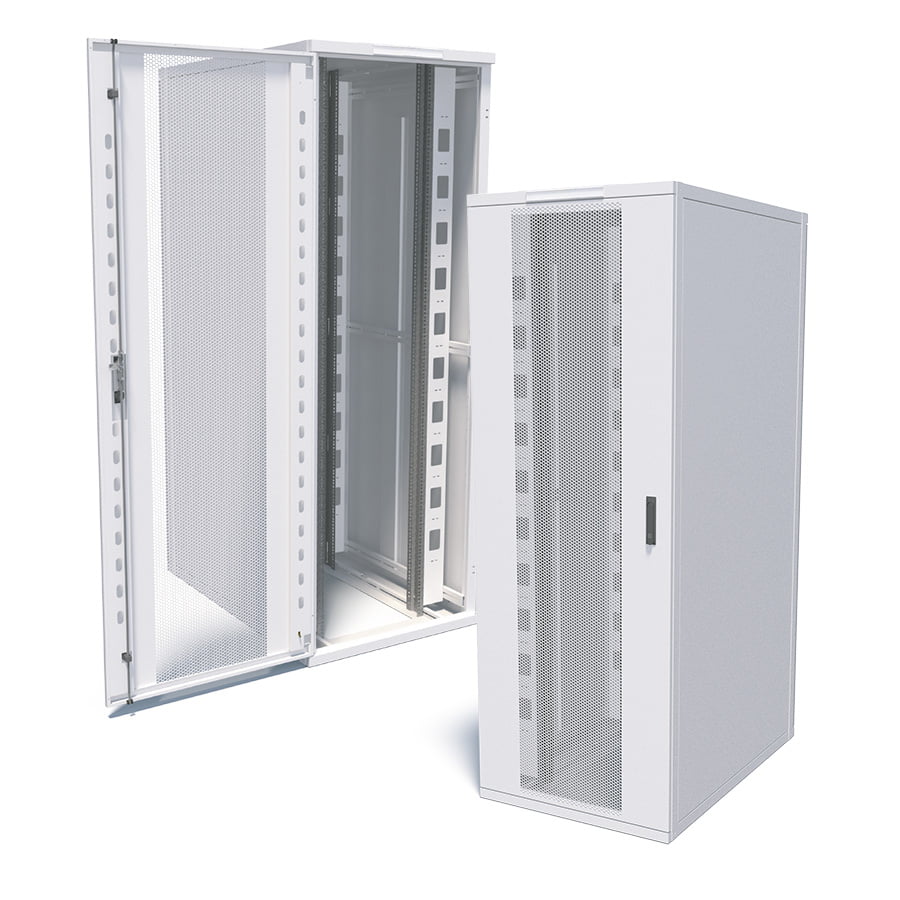

EDP DC Server Rack
Standard and Custom-built Data Centre Server Racks
EDP DC Server Rack is a range of 19″ server racks built for use in Data Centres and Enterprise IT Environments. Supplied fully assembled EDP DC Server Racks are available in a range of standard sizes: three heights (42U, 45U or 47U), two widths (600mm & 800mm) and two depths (1000mm & 1200mm), along with the option to have them custom-built to meet specific size and specification requirements.
As standard EDP DC Server Rack is supplied with front and rear mesh doors with an 80% open area, supplied with a swing handle and 3-point locking. On 800mm wide racks the rear door is replaced with a vented wardrobe style door for easier access. Full mesh doors are fully removable and can be hinged to the left or right.
Two pairs of fully adjustable, numbered 19″ mounting profiles make it easy to install IT equipment. Removable side panels help aid the installation of equipment making it easier to run cables etc. for security these are internally latch and can only be released from the outside by key. A large opening aperture in the rack’s base makes it easy to line racks up to cable openings in the raised floor without obstruction.
On 800mm wide server racks infill panels with cable aperture holes are fitted to the mounting frame, while vertical and horizontal brush air baffles surround the front mounting frame to help improve airflow management by preventing hot exhaust airflow from IT equipment circulating back to the front of the rack. Three brushed openings in the top panel of the rack (one to the rear and one on each side) aid infrastructure and connectivity coming into the rack from above or between racks.
A 10-way 80A earth bar is fitted in the base at the rear of the rack and all panels and doors are fully earthed. Racks are powder coat finish in any RAL colour, typically white, grey or black, but other custom colours are available upon request. To fully custom configure the racks a whole host of accessories are available.
Racks conform to the following standards: IEC 60297-3, EIA 310-D and BS 3192.
Accessories
EDP DC Server Racks have a host of accessories available which include:
- Wardrobe doors.
- Cable management trays and rings.
- Power trays.
- Range of shelf options.
- Plinths and castors.
- Rack mount and roof mount fan trays.
- PDUs
- And more, including custom design solutions.
Features & Benefits
Features & Benefits
- Racks are supplied fully assembled.
- 42U, 45U or 47U Heights as standard.
- Two widths 600mm or 800mm.
- Two depths 1000mm or 1200mm.
- Custom sizes available.
- Front & rear mesh doors 80% open area, supplied with swing handle & 3 point locking (600mm wide racks).
- 800mm wide racks supplied with vented wardrobe rear door.
- Full mesh doors are fully removable and can be hinged left or right.
- 2 Pairs of fully adjustable, numbered 19” mounting profiles.
- Side panels removable supplied with internal latching.
- Large cable aperture in base.
- Infill panels with cable aperture holes on 800mm wide racks.
- Three brushed cable entries in roof (one rear and one on each side).
- Vertical and horizontal brush air baffles surrounding front mounting frame.
- 10 way x 80A earth bar fitted in base at the rear.
- All panels & doors fully earthed.
- Cabinet powder coated white, other colours available on request.
- Wide range of optional accessories to custom configure racks.
- Conforms to the following standards:
- IEC 60297-3
- EIA 310-D
- BS 3192
Part Numbers
Part Numbers
600mm Wide DC Server Racks
| Part Number | Description |
|---|---|
| TBA | 42U 600mm wide DC Server Rack, 1000mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 45U 600mm wide DC Server Rack, 1000mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 47U 600mm wide DC Server Rack, 1000mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 42U 600mm wide DC Server Rack, 1200mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 45U 600mm wide DC Server Rack, 1200mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 47U 600mm wide DC Server Rack, 1200mm deep, with full mesh front and rear doors, locking removable side panels, two pairs of adjustable mounting profiles, vertical and horizontal air baffles, earth bar finished in white powder coat. |
800mm Wide DC Server Racks
| Part Number | Description |
|---|---|
| TBA | 42U 800mm wide DC Server Rack, 1000mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 45U 800mm wide DC Server Rack, 1000mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 47U 800mm wide DC Server Rack, 1000mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 42U 800mm wide DC Server Rack, 1200mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 45U 800mm wide DC Server Rack, 1200mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
| TBA | 47U 800mm wide DC Server Rack, 1200mm deep, with full mesh front door and vented wardrobe rear door, locking removable side panels, two pairs of adjustable mounting profiles, infill panels with cable apertures, vertical and horizontal air baffles, earth bar finished in white powder coat. |
