More About This Product

The AisleLok® Adjustable Mounting Post is designed and intended to be used at the end of an uneven row of cabinets to support the attachment of AisleLok® Sliding doors, Bi-Directional Doors, and Adjustable Rack Gap Panels.

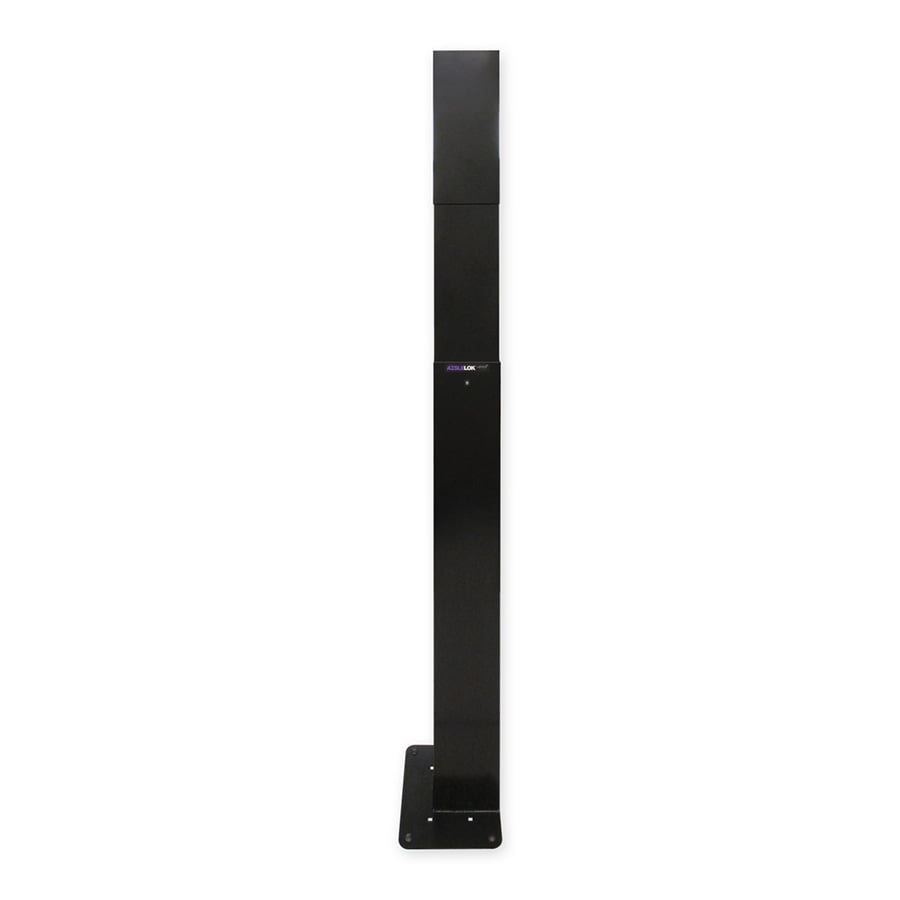

AisleLok Adjustable Mounting Post

Mounting Post for use with AisleLok Modular Containment System

The AisleLok Adjustable Mounting Post has been designed to be used in instances where uneven rows of cabinets mean it is impossible to fit some of the AisleLok components to the end rack.

By utilising the Adjustable Mounting Post it provides a vertical support structure from which the AisleLok Sliding Doors, Bi-Directional Doors or Rack Gap Panel can be attached. The mounting post attaches directly to the raised, or slab, floor and can be adjusted to different heights to accommodate racks from 42U to 50U.

The AisleLok Adjustable Mounting Post is constructed from 16 gauge steel, with the base plate constructed from 11 gauge steel. It is then finished in a smooth Black powder coat.

Features & Benefits

Features

  • Easily adjustable to a variety of heights (42U, 45U, 48U, and 50U).
  • A large bottom plate provides a strong structural support.
  • Replacement hinge bracket (for Bi-Directional
    Doors) available for retrofits.

Benefits

  • Provides a structural support surface for AisleLok® products to assist with aisle-end containment.
  • Modular design accommodates a variety of cabinets and data centre layouts.
  • Easy to assemble, installs in minutes.

Specifications

Specifications

  • Dimensions – 78.75”-84” x 10” x 12” (2000 – 2134mm x 254mm x 305mm).
