More About This Product
The use of blanking panels to blank unused rack space in 19” racks plays an important role in improving the efficiency of the cooling system. EZIBRUSH brush strip blanking panels provide a blanking solution for rack gaps where cables need to pass from the back of the rack to the front.

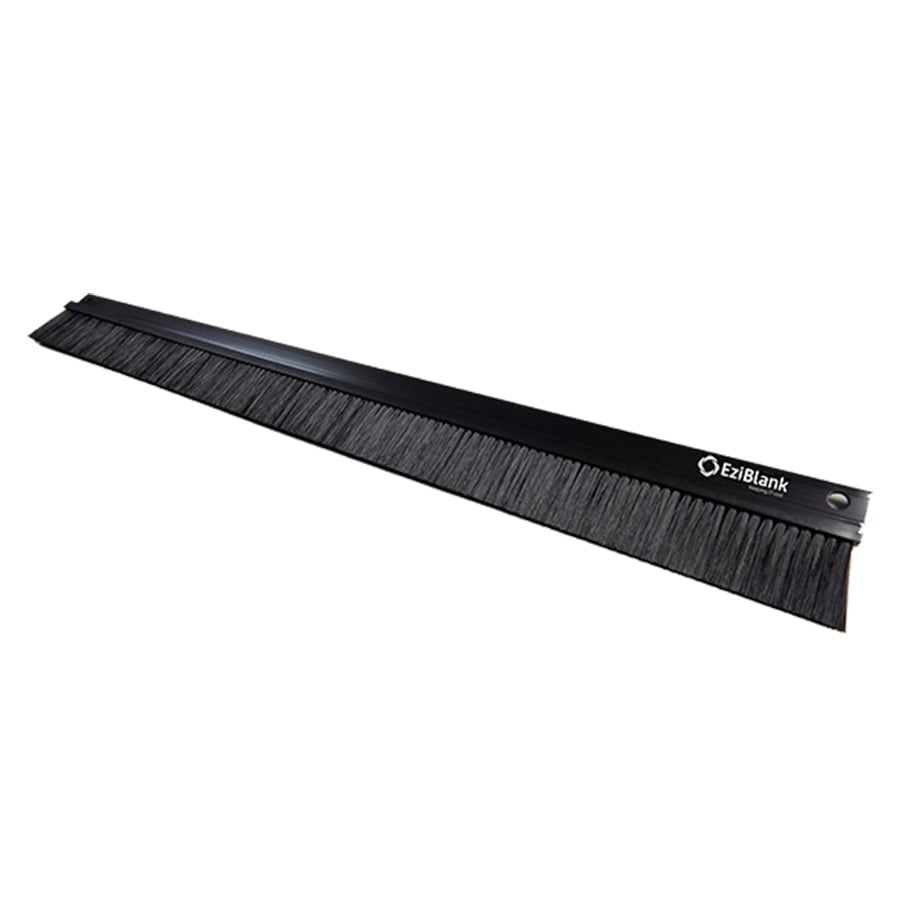

EziBlank EziBrush Brush Strip Blanking Panel

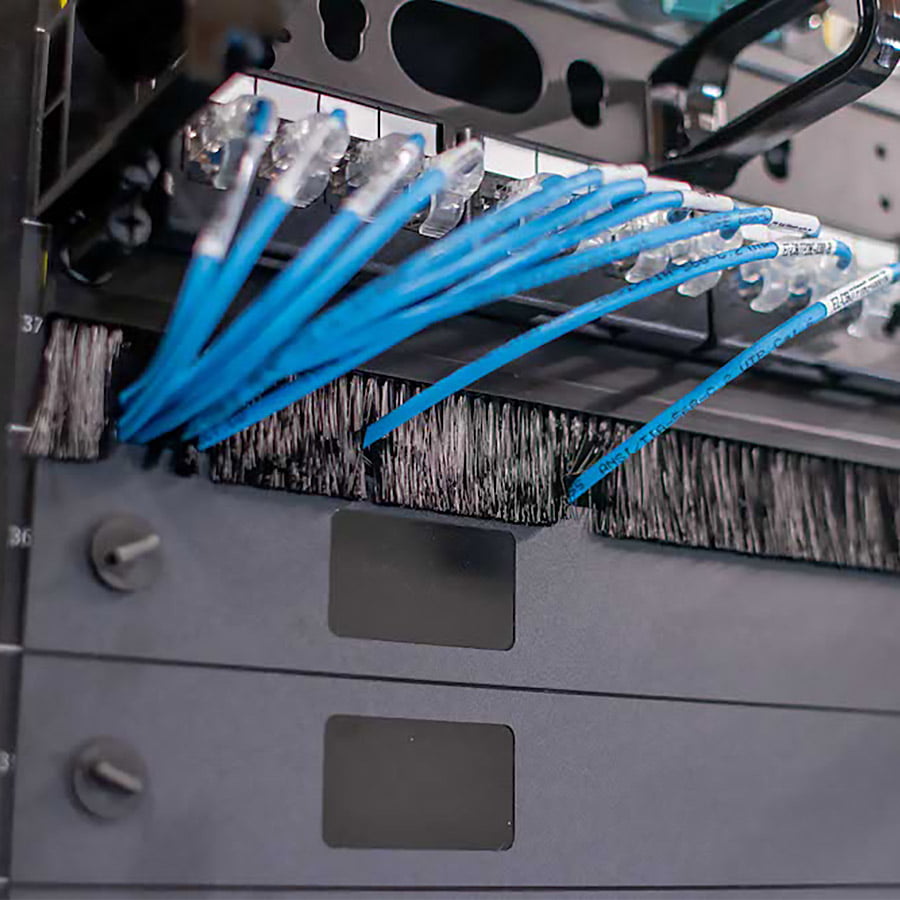

The EziBrush blanking panel is a uniquely designed 19” brush strip blanking panel that has the brush strip overhanging the 1U size by an extra 5mm, allowing simple management of air gaps when placed alongside other equipment. The design allows cables to pass through securely without significant airflow leakage.
The use of blanking panels to blank unused rack space in 19” racks plays an important role in improving the efficiency of the cooling system. Blanking panels prevent air recirculation and bypass airflow. By keeping hot exhaust air away from cool intake air it can extend the life of IT equipment, save energy and help reduce the carbon footprint of the data centre.
Whilst solid blanking panels, such as EziBlank, can seal unused rack space they prevent important structured cabling being passed to the front of the rack – EziBrush™ brush strip blanking panels provide the solution.
Features & Benefits
EziBrush™ Features & Benefits
- Allows cables to pass through without significant airflow leakage.
- Designed and manufactured to the highest International standards.
- Reusable, recyclable and flame retardant.
- Quick and simple to install, each brush strip blanking panel is supplied with mounting screws.
Specifications
EziBrush™ Specifications
- Part number: 46-EZIBRUSH
- 1RU (44,45mm) x 19” EIA310 (IEC 297)
- Dimensions: 19” 482mm (W) x 50mm (H) (30mm Brush)
- Fits: 19”wide EIA-310D (IEC297) compliant equipment mounting rails in all brands of rack. (Hole spacing 465.1mm x 6.5mm Ø)
- Body Material: PVC black
- Bristle Material in 1 row: PA6 black 0,20 mm, visible bristle height: 30 mm, plastic bristle, Thermal resistance from -50°C to +250°C.
- Meets UL 94 V-0 standard.
- Construction: Moulded body with inserted plastic bristle.
- Shipping Weight: 120g (4oz).
