More About This Product
The KoldLok® 3″ Extended raised floor grommet is designed to seal smaller openings around the perimeter of the computer room. Their flexible design allows them to be customised to suit other openings within the raised floor environment.

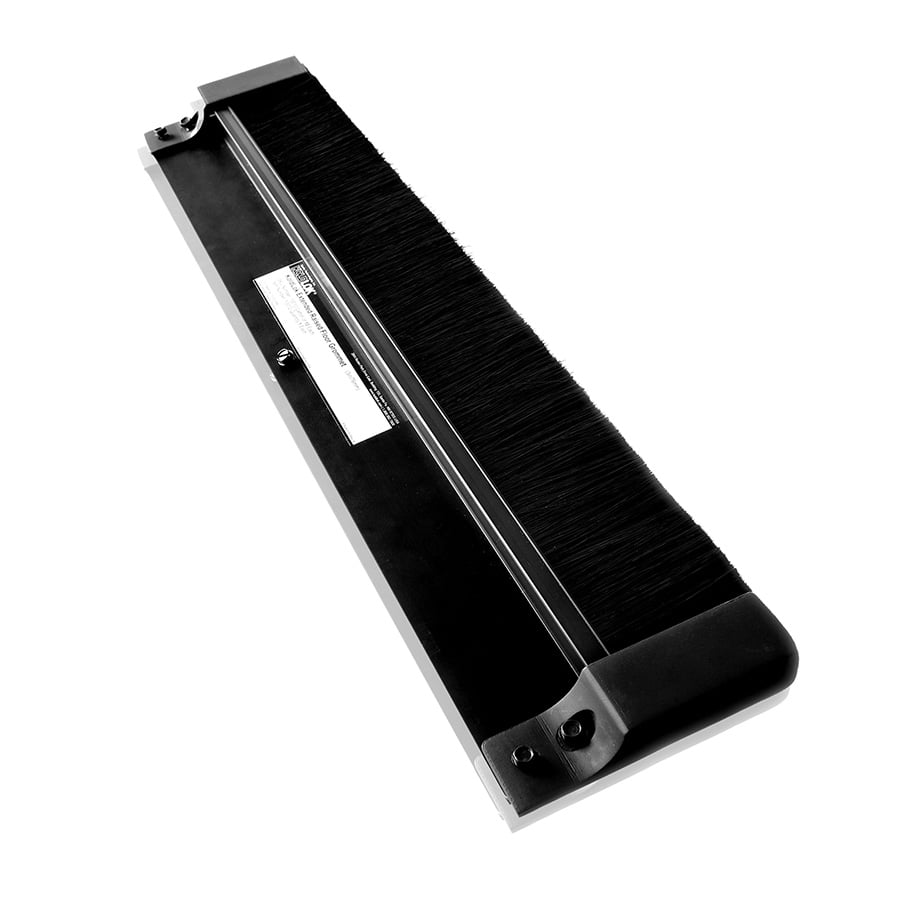

KoldLok® 3″ Extended Raised Floor Grommet
Part Number: 46-4000-10012
The KoldLok® 3″ Extended raised floor grommet, from Upsite Technologies, is a floor grommet designed to seal a variety of existing perimeter openings. It has the added flexibility of modification for large and unique openings.
Based on measurements at multiple data centres, between 50% – 80% of conditioned air is not reaching the air intake of IT equipment due to unsealed flooring openings. This lost air, known as bypass airflow, contributes to IT equipment hot spots, cooling unit inefficiencies and increasing infrastructure costs.
By sealing cable cut-outs with KoldLok® raised floor grommets you can address this bypass airflow, so drastically improving the cooling capacity within the Data Centre and preventing the detrimental effects bypass airflow has.
Sealing cable openings in raised floors is an important part of an airflow management strategy that enables the optimisation of cooling systems. The 4Rs of Airflow Management looks to improve airflow at Raised Floor, Rack and Row levels that enables changes to be made at Room level that leads to cooling optimisation and energy efficiency gains.

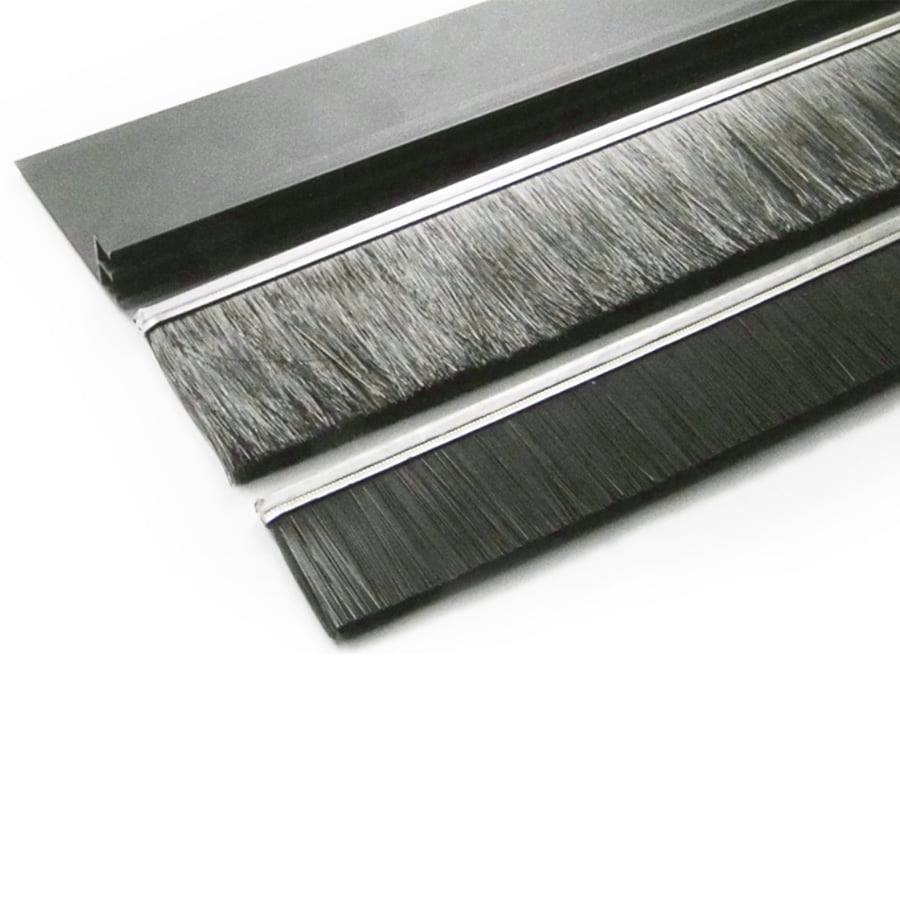

Extended grommets are also available in a 60″/1524mm length (46-4000-10097) which is supplied without end caps.
Features & Benefits
KoldLok® 3″ Extended Features
- The Extended raised-floor grommets are self-sealing, using multi-layered, different sized filaments which interweave and overlap.
- The fibres are cantilevered, so forcing them to close.
- All metal components within the grommets are anodised to resist corrosion.
- The standard length design is compatible with both 24″ and 600mm tiles
- The grommets can be modified to seal unique cable openings
- Maximum cut-out size sealed 24″ x 4″ (610mm x 102mm) on standard length. 60″ x 4″ (1524mm x 102mm) on longer length.
- Usable cable area of 22″ x 2½” (559mm x 64mm) on standard length. 60″ x 2½” (1524mm x 64mm) on longer length.
KoldLok® Benefits
- Increases existing cooling unit capacity
- Reduces the need to purchase additional cooling units
- Improves equipment reliability and extends equipment life
- Increases static pressure under the raised floor and improves cool air delivery through perforated tiles and floor grates
- Facilitates Cold Aisle / Hot Aisle best practices
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 46-4000-10012 | KoldLok 3″ Extended 24″ Standard Length |
| 46-4000-10097 | KoldLok 3″ Extended 60″ Longer Length |
