More About This Product
The KoldLok Mini Split Integral raised floor grommet seals small, 4″ x 6″ (100mm x 150mm) cable openings in new or existing raised floor environments.

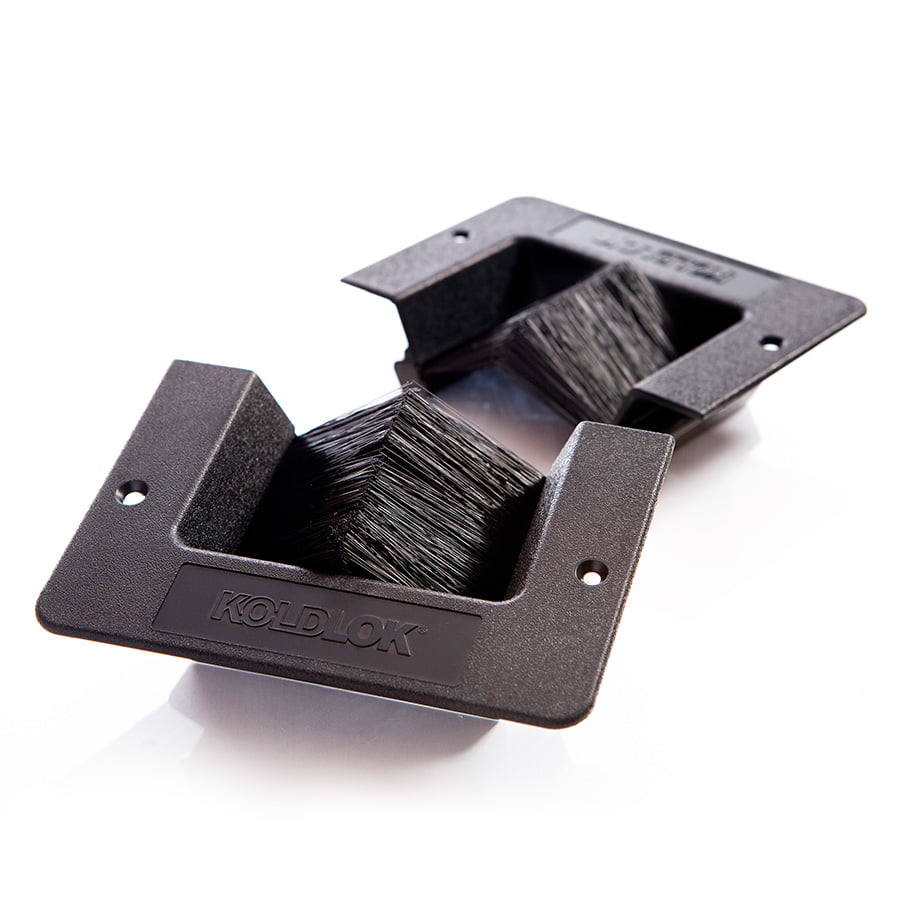

KoldLok Mini Split Integral
Part Number: 46-1000-10077
The KoldLok Mini Split Integral raised floor grommet seals small, 4″ x 6″ (100mm x 150mm) cable openings in new or existing raised floor environments. Designed with virtually all of the original KoldLok engineering, the KoldLok Mini Split Integral floor grommet is positioned at a lower price point.
Unlike the larger KoldLok Integral grommet, the KoldLok Mini only has a single layer of brushes. However, these are angled rather than flat. This design provides a highly effective seal against installed cables.
Based on measurements at multiple Data Centres, between 50% – 80% of conditioned air is not reaching the air intake of IT equipment due to unsealed floor openings – some as small as 4″ x 6″ (100mm x 150mm). This lost air, known as bypass airflow, contributes to IT equipment hot spots, cooling unit inefficiencies, and increasing infrastructure costs.
KoldLok raised floor grommets are designed to reduce bypass airflow and improve Data Centre cooling.
Features & Benefits
Features & Benefits of the KoldLok® Mini Split Integral
- Smaller size offers flexibility for data centres that have multiple cable opening sizes
- Meets smaller cable opening standards spefified in new data centre builds
- Cost-effective method of separating data cabling from power cabling
- KoldLok engineering at a lower price point
- Contains no loose or partially fastened parts that can become separated or fall through the raised-floor
- Impact resistant and durable
- Satisfies NFPA 75 Section 5-4.4 requirement by self-dressing the raw metal edges of raised-floor tile cable openings
- KoldLok products are compliant with Directive 2002/95/EC of the European Parliament and the Council on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS)
- Overall size of the Mini Split Integral: 7 11/16″ x 5 11/16″ x 1½” (195mm x 144mm x 38mm)
- Usable cable area of 5″ x 2½” (127mm x 64mm)
