Optipack Base-24 MTP-MTP fibre trunk cables, from HUBER+SUHNER, are high-density multi-stranded cables that form the backbone of the Data Centre’s fibre network. Available in various lengths and fan-outs, and to suit either Singlemode or Multimode fibre networks.

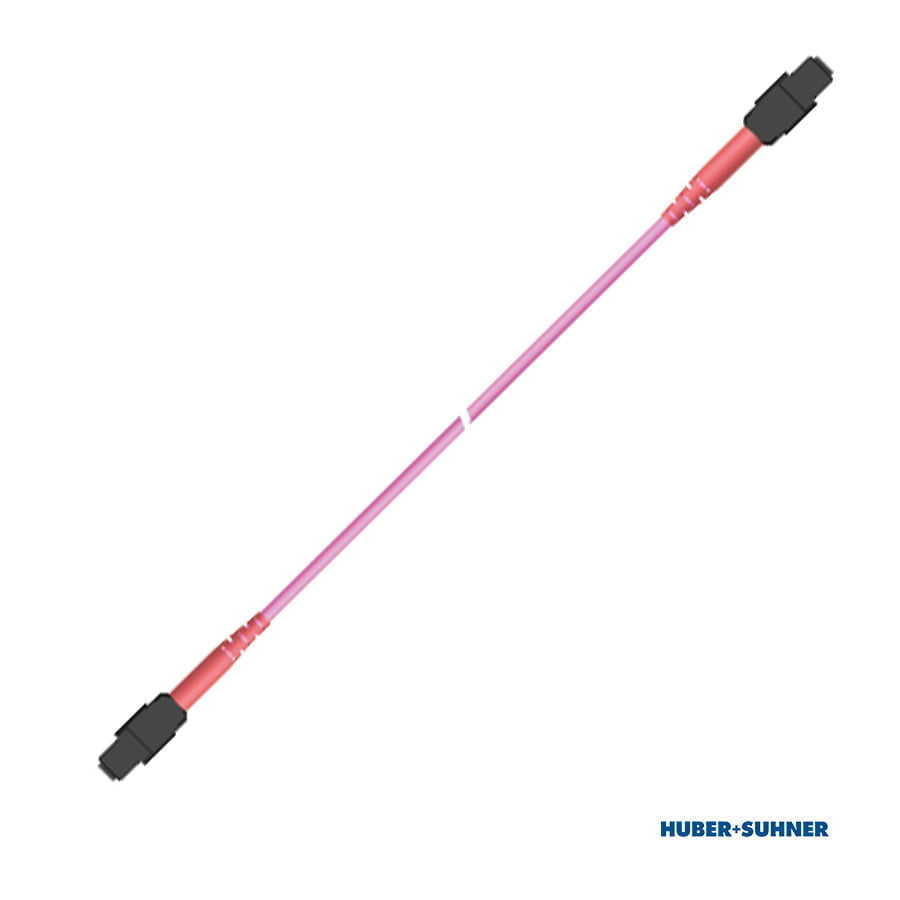

Base-24 MTP-MTP Fibre Trunk Cables

OS2 & OM4 Base-24 MTP-MTP Fibre Trunk Cables

HUBER+SUHNER Base-24 MTP-MTP fibre trunk cables are also offered as part of the Optipack range of pre-terminated fibre optic cables. They are high-density multi-stranded fibre trunk cables which form the backbone of the fibre network in Data Centres and Enterprise IT Rooms. Base-24 MTP-MTP fibre trunk cables allow users to build 10G links today that can be easily upgraded to 40G or 100G links using conversion modules, conversion harnesses or jumpers.

When combined with the HUBER+SUHNER IANOS system and the IANOS modules this upgrade process becomes even more simple enabling an easier and faster way to upgrade fibre networks to higher data rates.

HUBER+SUHNER fibre trunk cables are constructed using miniature 2mm fibre strands that are then over-sleeved by a secondary jacket. This design produces a fibre trunk cable that offers strength and robustness but with flexibility to be bend optimised and space saving by reducing cable diameter by up to 33%.

Available for Singlemode OS2 and Multimode OM4 networks these fibre trunk cables are available in lengths from 10m to 50m in 5m increments as well as being available in customer specific cable and fan-out lengths. Base-24 MTP trunk cables are CPR compliant to B2ca standard.

Base-8 and Base-12 MTP-MTP fibre trunk cables are also available.

Base-24 Optipack MTP-MTP Trunk Cables

Features & Benefits

Features & Benefits

  • Available with 8, 12 and 24 fibre strand sub-units for OS2 or OM4 networks.
  • Small outer-diameter for space saving / handling.
  • Terminated with MTP connectors.
  • Customer specific cable and fan-out lengths available.
  • Bend-optimised fibre as standard.
  • Braided sock as connector protection / pulling aid.
  • Supplied as an air ring or coiled on particle-free plastic cable spool.
  • 75% faster than splicing cables.
  • Colour coded MTP boots for easy and fast identification (MTP-8, -12, -24).
  • Metal-free indoor cable with LSFH™.
  • CPR Compliant, grade B2ca.

Specifications

Specifications

General

ApplicationData centre – Backbone trunk connections
Fibre TypeOS2E9/125 low bend (G.657 A2)
OM4G50/125 – OM4 low bend (IEC 60793-2-10 A1a.3)
Cable TypeMetal free indoor cable – Strain relieved aramid yarn
Cable Jacket ColourOS2Yellow
OM4Heather Violet



Construction

ConnectorsSide AMTP® 8/12/24 fibres (male / female)
Side BMTP® 8/12/24 fibres (male / female)



Optical Performance

ApplicationTested acc. toConditionValues
Connector Insertion LossIEC 61300-3-4*<0.35 dB
Return LossIEC 61300-3-6

OM4

SM>60 dB
OM4>30 dB



Environmental Data

ApplicationTested acc. toConditionValues
Temperature RangeIEC 61300-2-22During installation−10 to +50°C
In service−10 to +70°C
Storage conditions−20 to +70°C
Fire PerformanceCPR rating B2ca-s1a,d0,a1 or Dca-s1,d0,a1



Dimensions

ApplicationCondition8 Fibre12 Fibre24 Fibre48 Fibre72 Fibre96 Fibre144 Fibre
Cable Diameter

(mm)

Base 83.0n/a6.67.6n/a10.3n/a
Base 12n/a3.06.66.67.6n/a10.3
Base 24n/an/a3.0n/an/an/an/a



Base-8 Mechanical Data

ApplicationTested acc. toCondition24F

3 x MTP8

48F

6 x MTP8

96F

12 x MTP8

Max. Tensile Strength Cable (N)IEC 60794-1-2 E1During installation6008001400
In service4 x 1006 x 10012 x 100
Crush Resistance (N/dm)IEC 60794-1-2 E3Short-term5000
Long-term1000
Min. Bending Radius (mm)IEC 60794-1-2 E11During installation90110150
In service6070100
Tensile Strength Connector (N)IEC 60794-1-2 E150



Base-12 Mechanical Data

ApplicationTested acc. toCondition24F

2 x MTP12

48F

4 x MTP12

72F

6 x MTP12

144F

12 x MTP12

Max. Tensile Strength Cable (N)IEC 60794-1-2 E1During installation6008001400
In service4 x 1006 x 10012 x 100
Crush Resistance (N/dm)IEC 60794-1-2 E3Short-term5000
Long-term1000
Min. Bending Radius (mm)IEC 60794-1-2 E11During installation90110150
In service6070100
Tensile Strength Connector (N)IEC 60794-1-2 E150
