HUBER+SUHNER Optipack Base-8 MTP-MTP fibre trunk cables are high-density multi-stranded cables that form the backbone of the Data Centre’s fibre network. Available in various lengths and fan-outs, and to suit either Singlemode or Multimode fibre networks.

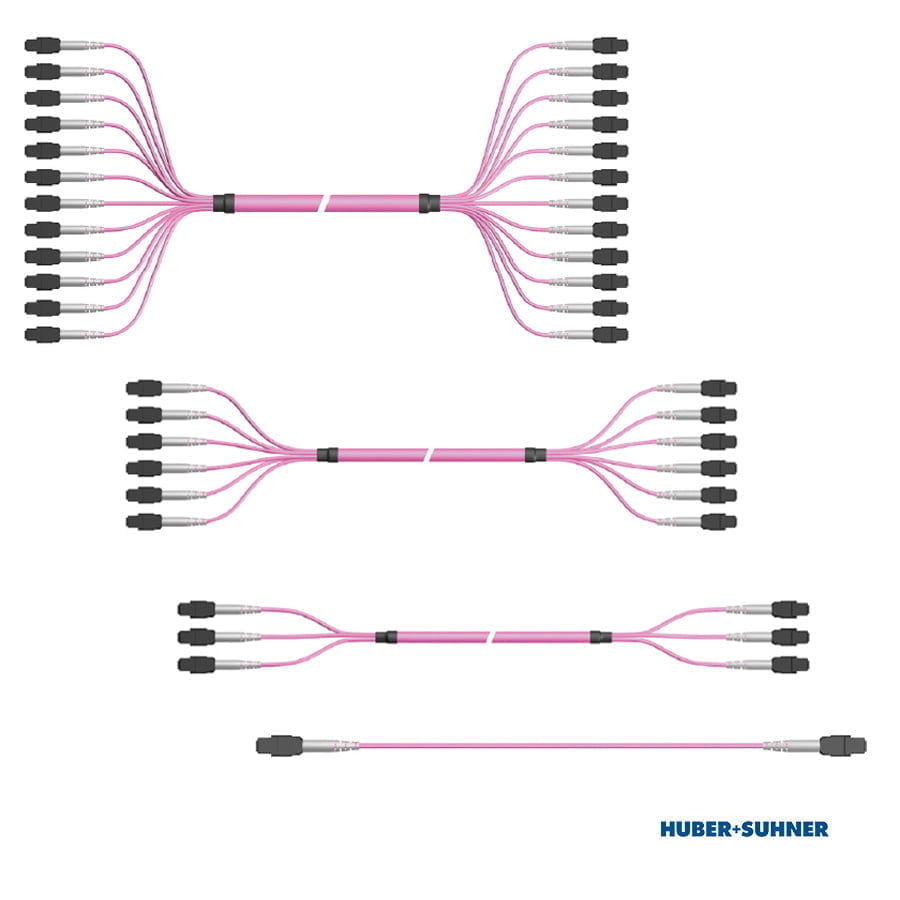

Base-8 MTP-MTP Fibre Trunk Cables
OS2 & OM4 Base-8 MTP-MTP Fibre Trunk Cables
Optipack Base-8 MTP-MTP fibre trunk cables, from HUBER+SUHNER, are high-density multi-stranded cables that form the backbone of the fibre network in data centres and enterprise IT rooms. They allow users to build 10G links today, which can be easily upgraded to 40G links tomorrow using 8 fibre MTP connectivity.
When combined with the HUBER+SUHNER IANOS system and the IANOS modules this upgrade process becomes even more simple enabling an easier and faster way to upgrade fibre networks to higher data rates.
HUBER+SUHNER trunk cables are constructed from miniature 2mm fibre strands that are then over-sleeved by a secondary jacket. The design offers strength and robustness but flexibility to be bend optimised and space saving by reducing cable diameter by up to 33%.
Available for Singlemode OS2 and Multimode OM4 networks the fibre trunk cables are available in lengths from 10m to 50m in 5m increments as well as being available in customer specific cable and fan-out lengths. All Base-8 trunk cables are CPR compliant to B2ca standard.
Base-12 and Base-24 MTP-MTP fibre trunk cables are also available.

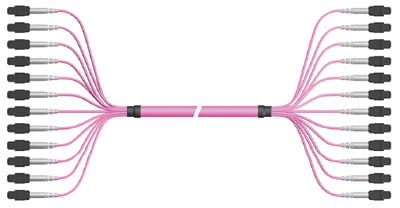

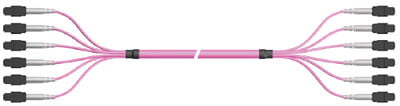

Base-8 Optipack MTP-MTP Trunk Cables
Features & Benefits
Features & Benefits
- Available with 8, 12 and 24 fibre strand sub-units for OS2 or OM4 networks.
- Small outer-diameter for space saving / handling.
- Terminated with MTP connectors.
- Customer specific cable and fan-out lengths available.
- Bend-optimised fibre as standard.
- Braided sock as connector protection / pulling aid.
- Supplied as an air ring or coiled on particle-free plastic cable spool.
- 75% faster than splicing cables.
- Colour coded MTP boots for easy and fast identification (MTP-8, -12, -24).
- Metal-free indoor cable with LSFH™.
- CPR Compliant, grade B2ca.
Specifications
Specifications
General
| Application | Data centre – Backbone trunk connections | |
|---|---|---|
| Fibre Type | OS2 | E9/125 low bend (G.657 A2) |
| OM4 | G50/125 – OM4 low bend (IEC 60793-2-10 A1a.3) | |
| Cable Type | Metal free indoor cable – Strain relieved aramid yarn | |
| Cable Jacket Colour | OS2 | Yellow |
| OM4 | Heather Violet |
Construction
| Connectors | Side A | MTP® 8/12/24 fibres (male / female) |
|---|---|---|
| Side B | MTP® 8/12/24 fibres (male / female) |
Optical Performance
| Application | Tested acc. to | Condition | Values |
|---|---|---|---|
| Connector Insertion Loss | IEC 61300-3-4* | <0.35 dB | |
| Return Loss | IEC 61300-3-6 OM4 | SM | >60 dB |
| OM4 | >30 dB |
Environmental Data
| Application | Tested acc. to | Condition | Values |
|---|---|---|---|
| Temperature Range | IEC 61300-2-22 | During installation | −10 to +50°C |
| In service | −10 to +70°C | ||
| Storage conditions | −20 to +70°C | ||
| Fire Performance | CPR rating B2ca-s1a,d0,a1 or Dca-s1,d0,a1 |
Dimensions
| Application | Condition | 8 Fibre | 12 Fibre | 24 Fibre | 48 Fibre | 72 Fibre | 96 Fibre | 144 Fibre |
|---|---|---|---|---|---|---|---|---|
| Cable Diameter (mm) | Base 8 | 3.0 | n/a | 6.6 | 7.6 | n/a | 10.3 | n/a |
| Base 12 | n/a | 3.0 | 6.6 | 6.6 | 7.6 | n/a | 10.3 | |
| Base 24 | n/a | n/a | 3.0 | n/a | n/a | n/a | n/a |
Base-8 Mechanical Data
| Application | Tested acc. to | Condition | 24F 3 x MTP8 | 48F 6 x MTP8 | 96F 12 x MTP8 |
|---|---|---|---|---|---|
| Max. Tensile Strength Cable (N) | IEC 60794-1-2 E1 | During installation | 600 | 800 | 1400 |
| In service | 4 x 100 | 6 x 100 | 12 x 100 | ||
| Crush Resistance (N/dm) | IEC 60794-1-2 E3 | Short-term | 5000 | ||
| Long-term | 1000 | ||||
| Min. Bending Radius (mm) | IEC 60794-1-2 E11 | During installation | 90 | 110 | 150 |
| In service | 60 | 70 | 100 | ||
| Tensile Strength Connector (N) | IEC 60794-1-2 E1 | 50 | |||
Base-12 Mechanical Data
| Application | Tested acc. to | Condition | 24F 2 x MTP12 | 48F 4 x MTP12 | 72F 6 x MTP12 | 144F 12 x MTP12 |
|---|---|---|---|---|---|---|
| Max. Tensile Strength Cable (N) | IEC 60794-1-2 E1 | During installation | 600 | 800 | 1400 | |
| In service | 4 x 100 | 6 x 100 | 12 x 100 | |||
| Crush Resistance (N/dm) | IEC 60794-1-2 E3 | Short-term | 5000 | |||
| Long-term | 1000 | |||||
| Min. Bending Radius (mm) | IEC 60794-1-2 E11 | During installation | 90 | 110 | 150 | |
| In service | 60 | 70 | 100 | |||
| Tensile Strength Connector (N) | IEC 60794-1-2 E1 | 50 | ||||
