More About This Product
EDP Europe’s range of manual server lifters and work positioners are available in powder coated mild steel or stainless steel. The “Easy Winch” system is used to raise and lower the load safely with the minimum of manual effort. These lifts are remarkably manoeuverable and extremely lightweight, all four wheels swivel and two are fitted with total stop brakes complete with toe guards. The laser cut design is not only very stylish but it is combined with high level stability and durability.

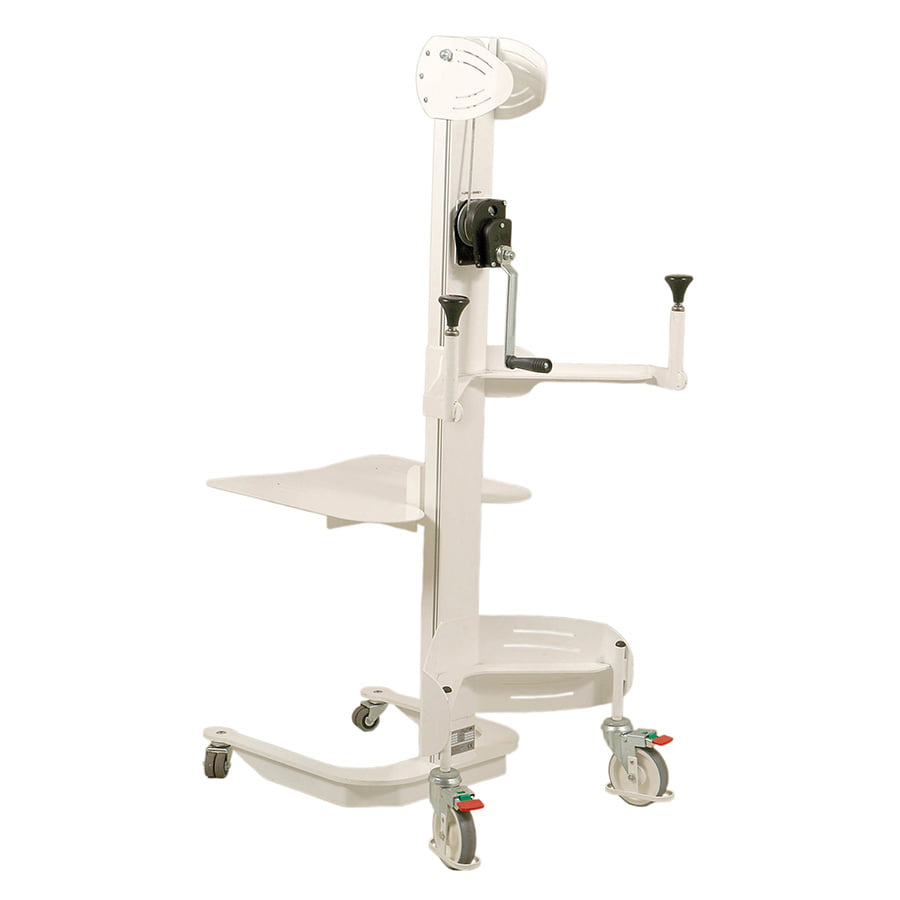

Manually Operated Server Lifter
EDP Europe’s range of manual server lifters and work positioners are available in powder coated mild steel or stainless steel. The “Easy Winch” system is used to raise and lower the load safely with the minimum of manual effort. These lifts are remarkably manoeuverable and extremely lightweight, all four wheels swivel and two are fitted with total stop brakes complete with toe guards. The laser cut design is not only very stylish but it is combined with high level stability and durability.
Features & Benefits
Features & Benefits
- “Easy Winch” system is used to raise and lower
the load safely and with a minimum of manual
effort. - Manoeuvrable and extremely lightweight.
- All four wheels swivel and two are fitted with total stop brakes complete with toe guards.
- 75 wire lift cable with 75 individual wires, min.
960Kg test break. - Lubricated for life cables guides.
- Deadman controls.
- Overload protection.
- No electrics.
- Cable guards.
- Operator protection.
- Finger trap guards in mast.
Part Numbers
Part Numbers
| Model | Capacity | Raised Ht. | Lowered Ht. | Platform Size |
|---|---|---|---|---|
| 49-WPM-85 | 85Kg | 1560mm (35U) | 140mm | 600 x 470mm |
| 49-WPM-140 | 140Kg | 1605mm (36U) | 130mm | 600 x 500mm |
| 49-WPM-200 | 200Kg | 1430mm (32U) | 130mm | 600 x 500mm |
