More About This Product
AisleLok Modular Containment is an out-of-the-box modular aisle containment solution. The AisleLok Modular Containment system comprises of three key components: Rack top baffles, end-of-aisle bi-directional doors and an adjustable rack gap panel.
AisleLok Rack Top Baffles
Part of the AisleLok Modular Containment out-of-a-box aisle containment solution
AisleLok Modular Containment is an out-of-the-box modular aisle containment solution that comprises of three key components: Rack top baffles, end-of-aisle bi-directional doors or sliding doors, and an adjustable rack gap panel.
Rack Top Baffles

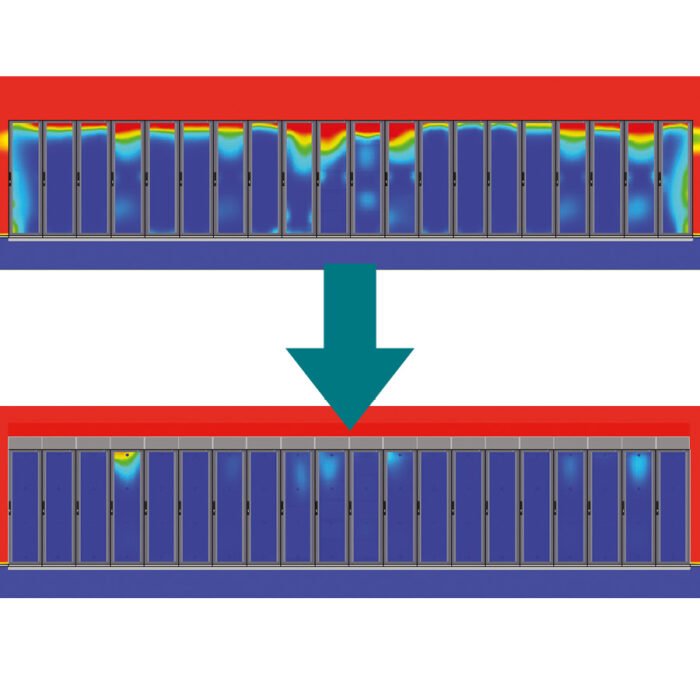

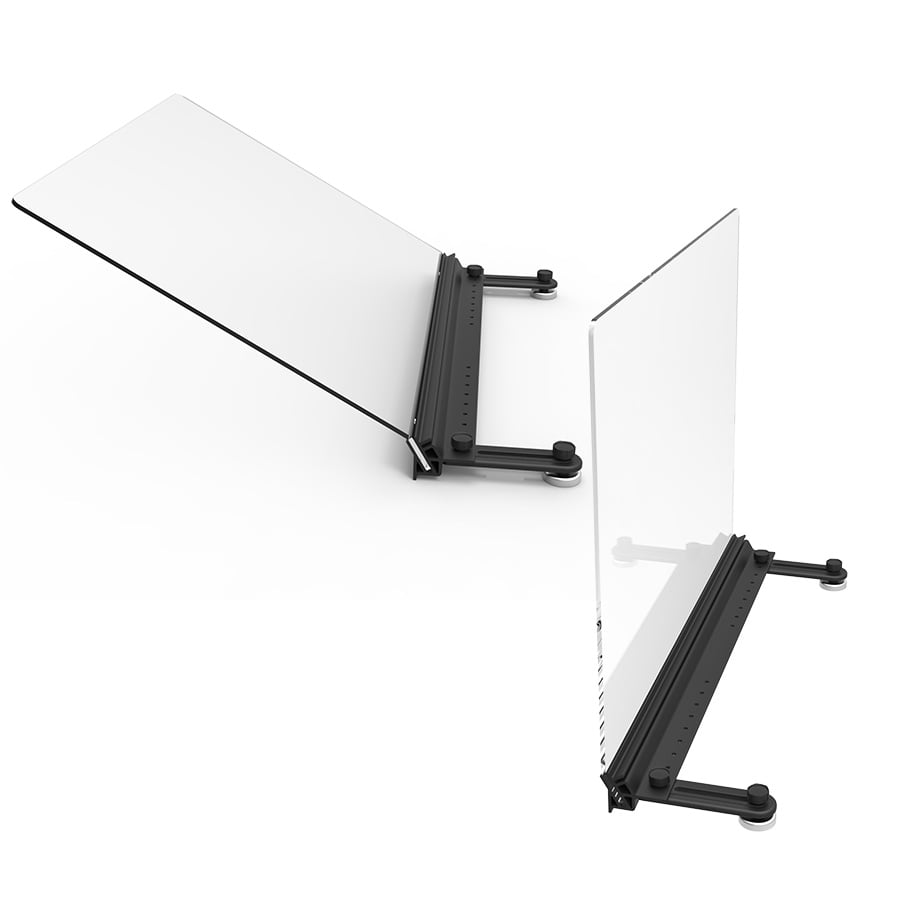

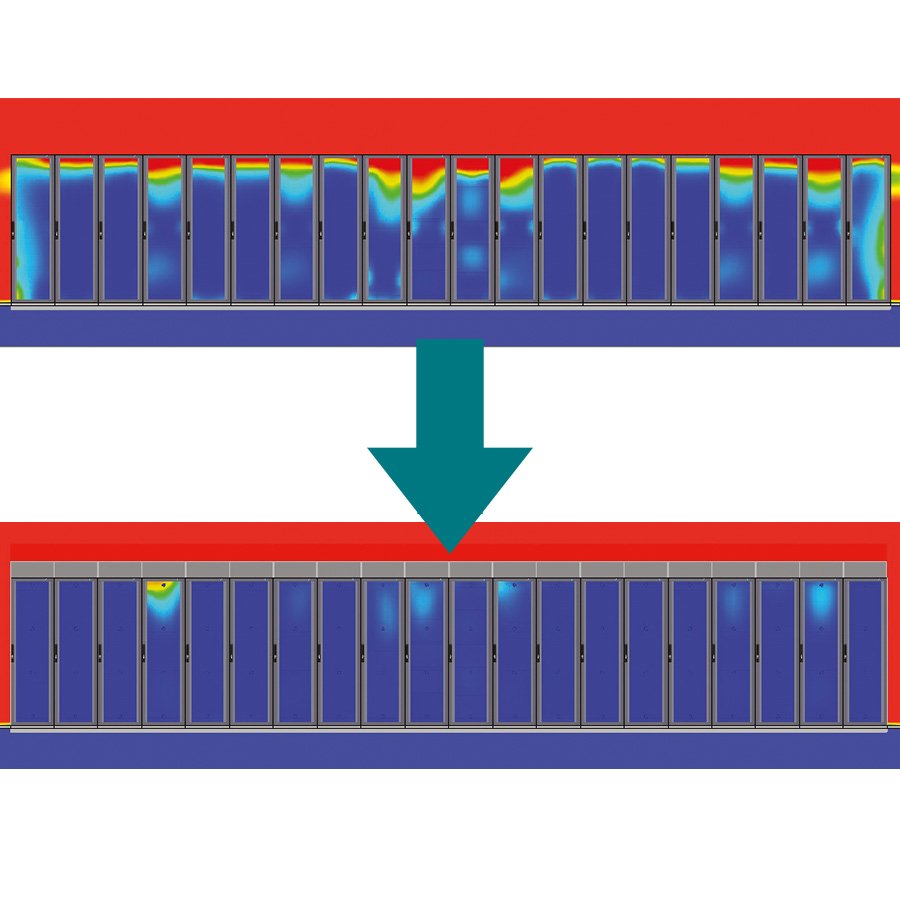

The AisleLok Modular Containment rack top baffles are made of clear polycarbonate and are attached to the top of the racks via a non-intrusive mounting system. The rack top baffles prevent hot exhaust air from wrapping over the tops of racks and mixing with cold air. There are two types of rack top baffle a vertical baffle for hot aisle containment applications and an angled one for cold aisle containment applications.
The video below demonstrates how easy and how quickly the AisleLok Rack Top Baffles are to install.
Features & Benefits
Features & Benefits
- The rack top baffles fit common rack widths, allowing for easy, off-the-shelf ordering.
- Can be installed directly out-of-the-box without any tools.
- Clear material construction provides maximum light transmissibility.
- Adjustable mounting tails can be positioned to fit the top of most 19” racks.
- Baffles can be re-configured to either a vertical or angular application as needed.
- Does not interfere with most overhead cabling configurations.
- UL94V flammability rated materials.

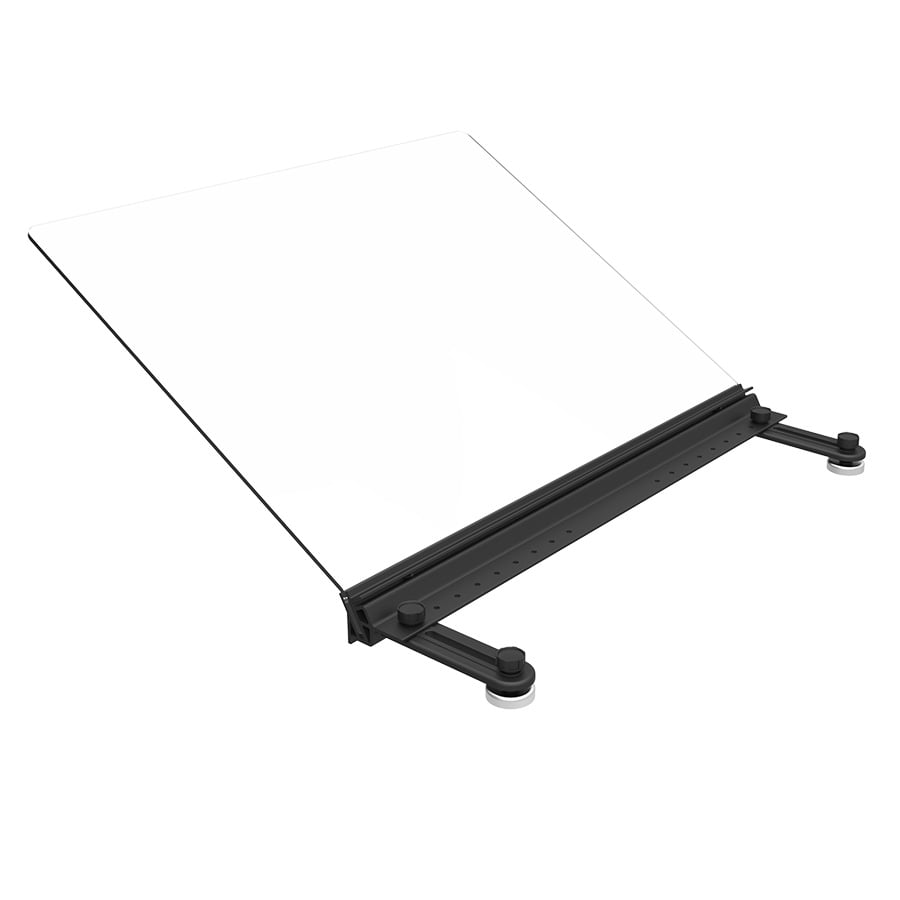

- Angular rack top baffles are angled at 30° from horizontal and designed for cold aisle containment.

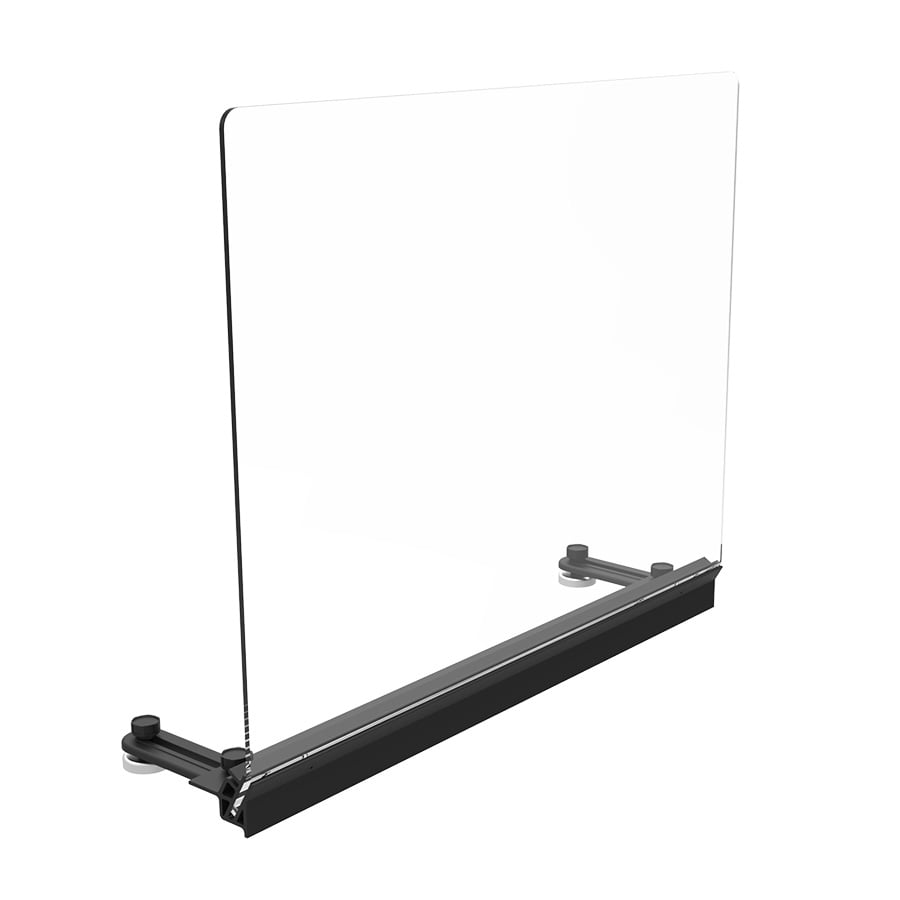

- Vertical rack top baffles are 90° from horizontal and designed for hot aisle containment.
- Both rack top baffles quickly and easily attach to the top of racks via a magnetic mounting system that allows a fully deployed aisle containment solution in minutes, with minimal disruption to the data centre or computer room.
- The simple installation and modular design allows the AisleLok Modular Containment rack top baffles to be easily removed, relocated, repositioned and reused as the needs of the Data Centre change.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 46-10160-24 | 600mm Rack Top Angle Baffle |
| 46-10161-24 | 600mm Rack Top Vertical Baffle |
| 46-10160-27.5 | 700mm Rack Top Angle Baffle |
| 46-10161-27.5 | 700mm Rack Top Vertical Baffle |
| 46-10160-30 | 750mm Rack Top Angle Baffle |
| 46-10161-30 | 750mm Rack Top Vertical Baffle |
| 46-10160-31.5 | 800mm Rack Top Angle Baffle |
| 46-10161-31.5 | 800mm Rack Top Vertical Baffle |
