More About This Product

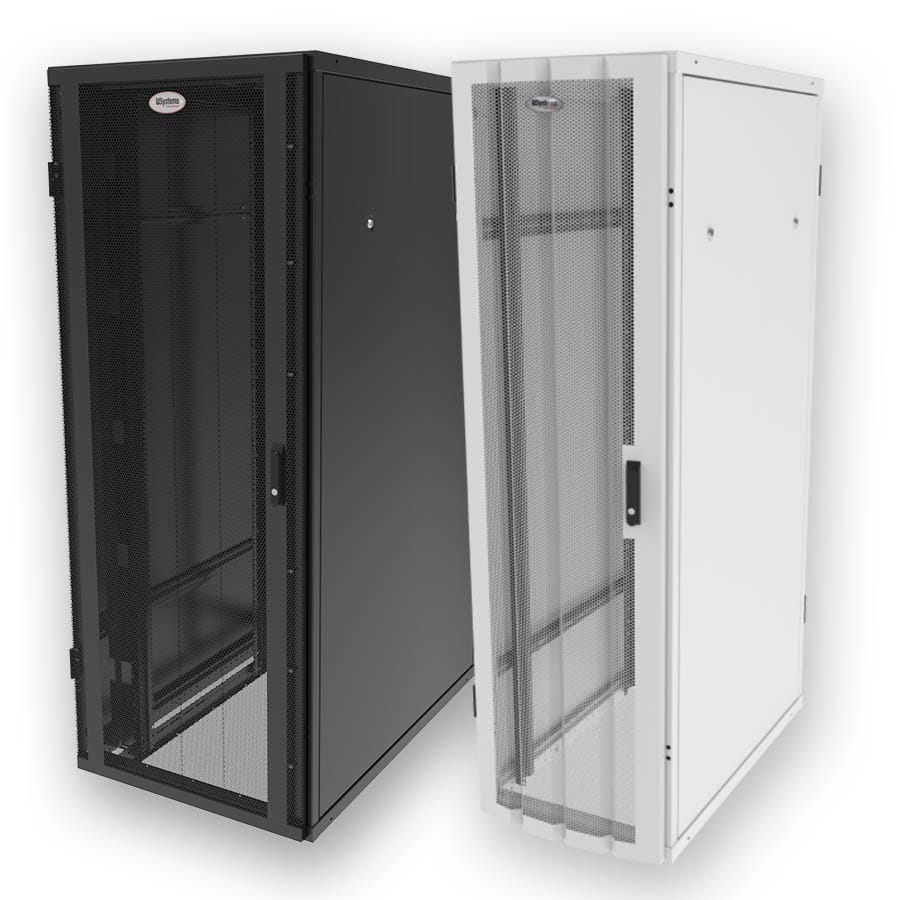

The USpace 4210 from USystems is part of the standard rack enclosure range. The 4210 offers a smart design that makes the rack suitable for use as a server rack or as a network rack.
USystems 4210 Server / Network Racks
The USystems 4210 is part of the standard rack enclosure range. The 4210 offers a smart design that makes the rack suitable for use as a server rack or as a network rack.
The USystems 4210 rack comprises of four corner posts, top and bottom end frame, depth support rails, front and rear 19” mounting angles, front infill panels (800mm wide racks only), locking side panels, cable entry and knock out top cover panel, a set of four transport castors and lockable swing handle front and rear doors (available in a combination of options: single, 4-point and 6-point locking). Doors are available in a number of styles to suit the rack’s application including AirTech Vented Standard Door, AirTech Vented Wardrobe Door (suitable for narrow aisles and can accommodate upgraded security locking) and Solid Steel Door.
Door security can be enhanced with key override, combination locks or the 4210 can be fitted with TZ SlideHandles that allow electronic remote access control with full audit trail.
Features & Benefits
Features & Benefits
- The USystems 4210 is a versatile server rack.
- 1,500Kg static load bearing with a dynamic load rating of 500Kg.
- Available in 5 heights (24U, 30U, 36U, 42U & 48U), 2 widths (600mm & 800mm) and 4 depths (600mm, 800mm, 1000mm & 1200mm) as standard.
- Rigid bolt construction.
- Finished in Black RAL 9005 as standard, with White RAL9003 as an option available on extended lead time.
- Standard vented door with option of vented wardrobe or solid steel doors.
- Multi depth mounting.
- Multi cable access through top and base.
- Left or right hand hinged doors.
- Cam locking side panels.
Specifications
Specifications
| Feature | Included as Standard |
|---|---|
| Colour (Cladding) | Black RAL9005 |
| Colour (Internals e.g. rails, cable tray) | Black RAL9005 |
| Rails | 19” Centred, set back 120mm (4.72″) with 720mm (28.3”) between rails |
| U Labels | Front Only as Standard (option to upgrade) |
| Frame (posts) | 4 Post |
| Base | Transport Castors |
| Side Panels | Cam locks |
| Doors | Standard flat mesh single (Options – Double mesh door, Glass door and Solid steel door) |
| Locking | Single doors have single point locking, wardrobe have 6 point locking and Single doors can have 4 point locking on request |
| Accessories | Earth kit, baying kit |
| Top Cover | Cable entry and top cover knocks out for retro-ftted fan trays |
Materials & Finish
- Frame – 1.2mm, 1.5mm & 2mm CR4 Steel
- AirTech, AirTech Wardrobe & Steel Doors – 1.0mm &1.2mm CR4 steel
- Side Panels – 1.0mm & 1.2mm CR4 steel
- Top Cover – 1.2mm CR4 steel
- Mounting Angles – 2.0mm CR4 steel
- Infills for 800w – 1.5mm CR4 steel
- Paint – Textured – Fine Structure Black (RAL9005) as standard. White (RAL9003) as option on extended lead-time. Other colour options on request.
Dimensions
| 4210 Rack ‘U’ Height | 24U | 30U | 36U | 42U | 47U | |
|---|---|---|---|---|---|---|
| Width | 600mm (23.62″) or 800mm (31.50″) | |||||
| Depth Options | 600mm (23.62″) or 800mm (31.50″) or 1000mm (39.37″) or 1200mm (47.24″ ) | |||||
| Depth Options with Cladding | 660mm (25.98″) or 860mm (31.50″) or 1060mm (41.73″) or 1260mm (49.61″) | |||||
| Frame Height | 1200mm (47.24″) | 1466mm (57.72″) | 1867mm (73.50″) | 1999mm (78.70″) | 2266mm (89.21″) | |
| Height on Transport Castors | 1260mm (49.61″) | 1526mm (60.08″) | 1927mm (75.87″) | 2059mm (81.06″) | 2326mm (91.57″) | |
| Height on Heavy Duty Castors | 1270mm (50.00″) | 1536mm (60.47″) | 1937mm (76.26″) | 2069mm (81.46″) | 2336mm (91.97″) | |
| Height on plinth | 1300mm (51.18″) | 1566mm (61.65″) | 1967mm (77.44″) | 2109mm (83.03″) | 2366mm (93.15″) | |
| Max rail space – plug in depth (PID) | 800mm Deep | 715mm (28.14″) | ||||
| 1000mm Deep | 915mm (36.02″) | |||||
| 1200mm Deep | 1115mm (43.89″) | |||||
| Static Load Rating | 1500Kg (3306.93lbs) | |||||
| Dynamic Load Rating* | 500Kg (1102.31lbs) | |||||
* Dynamic Load Rating is the total rolling mass of the rack and includes the rack frame, cladding and any fitted equipment and accessories and is subject to the load being evenly distributed at 20U height and below. Dynamic load relates to the movement of a rack within the same Data Centre on a smooth floor clear of obstacles. Not suitable for transportation on a vehicle when loaded to this weight.
